V201K5CJZ1
Product DescriptionVacuum Motor Contactor, Nema Size 5, 270 Amps, 3 Poles, 110/120V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 75 @ 200V, 100 @ 230V, 150 @ 380V, 200 @ 460V, 200 @ 575VThis...
- Z233497652313
Product Description
Vacuum Motor Contactor, Nema Size 5, 270 Amps, 3 Poles, 110/120V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 75 @ 200V, 100 @ 230V, 150 @ 380V, 200 @ 460V, 200 @ 575V

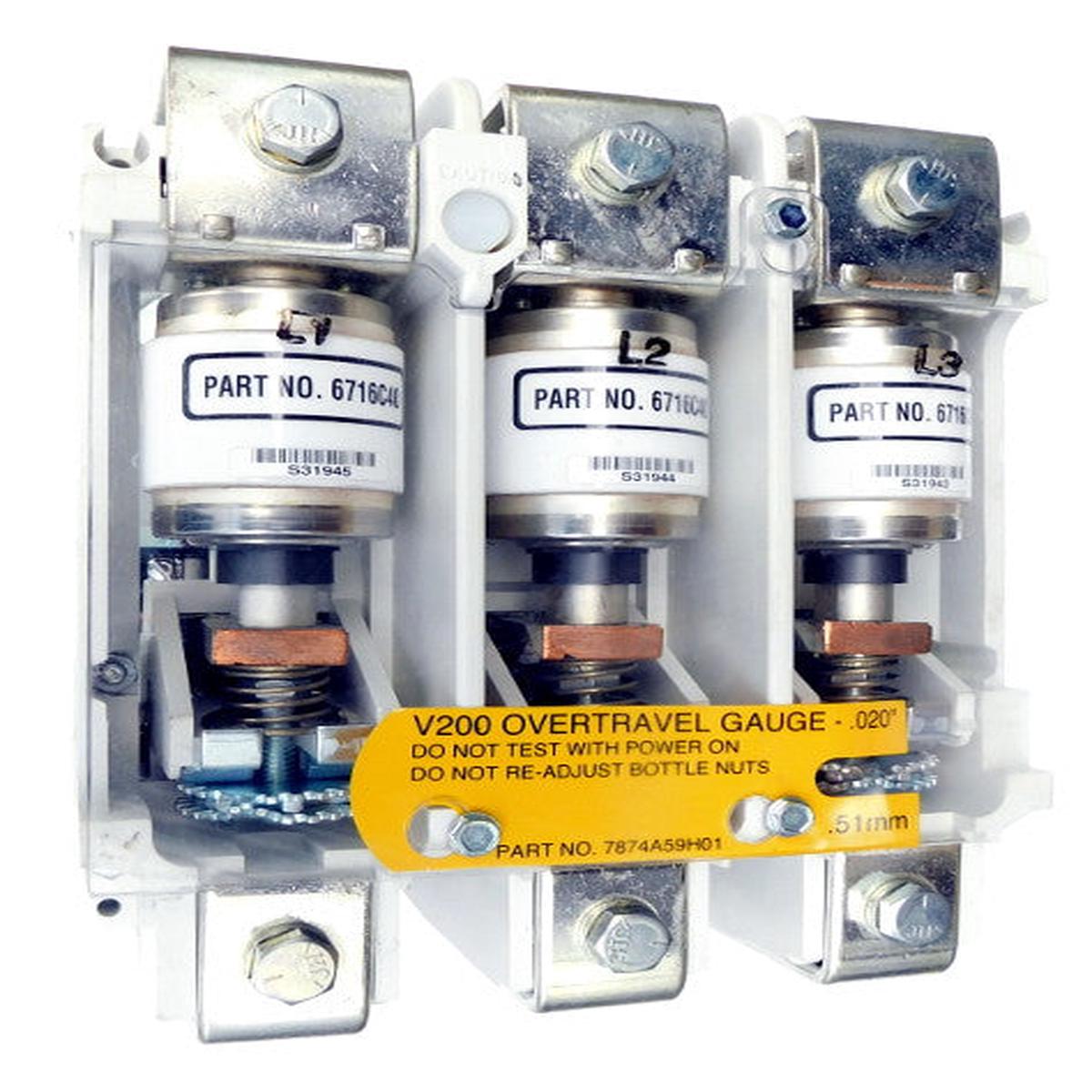

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 270 |
| Coil Voltage | 110/120 |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 5 |
| Enclosure | Open |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 75 HP @ 200V, 100 HP @ 230V, 150 HP @ 380V, 200 HP @ 460V, 200 HP @ 575V |
