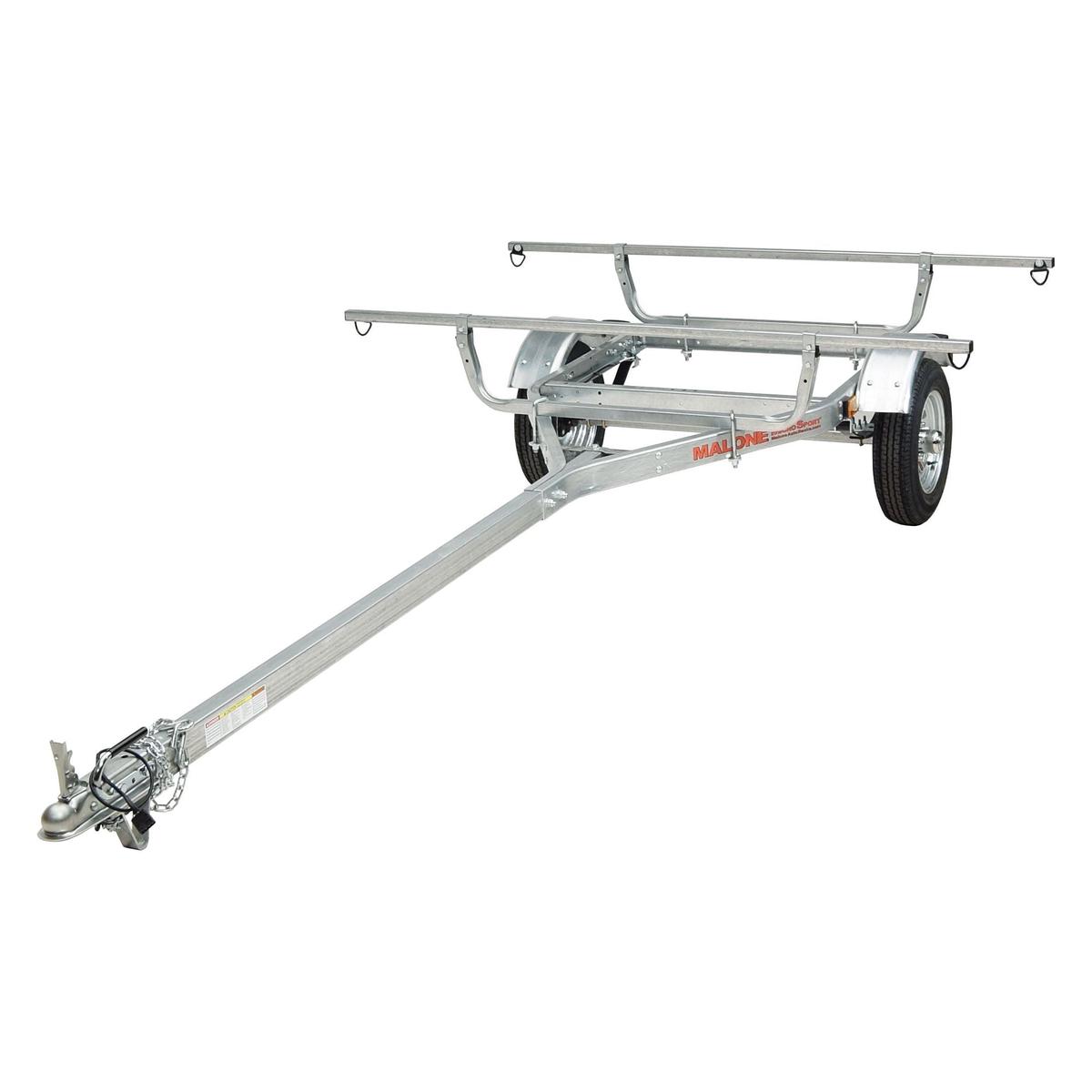

Malone MicroSport Trailer

The Malone MicroSport Trailer is the perfect combination of affordability, quality, and design reliability. Each kit includes: reinforced steel tongue, DOT approved LED submersible lighting, pre-wired electrical system, pre-fitted chassis components, 78″ steel load bars and 12″ galvanized slotted wheels. Assembles in approximately three to four hours with standard tools. Five Year Warranty. Made in the USA.

Features:

• Pre-assembled hubs for a clean and simple installation
• 12″ galvanized wheels with marine grade sealed bearings
• Reinforced steel tongue can transport boats up to 20′ in length
• 78 steel, 1 square load bars featuring d-ring tie-downs
• 11 gauge pre-galvanized steel construction for years of service
• Plug & Play Submersible LED Light Kit
• Five Year Limited Warranty
• Made in the USA

Specifications:

• Load Capacity: 800 lb / 20′ canoe or kayak
• Width (Without crossbars): 55″
• Length: 13′ 3″
• Weight: 197 lb. (Without accessories)
• Frame: Marine grade galvanized steel
• Hitch: 2″ Class II receiver
• Required Ball Mount Size for Vehicle Attachment: 2″
• Ball Height: 18″ From Ground – To Top Of Ball
• WRecommended Tire Pressure: 35 to 40 PSI
• Tongue Weight (Unloaded): 25 lb
• Cross Bar Spread (Adjustable): 44″ – 63″
• Height of Cross Bars from Ground: 30″

Whats In The Box:

• (2) 12″ High Speed Wheels
• (1) Reinforced Steel Tongue
• DOT Approved LED Lighting
• Pre-Tested Electrical System
• Pre-Fitted Chassis Components
• (1) Instruction Manual & Registration Documentation
• Assembly Required – Multi-Boxed Item – Includes 4 Cartons
