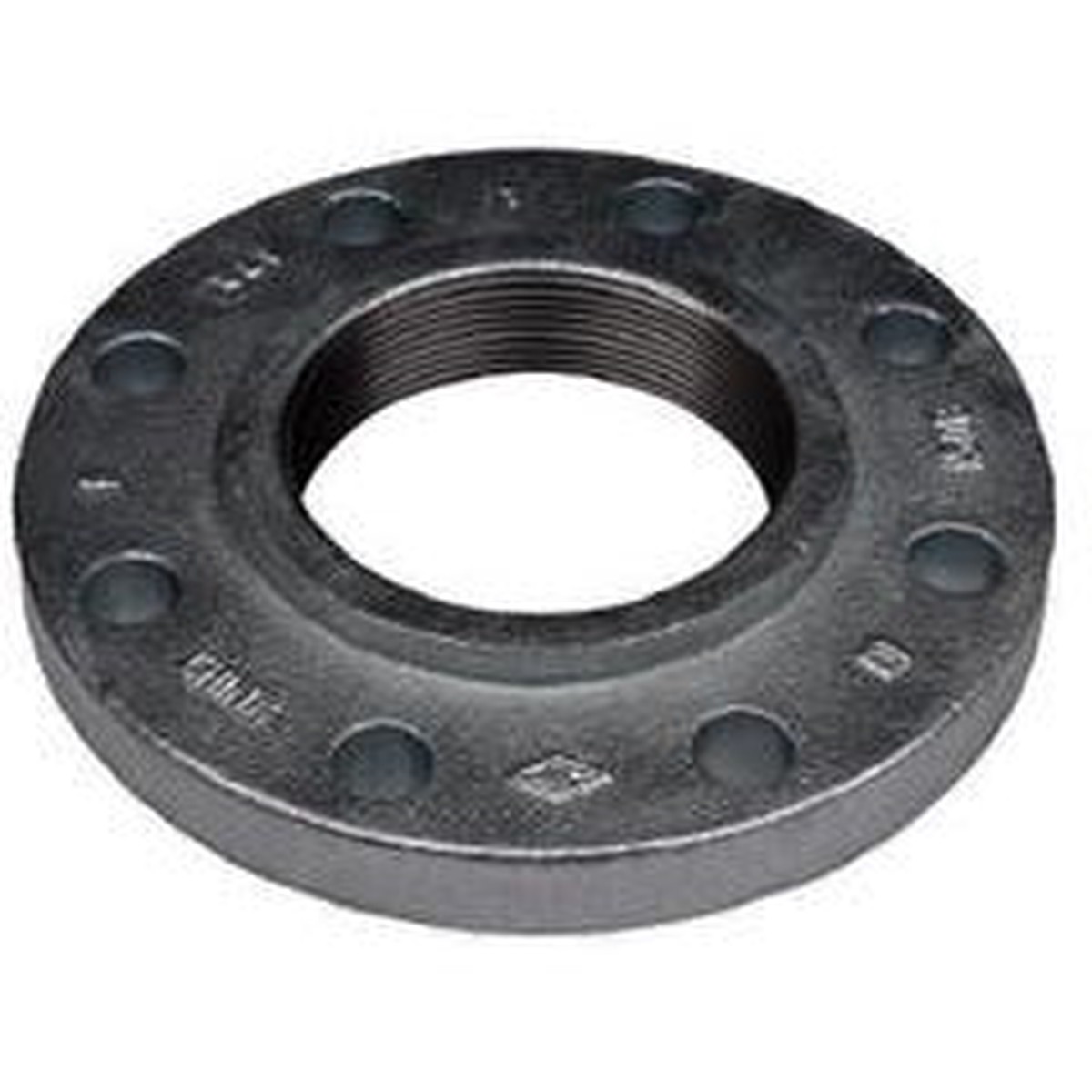

Ductile Iron Flange 8 150 Threaded
The Ductile Iron Flange 8 150 Threaded is a durable and high-strength valve designed to prevent backflow in piping systems. It is built to handle high pressures and is commonly used in waterworks, industrial, and HVAC applications. Made from high-quality...
- UQ7744023160
The Ductile Iron Flange 8 150 Threaded is a durable and high-strength valve designed to prevent backflow in piping systems. It is built to handle high pressures and is commonly used in waterworks, industrial, and HVAC applications. Made from high-quality iron for corrosion-resistant coating often epoxy-coated for longevity.
| Specification | Value |
|---|---|
| TYPE | Ductile Iron Flange Threaded |
| DESIGN | Flanged Ends easy bolted connection to flanged piping systems |
| MATERIAL | Iron for tronger than cast iron, resistant to impact and stress |
| MATERIAL CONSTRUCTION | Ductile Iron |
| WEIGHT (LBS) | 29.000 |
| ADDITIONAL INFORMATION | 11-3/4″ Hole Center to Center |
| BOLT HOLE DIAMETER | 7/8″ |
| CONNECTION SIZE 1 | 8″ |
| CONNECTION SIZE 2 | 8″ |
| CONNECTION TYPE | Threaded|Threaded |
| CONNECTION TYPE 1 | Threaded |
| CONNECTION TYPE 2 | Threaded |
| DIMENSION STANDARDS | ASME B16.42/AWWA C110, ASME B1.20.1 |
| DIMENSIONS | 13-1/2″ OD x 1-3/4″ H |
| FINISH | Black |
| FITTING TYPE | Flange |
| FLANGE THICKNESS | 1.12″ |
| NUMBER OF BOLT HOLES | 8 |
| PRESSURE CLASS | 150 lb |
| THREAD SIZE | #8-8 |
| UNIT WEIGHT KG | 13.0201 |
| APPLICATIONS | Ideal for Water & Wastewater Systems, HVAC Systems, Industrial Processes, Pumping Stations, Fire Protection Systems |
| BRAND | Midland Industries |
