CV10JN3
Product DescriptionVacuum Motor Contactor, Nema Size 6, 540 Amps, 3 Poles, 110/120V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 150 @ 200V, 200 @ 230V, 300 @ 380V, 400 @ 460V, 400 @ 575VThis...
- Z233497652927
Product Description

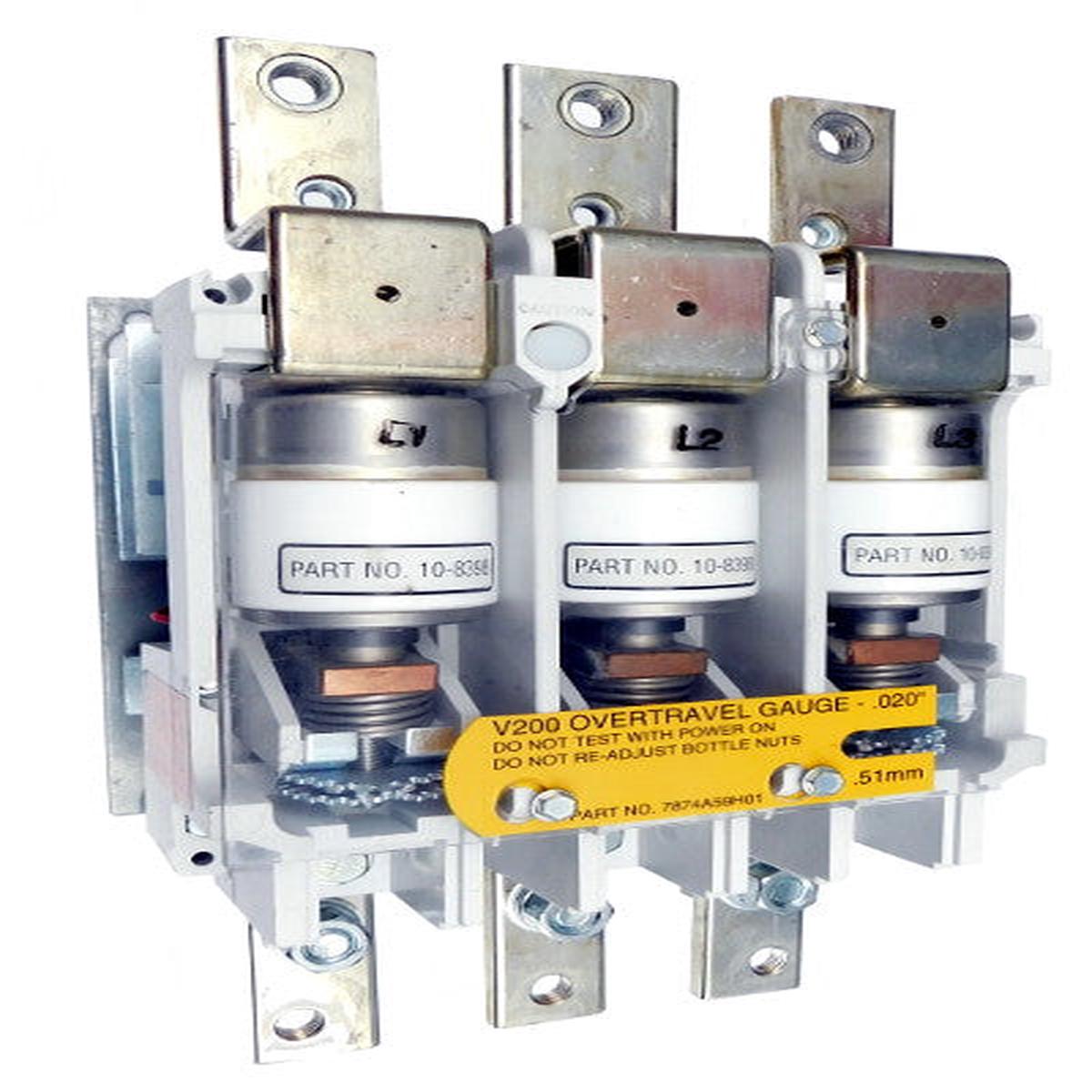

Vacuum Motor Contactor, Nema Size 6, 540 Amps, 3 Poles, 110/120V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 150 @ 200V, 200 @ 230V, 300 @ 380V, 400 @ 460V, 400 @ 575V
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 540 |
| Coil Voltage | 110/120V AC |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 6 |
| Enclosure | Open |
| Maximum Ratings | 150 @ 200V, 200 @ 230V, 300 @ 380V, 400 @ 460V, 400 @ 575V |
| Poles | 3 |
