CN15VN3A
Product DescriptionMagnetic Motor Contactor, A Series, NEMA Size 8, 1215 Amps, 3 Poles, 120V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 400 @ 208VAC, 450 @ 240VAC, 900 @ 480VAC, 900 @ 600VAC, No...
- Z233497652818
Product Description
Magnetic Motor Contactor, A Series, NEMA Size 8, 1215 Amps, 3 Poles, 120V AC Coil, Full Voltage 600VAC, Open Style No Enclosure, Non-Reversing, Max HP Ratings: 400 @ 208VAC, 450 @ 240VAC, 900 @ 480VAC, 900 @ 600VAC, No Terminals Standard

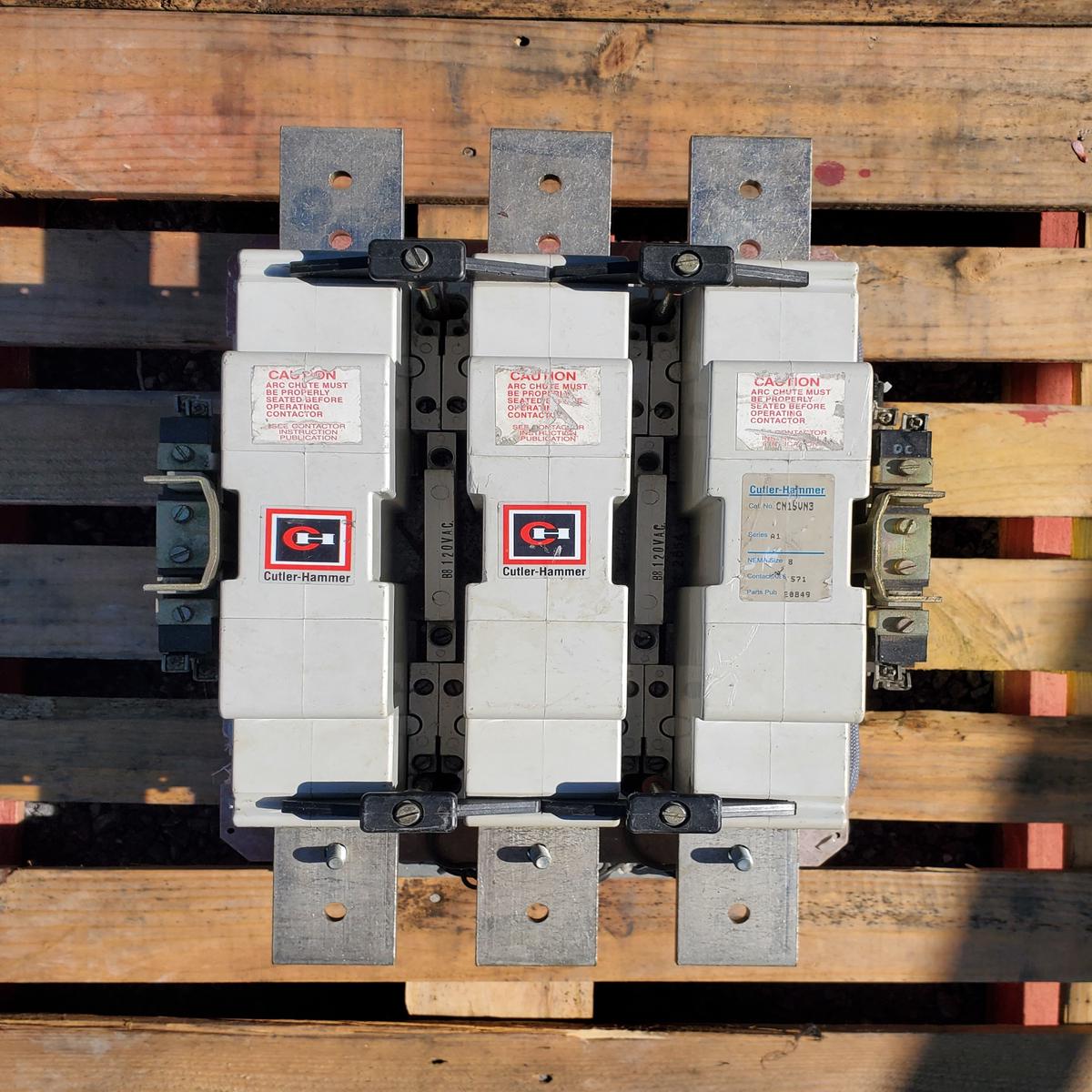

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 1215 |
| Coil Voltage | 120 |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 8 |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 400 HP @ 208VAC 450 HP @ 240VAC 900 HP @ 480VAC 900 HP @ 600VAC |
| Poles | 3 |
| Standard Lug Type | No Terminals |
There are no reviews yet.
