A9.25 – Square D Thermal Unit, Type S, Type A, Melting Alloy, 5.63 to 7.67 Amps, Plug-In Mount, Class 20 Trip

A9.25

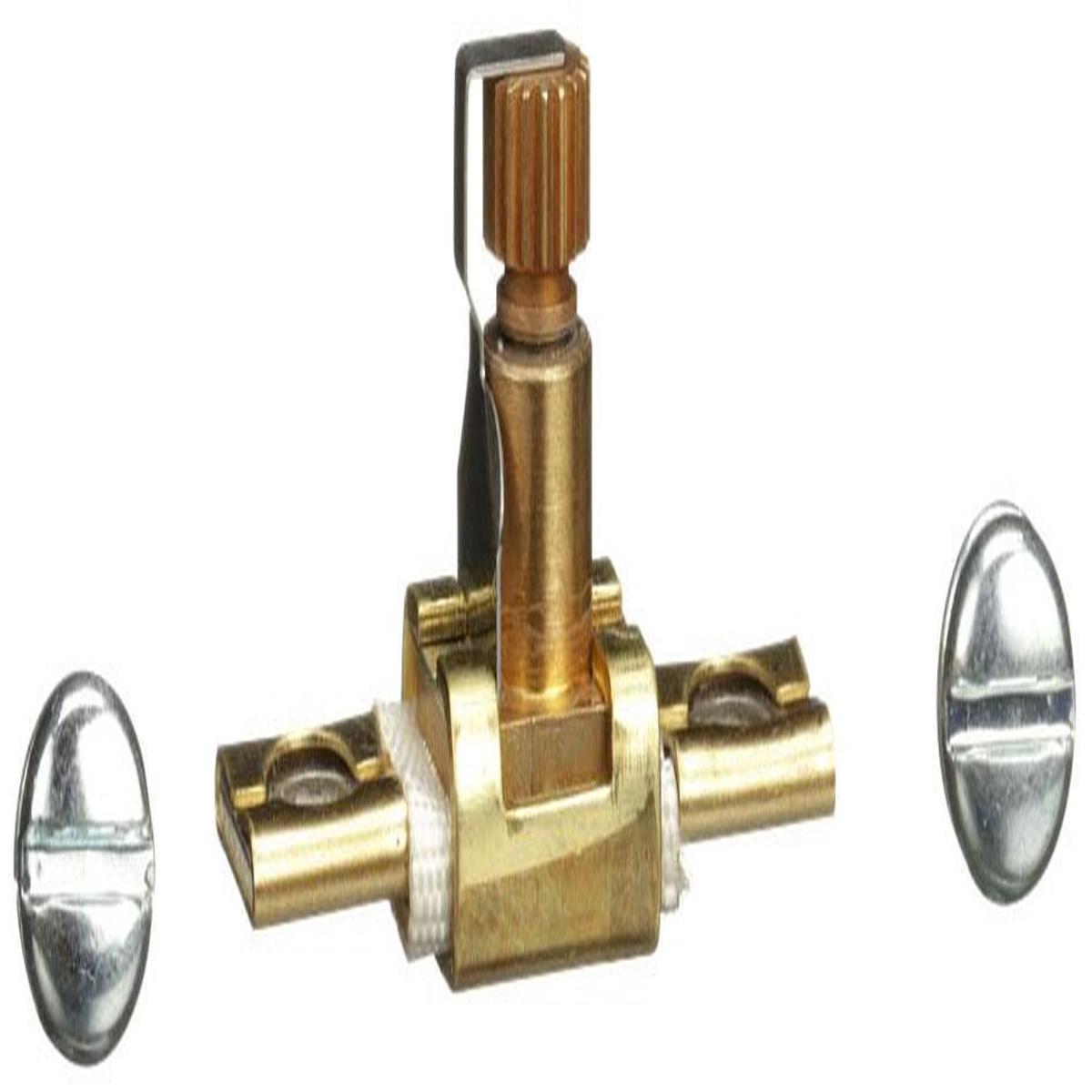

A9.25 is a Square D thermal unit designed for motor control applications with a melting alloy sensing method and Class 20 trip rating.

This thermal unit features a plug-in mounting type and provides motor overload protection by sensing motor current through a heater winding. It supports a full load current range of 5.63 to 7.67 amps and is rated for use in thermal overload relays and magnetic motor starters. The unit has a standard trip type and is suitable for environments up to 40 degrees Celsius.

• Manufacturer: Square D
• Part Number: A9.25
• Type: Thermal Unit, Type S, Type A
• Sensing Method: Melting Alloy
• Full Load Current Range: 5.63 to 7.67 Amps
• Trip Class: 20 (Standard Trip)
• Mounting Type: Plug-In
• Operating Temperature: Up to 40C
