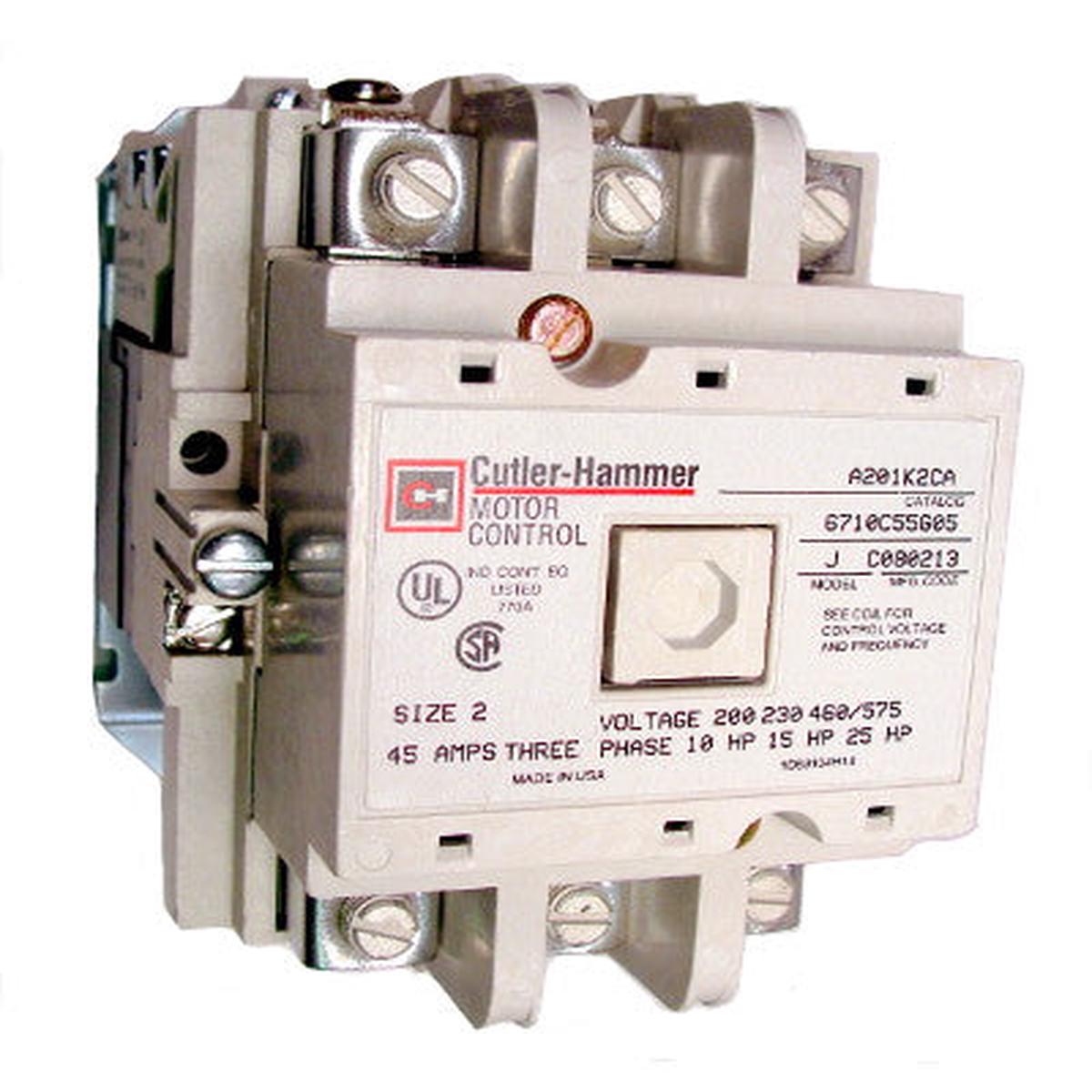

A201K2CB
Product DescriptionMagnetic Contactor, Nema Size 2, 45 Amps, 3 Poles, 208VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase,...
- Z233497650635
Product Description
Magnetic Contactor, Nema Size 2, 45 Amps, 3 Poles, 208VAC Coil, Full Voltage 600VAC, Open Style No Enclosure, Across the Line Starting and Stopping, Single Speed, Non-Reversing, Max HP Ratings: 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase, 15 @ 240V/3 Phase, 25 @ 480V/3 Phase, 25 @ 600V/3 Phase.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your motor starter in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Amperage | 45 |
| Coil Voltage | 208V AC Standard (505C806G02) |
| Phase | 3 |
| Voltage Max | 600 |
| Nema Size | 2 |
| Coil Type | Magnetic |
| Enclosure | Open |
| Reversing or Non-Reversing | Non-Reversing |
| Maximum Ratings | 7 1/2 @ 115V/1 Phase, 10 @ 208V/3 Phase, 15 @ 240V/3 Phase, 25 @ 480V/3 Phase, 25 @ 600V/3 Phase |
| Application | Full Voltage |
There are no reviews yet.
POPULAR PRODUCTS
9001-KA3 - Schneider Electric 10A 600VAC 1NC Contact Block for Motor Control
9001-KA3 9001-KA3 is a Schneider Electric contact block designed for...
VFAS3-2037P Toshiba VFD Drive 5hp 200-240V 18.7AMPS 3 Phase
Product Specs: Horsepower 5 Amps 18.7 VAC IN 200-240v 3ph...
3RT2027-4AP60 - Siemens 32A 3-Pole IEC Motor Contactor 220-240V AC 15kW 1NO+1NC
3RT2027-4AP60 3RT2027-4AP60 is a Siemens SIRIUS 3RT2 series 3-pole IEC...

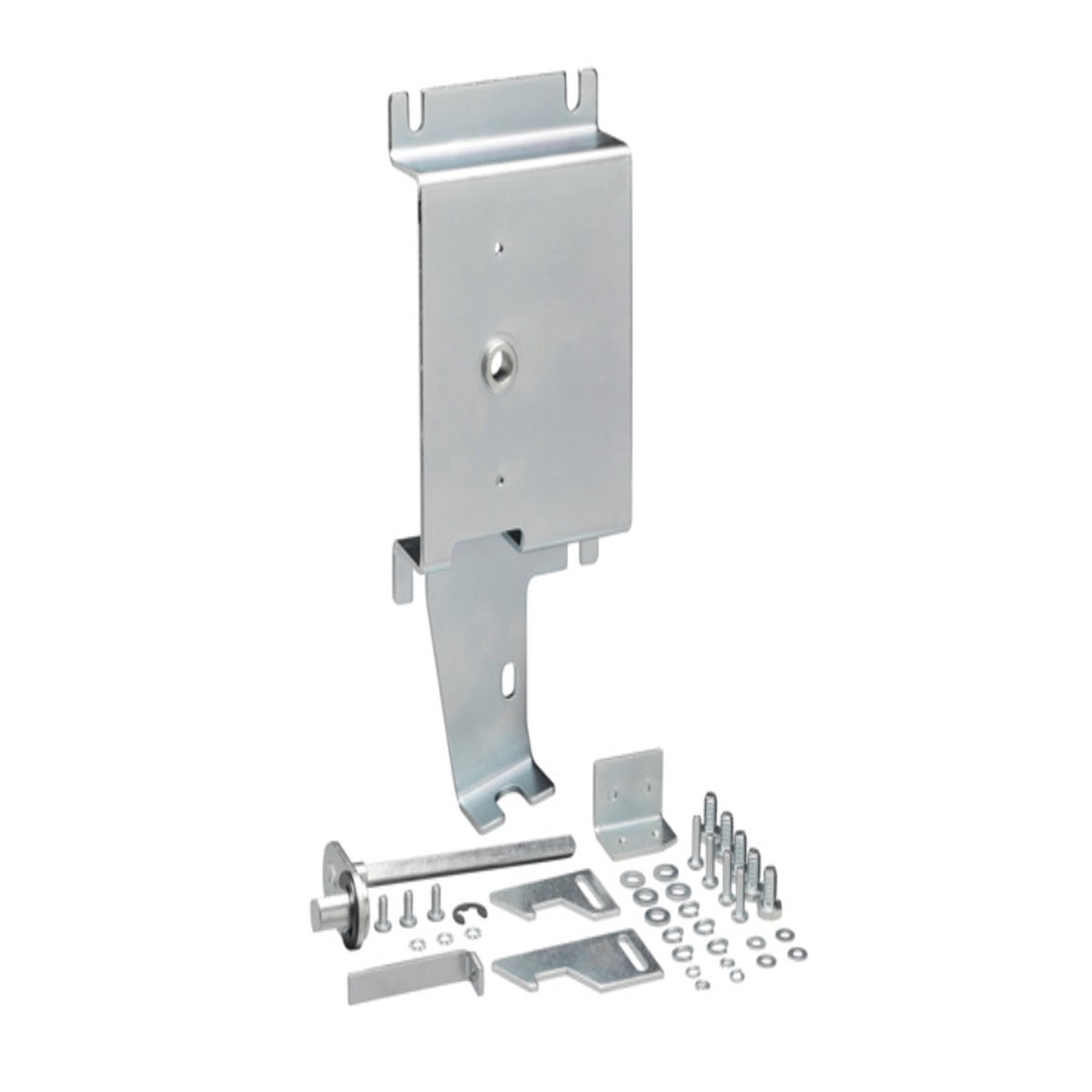

Lovato Electrical Support and Operating Mechanism - GMX30
