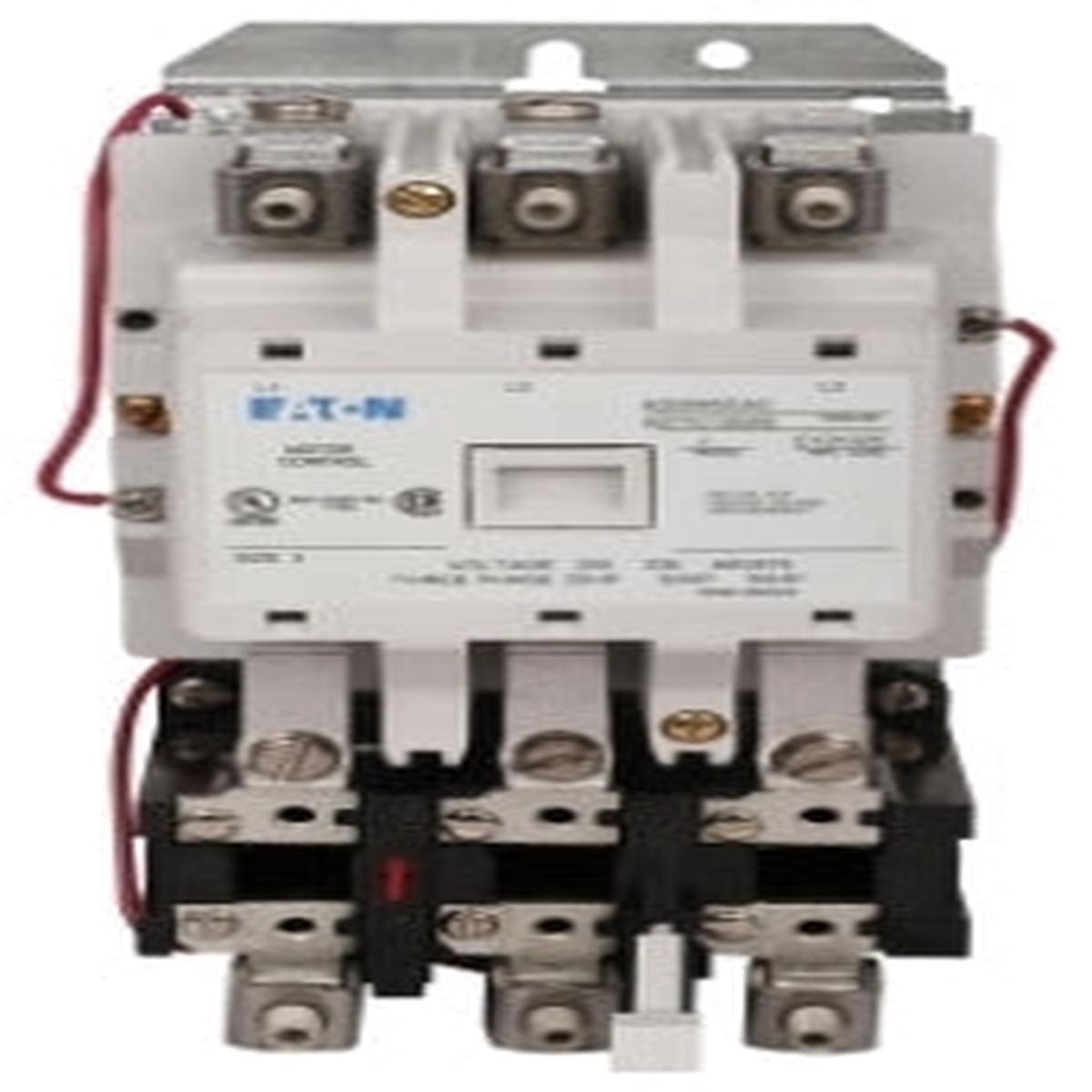

A200M3CACD – Cutler Hammer 90A 600VAC 3-Pole NEMA 3 Motor Starter Non-Reversing Coil 110/120V

A200M3CACD

A200M3CACD is a Cutler Hammer 3-pole motor starter designed for industrial motor control applications with a 90 amp continuous rating and 600VAC voltage capacity.This non-reversing NEMA Size 3 starter features a 110/120V coil voltage compatible with 50/60 Hz power, Type B bimetallic overload relay with manual reset, and vertical mounting screw termination. It supports full-voltage across-the-line starting and stopping of squirrel cage motors, providing reliable motor protection and ambient compensation.

• Amperage: 90 Amps continuous
• Voltage: 600 VAC maximum
• Poles: 3
• Mounting Type: Vertical screw termination
• Interrupt Rating: Not specified
• Series/Frame: A200 Series, NEMA Frame Size 3
• Trip Unit: Type B bimetallic overload relay, manual reset
• Coil Voltage: 110/120 VAC, 50/60 Hz
• Enclosure: Open
• Motor Power Rating: Up to 50 HP at 480/600V
• Certifications: Eaton/Cutler Hammer standard industrial certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A200M3CACD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 3

Product Data

• UPC : 786678232508
• GTIN : 00786678232508
• Country of Origin : Dominican Republic
• Dimensions : 6.75 in x 9.94 in x 4.63 in (Length/Depth x Height x Width)
• Weight : 115
• Certification : CSA Certified,UL Listed
