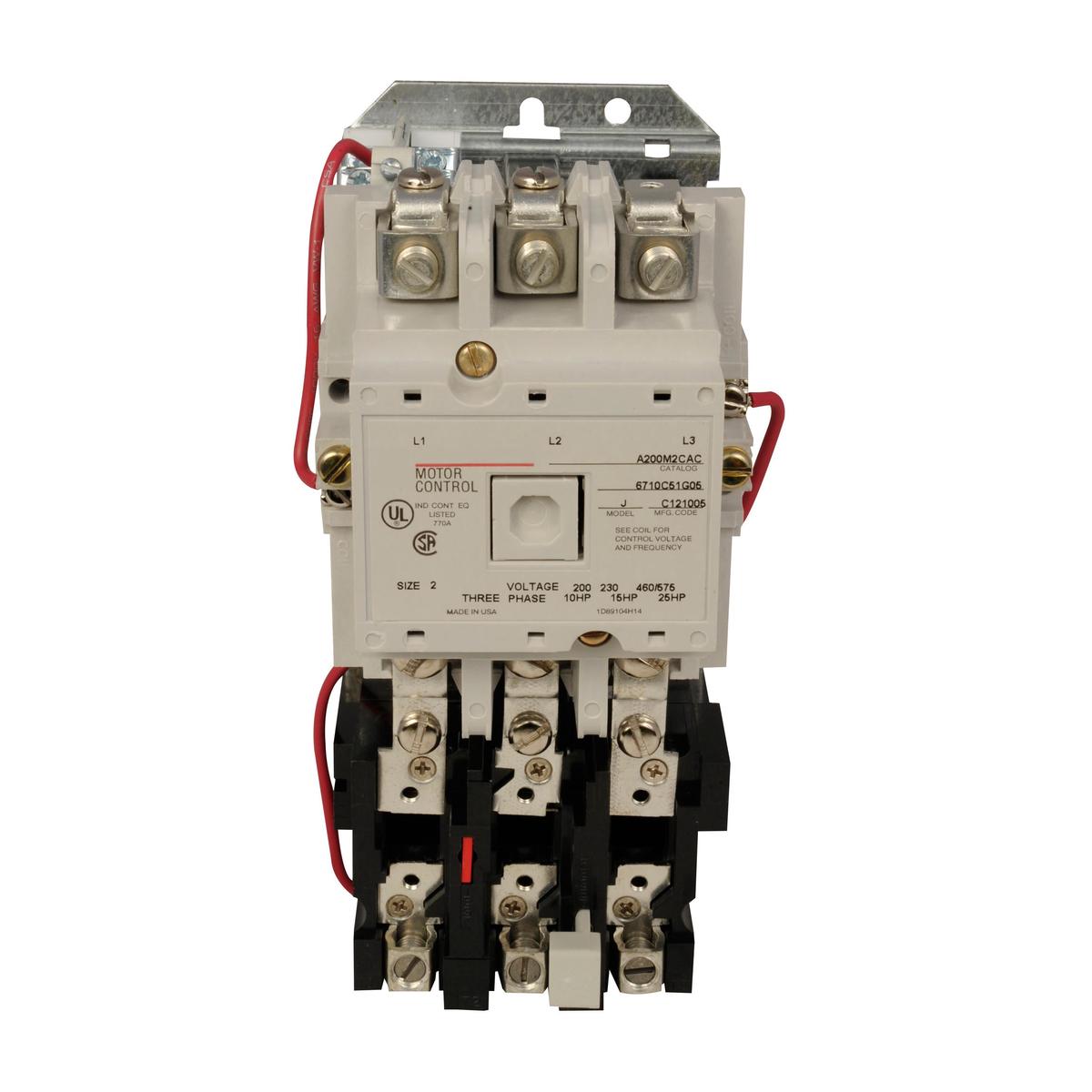

A200M2CE – Cutler Hammer 45A 600V 3-Pole Size 2 NEMA Motor Control Starter

A200M2CE

A200M2CE is a Cutler Hammer NEMA motor control starter designed for non-reversing motor applications with a 600V coil voltage and 45 ampere rating.

This motor control starter features a three-pole configuration and Size 2 frame, suitable for controlling motors up to 7-1/2 hp at 115V, 10 hp at 208V, 15 hp at 240V, and 25 hp at 480/600V. It is an open style, full voltage magnetic starter designed for reliable motor protection and control in industrial environments.

• Manufacturer: Cutler Hammer
• Part Number: A200M2CE
• Amperage: 45 Amps
• Voltage: 600 VAC coil voltage
• Poles: 3
• Size/Frame: Size 2
• Type: NEMA, Non-Reversing Motor Starter
• Horsepower Ratings: 7-1/2 hp at 115V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480/600V
• Enclosure: Open style
• Overload Relay: Type B standard
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A200M2CE
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : A200 Series
• Type : A200
• Voltage : 600
• Amperage : 45
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 600
• Coil Voltage Minimum : 600
• Nema Rating : 2

Product Data

• UPC : 782114796832
• GTIN : 00782114796832
• Dimensions : 4.94 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
• Weight : 3.3 lb
• Certification : UL Listed,CSA Certified
