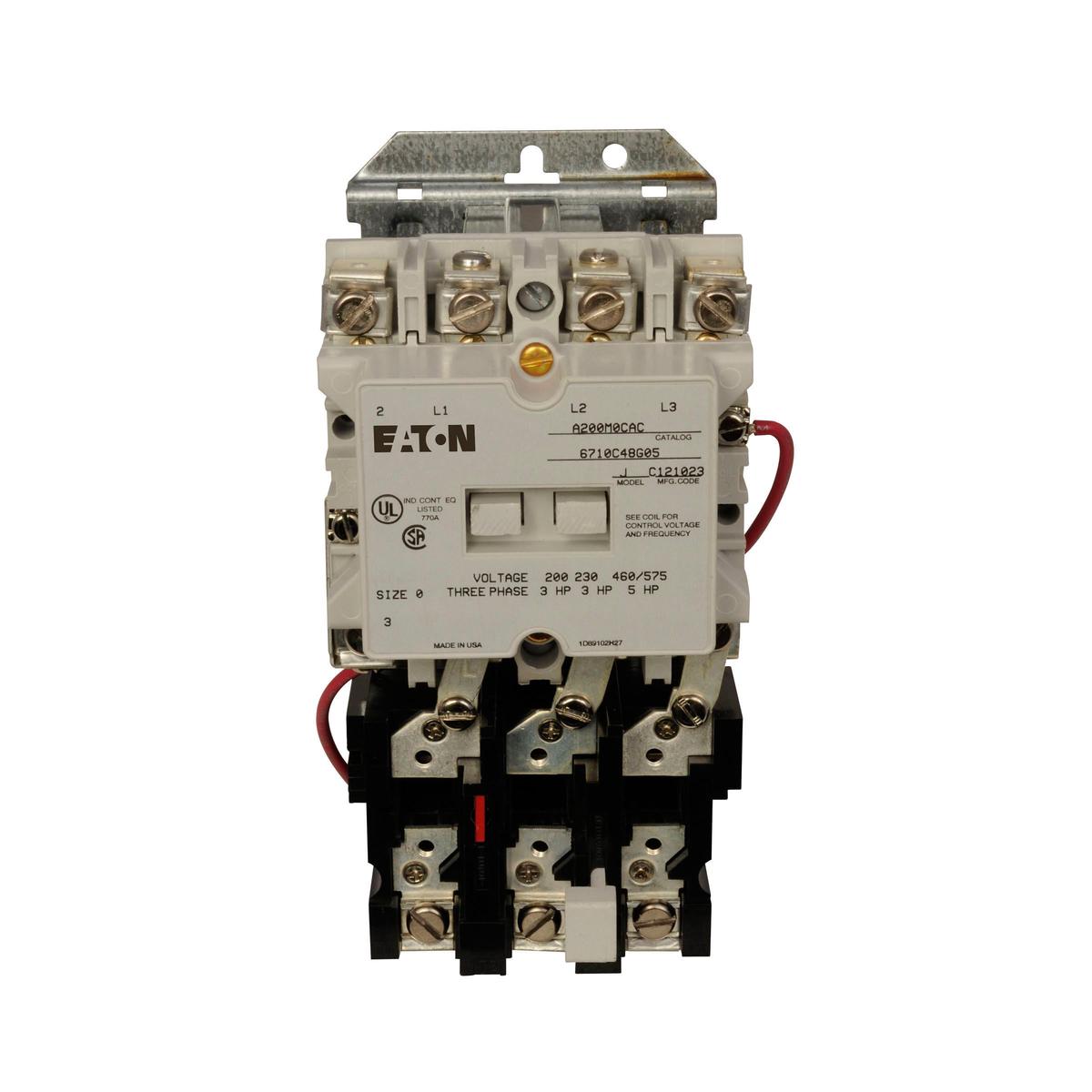

A200M0CX – Cutler Hammer A200 Non-Reversing Motor Control Starter 480V 18A 3P NEMA Size 0

A200M0CX

A200M0CX is a Cutler Hammer A200 series non-reversing motor control starter designed for reliable three-phase motor protection and control. This starter features a 480V coil, 18A current rating, and three-pole configuration in a NEMA Size 0 frame, suitable for a wide range of industrial applications. The A200M0CX provides robust motor starting and overload protection with a Type B three-pole overload relay. It is rated for 1 HP at 115V, 3 HP at 208-240V, and 5 HP at 480-600V, making it versatile for various motor loads. The starter is UL Listed and CSA Certified for safety and compliance.

• Part Number: A200M0CX
• Manufacturer: Cutler Hammer
• Series/Frame: A200, NEMA Size 0
• Amperage: 18A
• Voltage: 480VAC coil, 600VAC max
• Poles: Three Pole
• Mounting Type: Surface Mount
• Interrupt Rating: Not specified
• Trip Unit: Type B three-pole overload relay
• Phase: Three-phase
• Certifications: UL Listed, CSA Certified
• HP Rating: 1 HP @ 115V, 3 HP @ 208-240V, 5 HP @ 480-600V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A200M0CX
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : A200 Series
• Type : A200
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 480
• Coil Voltage Minimum : 480
• Nema Rating : 0

Product Data

• UPC : 786678231143
• GTIN : 00786678231143
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
• Weight : 2.6 lb
• Certification : UL Listed,CSA Certified
