A200M0CACD – Eaton A200 Series Non-Reversing Motor Control Starter 18A 120V 3P Open Enclosure

A200M0CACD

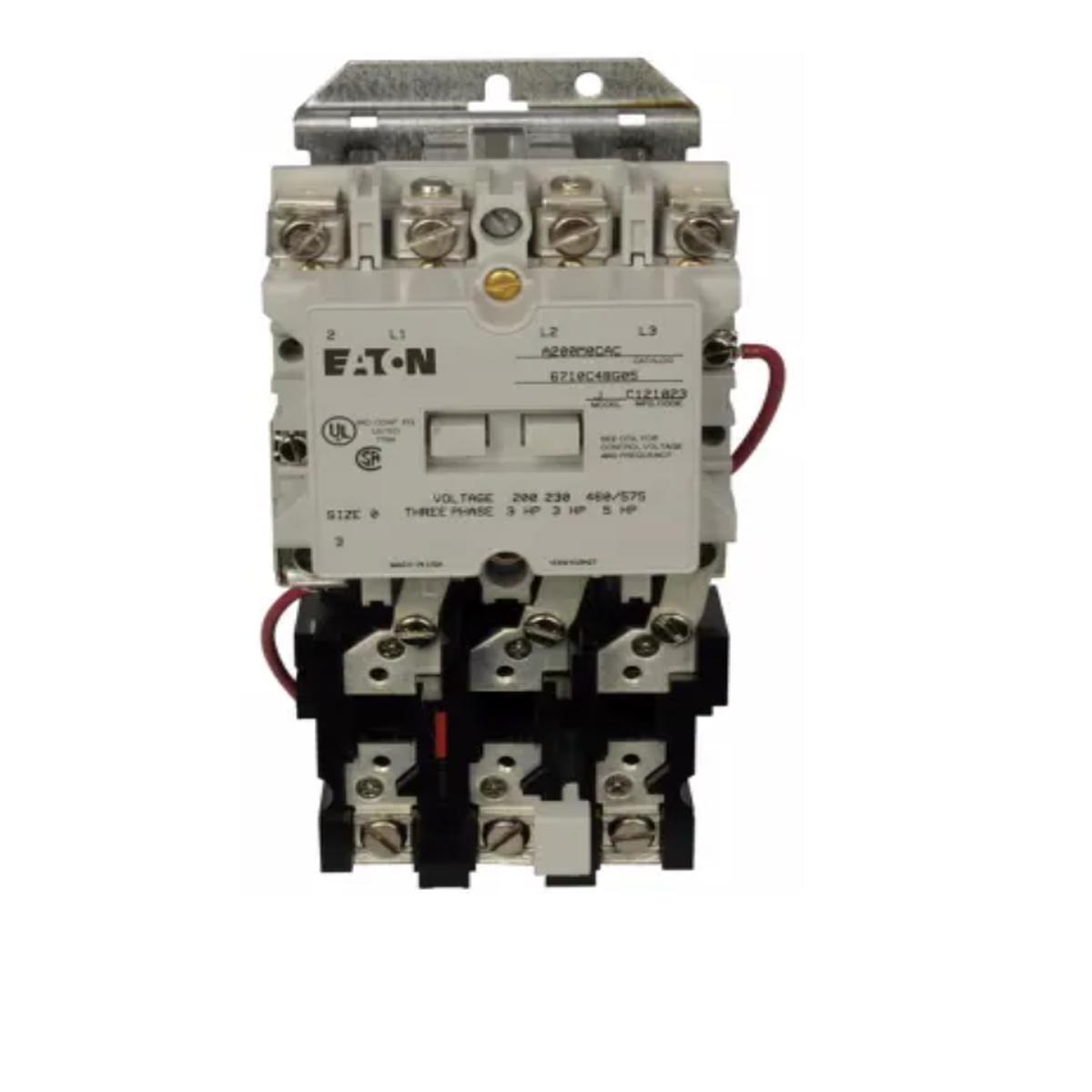

A200M0CACD is a non-reversing motor control starter from the Eaton A200 series, designed for reliable motor protection and control in industrial applications. This starter features a three-pole configuration, 18A amperage rating, and is suitable for use with motors up to 1 HP at 115V, 3 HP at 208-240V, and 5 HP at 480-600V. It is wired for separate control and includes an ambient compensated overload relay with auto-reset. The coil voltage is 110V/50Hz or 120V/60Hz, and the enclosure is open for easy access and installation.

• Part Number: A200M0CACD
• Manufacturer: Eaton
• Series: A200
• Starter Type: Non-Reversing
• Amperage: 18A
• Maximum Voltage: 120V
• Poles: 3
• Enclosure: Open
• Mounting: Surface
• Overload Relay: Ambient Compensated with Auto-Reset
• Coil Voltage: 110V/50Hz or 120V/60Hz
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A200M0CACD
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 18
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• UPC : 786678232447
• GTIN : 00786678232447
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 6.42 in x 3.31 in (Length/Depth x Height x Width)
• Weight : 35
• Certification : CSA Certified,UL Listed
