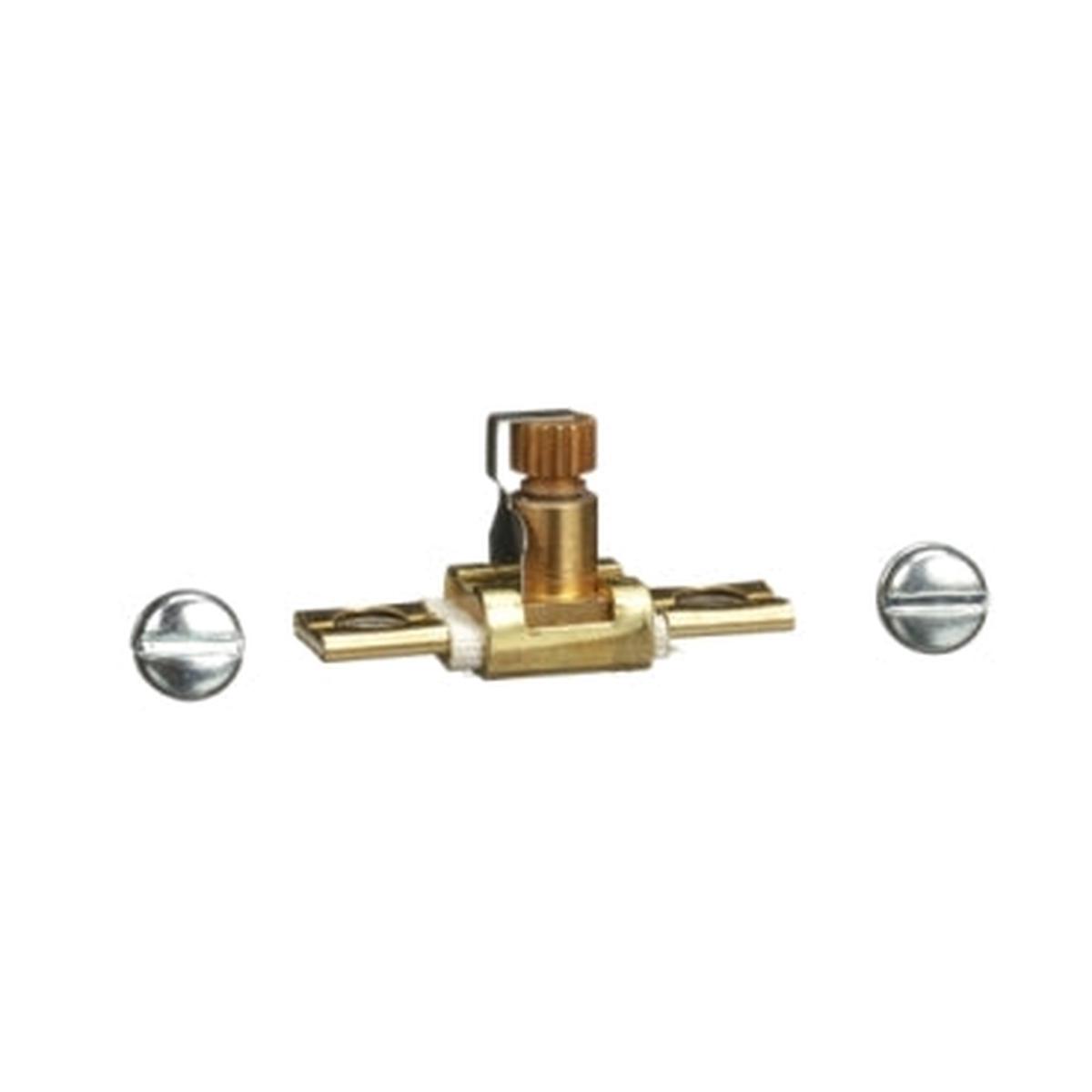

A14.8 – Square D Thermal Unit Overload Relay Heater 9.16-10.5A Plug-On Mount, Class 20, Type A, Melting Alloy

A14.8

A14.8 is a Square D thermal unit designed as an overload relay heater element for motor protection.This thermal unit features a plug-on mounting type and operates with a full load current range of 9.16 to 10.5 amps. It uses a melting alloy sensing method with a Class 20 trip rating, compatible with NEMA sizes 00-7 and supports motor control applications up to 600V. The unit is part of the A Series and provides reliable overload protection with a standard trip type.

• Manufacturer: Square D (Schneider Electric)
• Part Number: A14.8
• Amperage Range: 9.16-10.5 A
• Voltage Rating: Up to 600 V
• Mounting Type: Plug-On
• Trip Class: 20
• Type: A, Melting Alloy
• Series/Frame: A Series
• Overload Protection: Thermal Unit
• Compatible NEMA Sizes: 00-7
• Trip Type: Standard
• Application: Motor Control Overload Relay Heater

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A14.8
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Heater Element
• Family : A Series
• Type : A
• Full Load Amp Minimum : 9.16
• Full Load Amp Maximum : 10.5
• Full Load Amps : 9.96 to 10.80

Product Data

• UPC : 785901585473
• GTIN : 00785901585473
• Country of Origin : Mexico
• Dimensions : Depth 9.29 in (236 mm) Width 8.11 in (206 mm) Height 15.98 in (406 mm)
• Weight : 18.14
