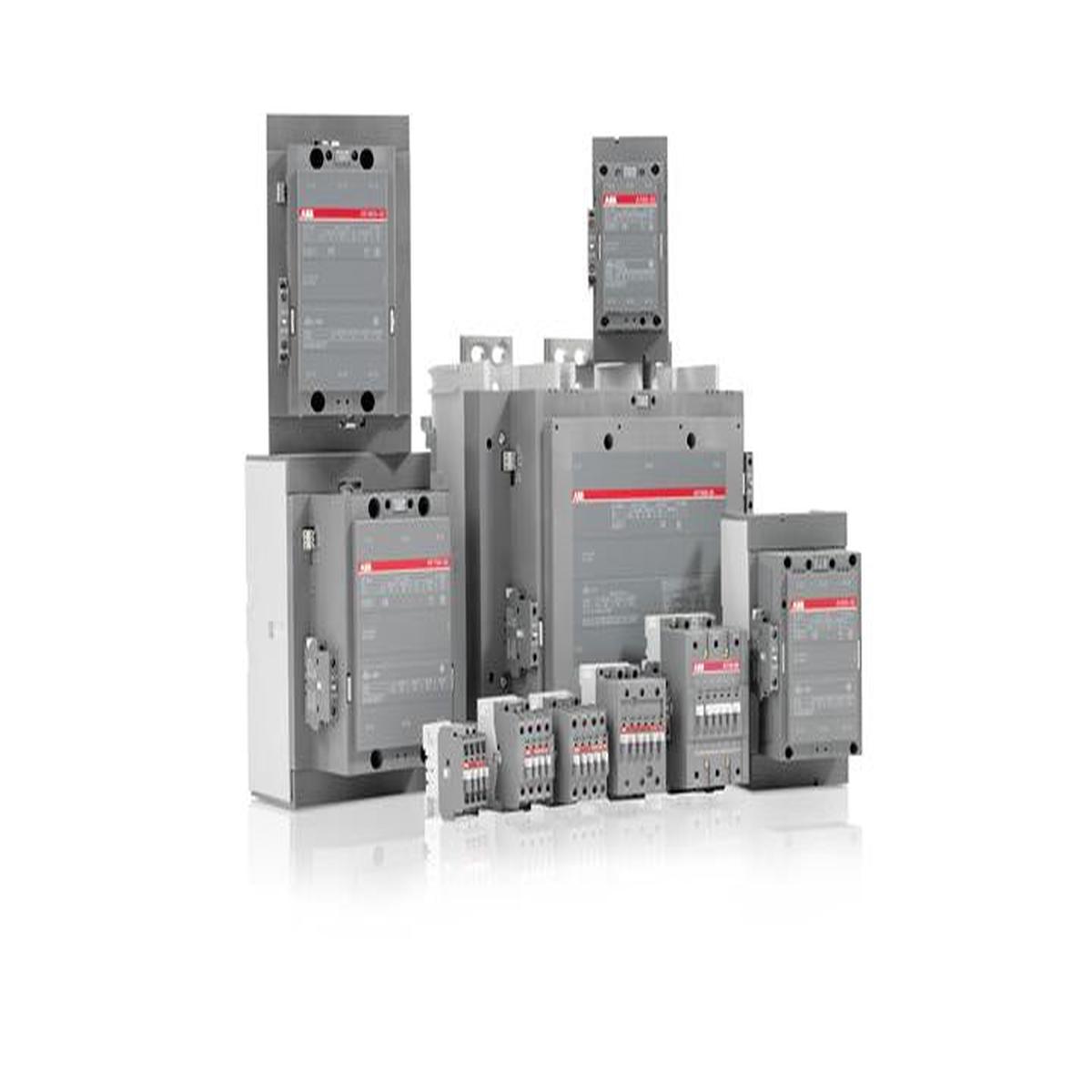

A110-30-11-84 – ABB 3 Pole 110A 110-120VAC 60Hz 110VAC 50Hz Coil DIN Rail/Panel Mount Contactor

A110-30-11-84

A110-30-11-84 is a 3-pole contactor designed for motor control and distribution applications, featuring a 110-120VAC coil and robust construction for reliable operation. This ABB A110-30-11-84 contactor is part of the A-Line series and is suitable for motor starting, isolation, bypass, and distribution applications up to 1000V. It offers a 110A motor current rating and is equipped with one normally open and one normally closed auxiliary contact. The contactor supports both DIN rail and panel mounting options, making it versatile for various industrial installations.

• 3 Pole configuration
• 110A motor current rating
• 110-120VAC coil voltage
• 60Hz and 50Hz operation
• DIN rail and panel mountable
• 1 NO and 1 NC auxiliary contacts
• A-Line series frame
• Suitable for applications up to 1000V
• Non-reversing across the line design
• General purpose rating: 140A
• Rated voltage: 600V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A110-30-11-84
• Manufacturer : ABB
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Contactor
• Family : A-Line
• Type : A110
• Voltage : 600
• Amperage : 110
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• UPC : 320500141585
• Dimensions : 148 mm x 123.5 mm
• Weight : 10
• Certification : BV, CB, CCC, CSA, CE, DNV
