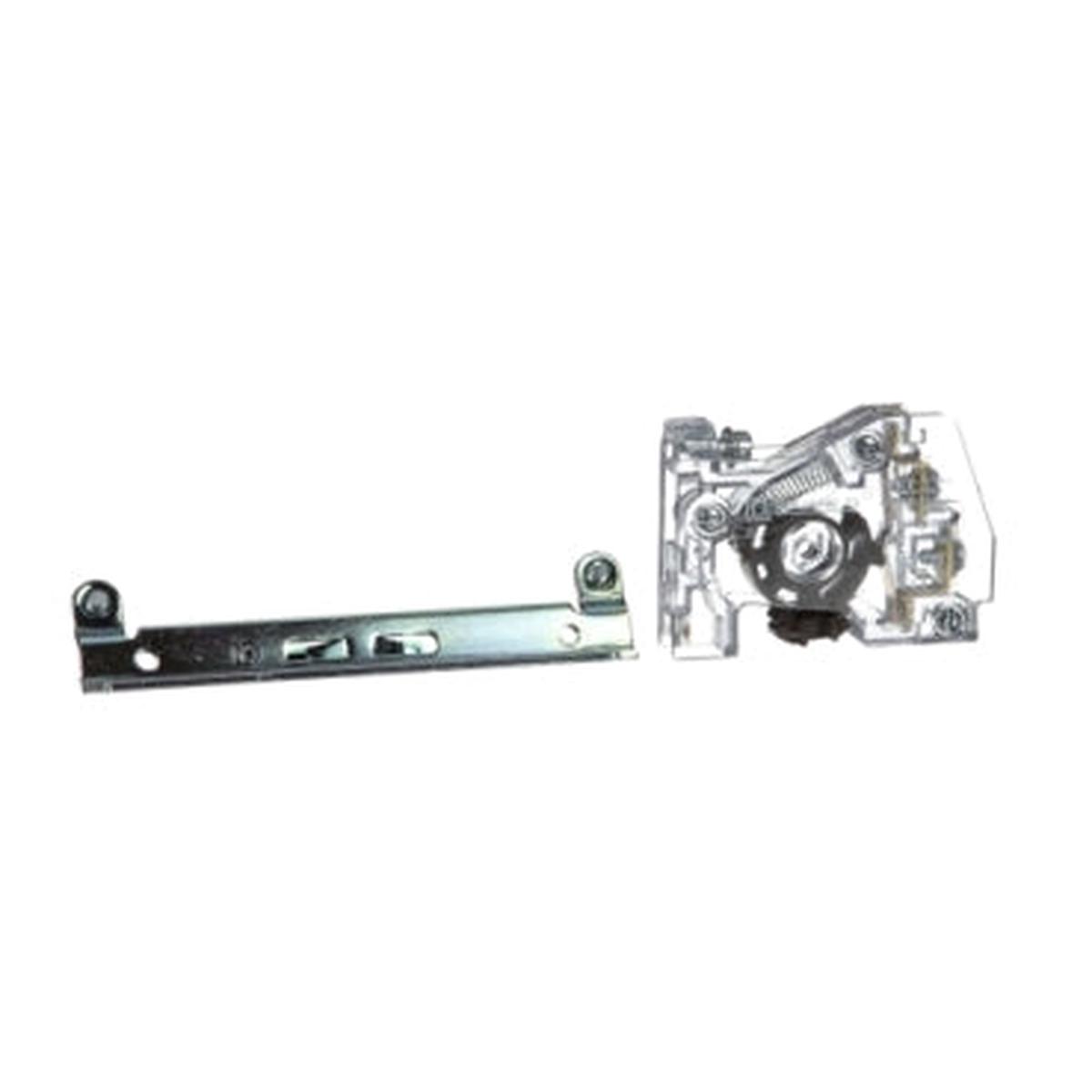

9999SX8 Square D Class 9999 Contactor And Motor Starter Auxiliary

9999SX8

9999SX8 is an auxiliary contact kit from Square D / Schneider Electric, designed for use with NEMA Size 00 through Size 7 Type S contactors and starters. It provides one normallyopen (NO) and one normallyclosed (NC) isolated contact, is field-convertible between NO and NC, and is rated for 10 amps at up to 600 V AC. Key Specifications:

• Part Number: 9999SX8
• Manufacturer: Schneider Electric / Square D
• Type: Auxiliary contact kit (1 NO + 1 NC, isolated)
• Current Rating: 10 A
• Voltage Rating: Up to 600 V AC
• Compatibility: NEMA Size 00-7 Type S contactors and starters
• Mounting Style: Side- or field-mounted auxiliary block

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9999SX8
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Family : Class 9999
• Type : SX
• Voltage : 600 AC
• Configuration : 1NO/1NC
• Aux Contacts : 1 NO + 1 NC
• Coil Voltage Maximum : 600V
• Coil Voltage Minimum : 600V
• Nema Starter Size : 3, 4, 00, 1, 6, 2, 5, 7, 0

Product Data

• UPC : 785901733539
• GTIN : 00785901733539
• Country of Origin : Mexico
• Dimensions : 3 in x 1-1/2 in
• Weight : 0.3
• Certification : CSA Approved, UL Recognized and Listed
