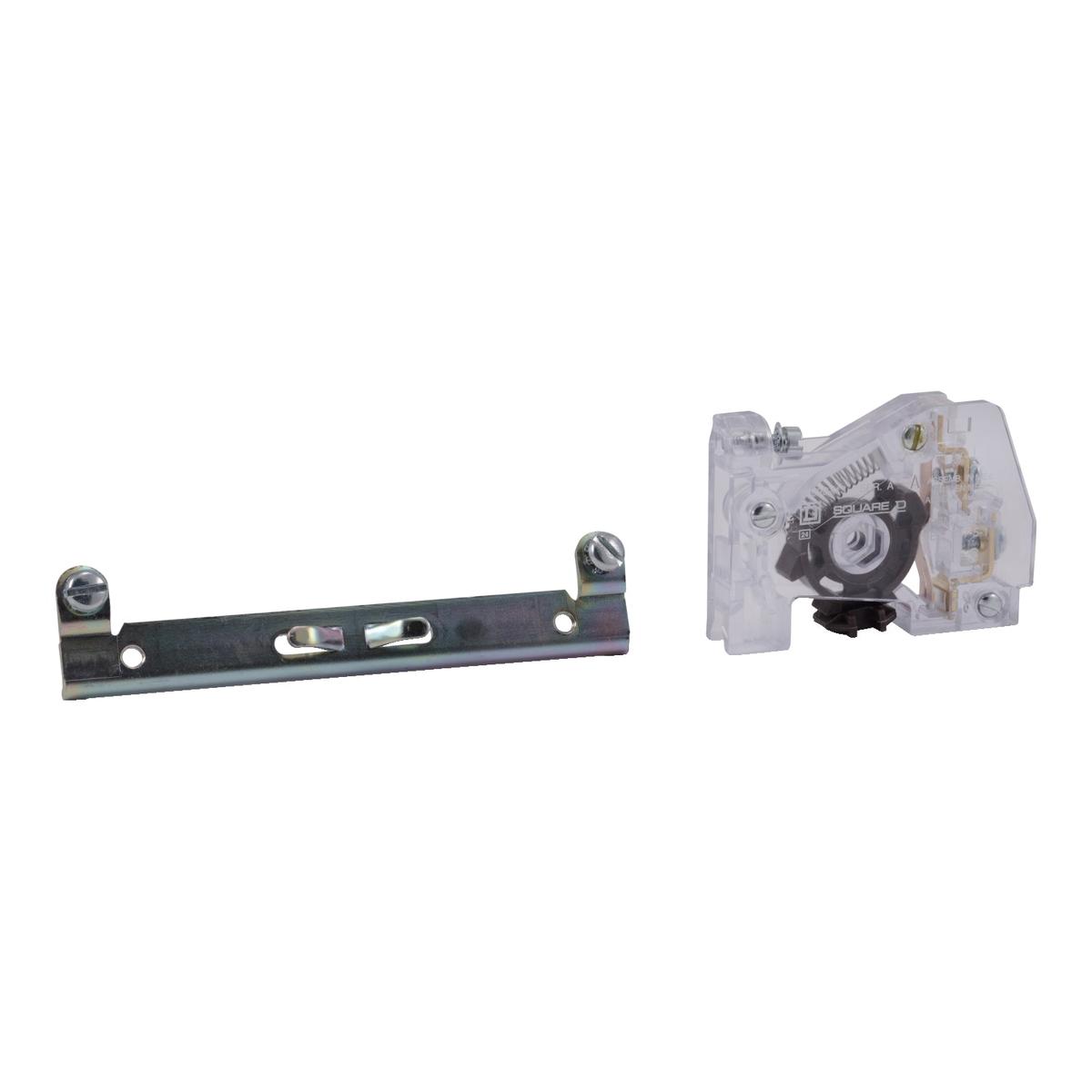

9999SX15 – Square D Auxiliary Contact Type S 1NO/1NC 600VAC

9999SX15

9999SX15 is a Square D Type S auxiliary contact module designed for use with NEMA motor starters and contactors in Class 8502, 8702, 8536, and 8736 series equipment. This auxiliary contact provides isolated, non-convertible external contacts for expanded control circuit functionality in motor control applications. The module features a robust design with replaceable parts for easy servicing and is suitable for NEMA sizes 00 through 7. Key Specifications

• Part Number: 9999SX15
• Manufacturer: Square D
• Contact Configuration: 1 NO + 1 NC (isolated)
• Voltage Rating: 600 VAC, 50/60 Hz
• Control Circuit Current: 6 A at 120 VAC inductive (UL 508)
• Control Circuit Current: 3 A at 240 VAC inductive (UL 508)
• Contact Type: External non-convertible
• Compatible NEMA Sizes: 00 to 7
• Compatible Contactor Series: Class 8502, 8702, 8536, 8736

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9999SX15
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor And Motor Starter Auxiliary
• Coil Voltage Maximum : 600V
• Coil Voltage Minimum : 600V

Product Data

• UPC : 785901721215
• Weight : 1
• Certification : CSA UL recognized UL listed
