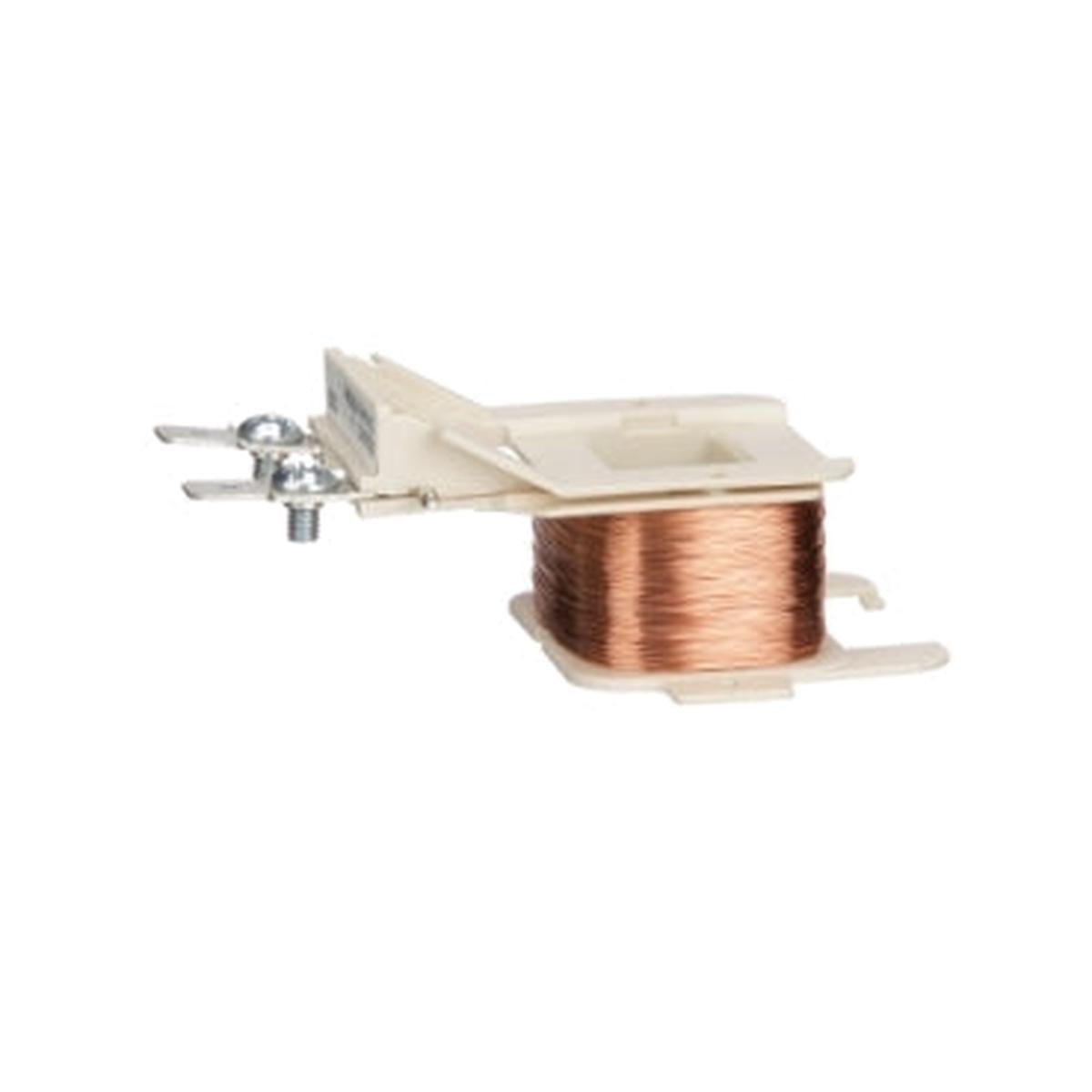

9998DA2V02 – Square D 120V AC Replacement Coil for 8910DPA Definite Purpose Contactors 2-3 Poles

9998DA2V02

9998DA2V02 is a replacement magnetic coil for Square D 8910DPA definite purpose contactors, designed for 120V AC operation. This coil is compatible with 2-pole and 3-pole contactors in the 8910DPA series, providing reliable switching performance for industrial motor control applications. The 9998DA2V02 coil features a compact design and is engineered for use in demanding environments. It delivers consistent operation with a sealed power consumption of 10 VA and an inrush power of 109 VA. The coil is suitable for both 50 Hz and 60 Hz power systems, ensuring compatibility across a wide range of installations.

• Part Number: 9998DA2V02
• Manufacturer: Square D
• Coil Voltage: 120V AC (110V AC at 50 Hz)
• Compatible Series: 8910DPA Definite Purpose Contactors
• Poles: 2 and 3 pole
• Mounting Type: Standard contactor mounting
• Dimensions: 3.27 in H x 2.56 in W x 3.67 in D
• Inrush Power: 109 VA
• Sealed Power Consumption: 10 VA
• Operating Frequency: 50/60 Hz
• Application: Motor control, industrial switching
• Country of Origin: China

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9998DA2V02
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Magnetic Coil
• Family : Class 9998
• Type : DA
• Voltage : 120
• Coil Voltage Maximum : 120 VAC

Product Data

• UPC : 785901081449
• GTIN : 00785901081449
• Country of Origin : China
• Dimensions : 2.56 in x 3.27 in
• Weight : 0.17
• Certification : NEMA
