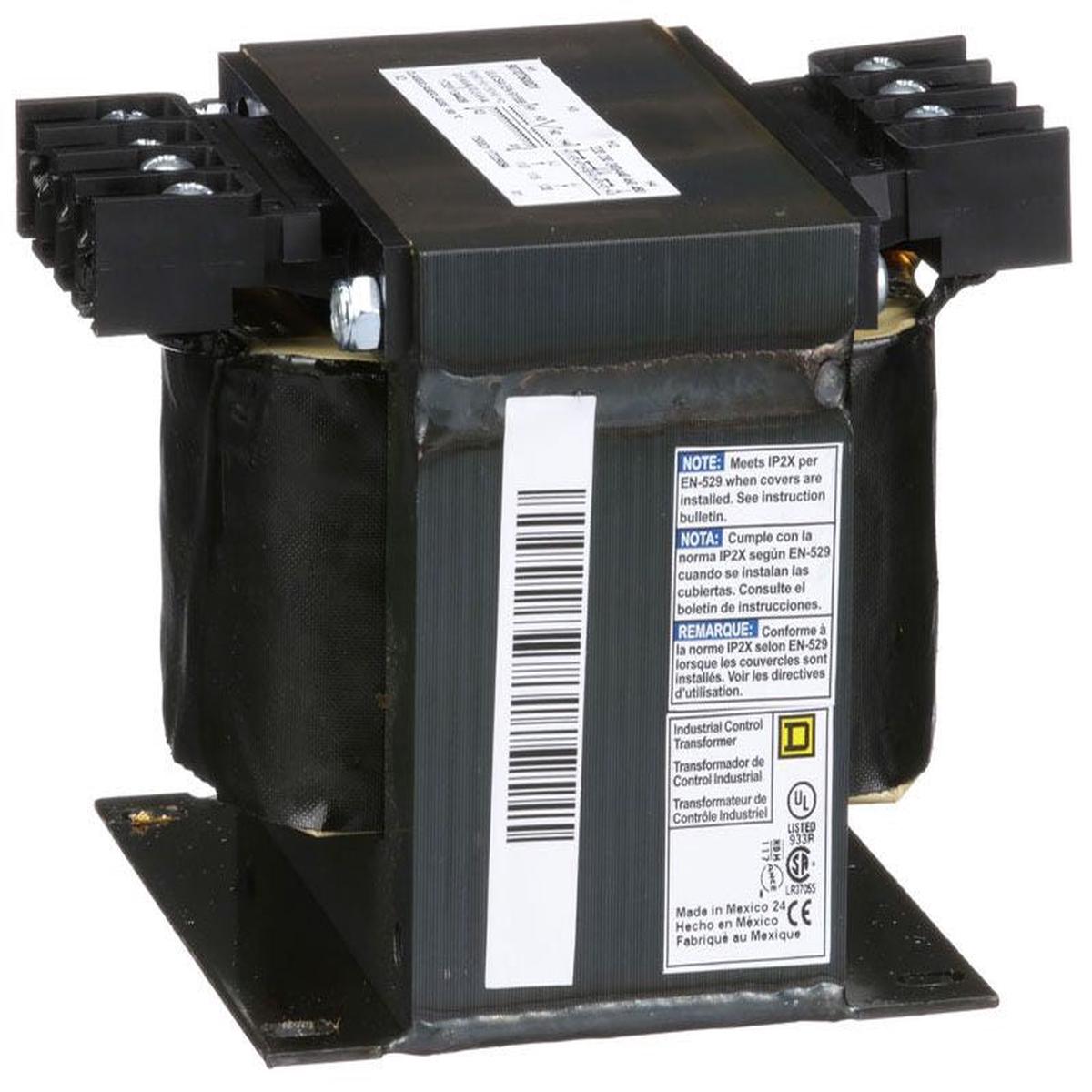

9070T500D1 Square D 9070 Transformers Control

9070T500D1

9070T500D1 is a Schneider Electric / Square D industrial control transformer designed to provide reliable step-down voltage for control circuits and automation equipment. This transformer has a 500 VA power rating, with a 240×480 V primary and 120 V secondary. It belongs to the Class 9070 Type T family, known for its high inrush capability, durable construction, and consistent voltage regulation. The encapsulated design reduces noise and vibration, making it ideal for use in control panels, motor starters, and factory automation systems.

• Manufacturer: Schneider Electric / Square D
• Series: Class 9070 Type T Control Transformers
• Power Rating: 500 VA
• Primary Voltage: 240×480 V
• Secondary Voltage: 120 V
• Frequency: 50/60 Hz
• Mounting: Panel or surface mount
• Temperature Rise: 115C insulation class
• Certifications: UL Listed, CSA Certified, CE Marked
• Application: Industrial control panels, motor starters, and automation circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T500D1
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Transformers
• Section : Control
• Family : 9070
• Temp Rating : -13158 F (-2570 C)

Product Data

• UPC : 785901904700
• GTIN : 00785901904700
• Country of Origin : Mexico
• Dimensions : 4.5 in W x 5.46 in D x 3.8 in H
• Weight : 5.65
• Temp Rating : -13158 F (-2570 C)
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
