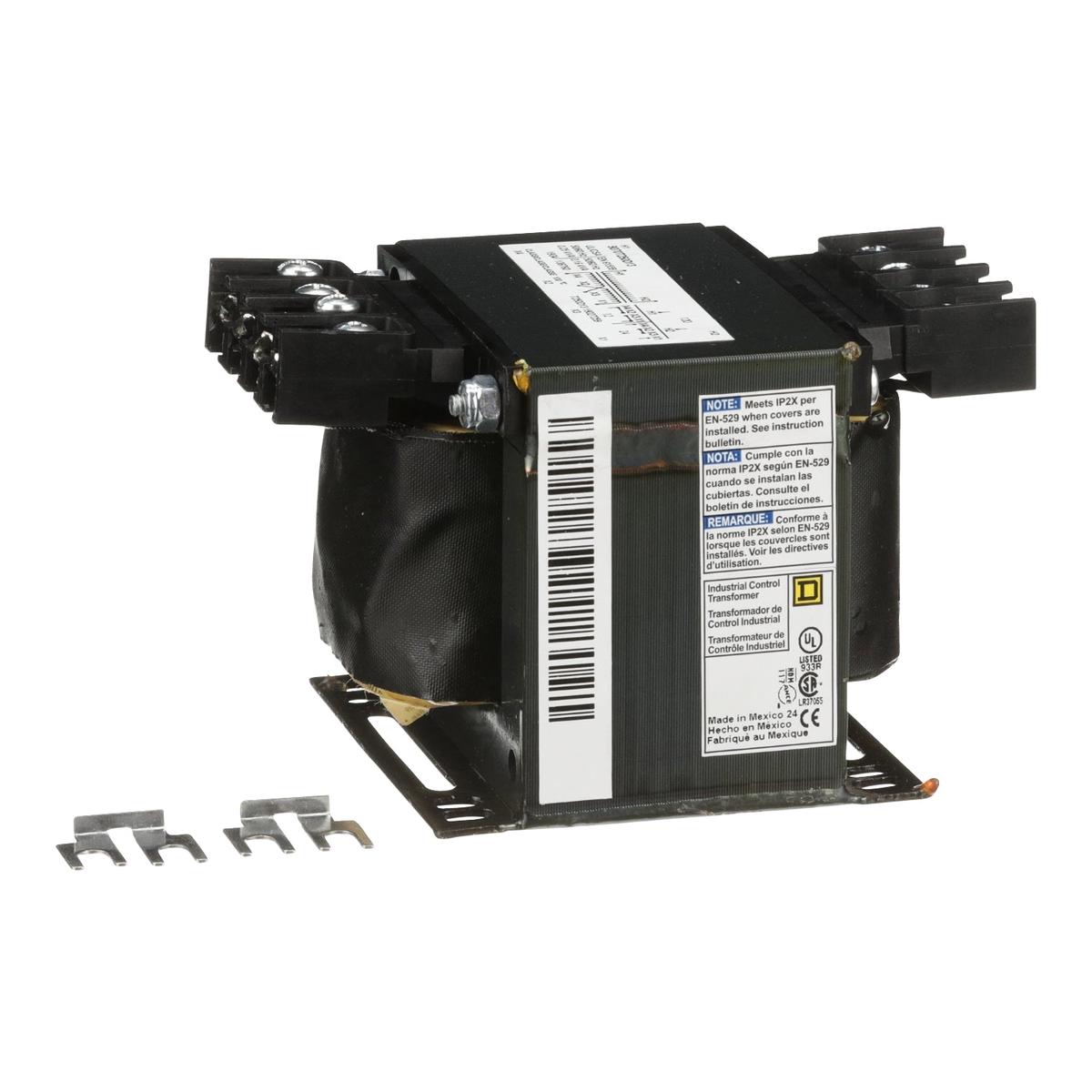

9070T250D13 – Square D 250VA 120V to 12/24V Control Transformer Type T 1-Phase Open Frame

9070T250D13

9070T250D13 is a Square D industrial control transformer providing 250 VA output with 120V primary to 12/24V secondary voltage conversion.

This Type T transformer is designed for industrial control applications with a single-phase 120V primary input and dual 12/24V secondary output. It features low impedance windings for excellent voltage regulation and can accommodate high inrush currents from relays, starters, solenoids, and contactors. The unit is rated for 50/60 Hz operation and has an 80C temperature rise. It comes with screw clamp terminals and an open frame design for easy installation.

• Type: Industrial Control Transformer
• Volt Amps: 250 VA
• Primary Voltage: 120 VAC
• Secondary Voltage: 12/24 VAC
• Phase: Single Phase
• Frequency: 50/60 Hz
• Temperature Rise: 80C
• Electrical Connection: Screw Clamp Terminals
• Mounting Type: Open Frame
• Dimensions (HxWxD): 3.2 x 3.75 x 5.3 inches
• Series: Type T
• Certifications: UL, CUL, CSA, CE, NOM

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T250D13
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Transformers
• Section : Control
• Family : 9070

Product Data

• UPC : 785901905837
• GTIN : 00785901905837
• Country of Origin : Mexico
• Dimensions : 3.2 in H x 3.75 in W x 5.3 in D 3.75 in W x 5.3 in D x 3.2 in H
• Weight : 5.19
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
