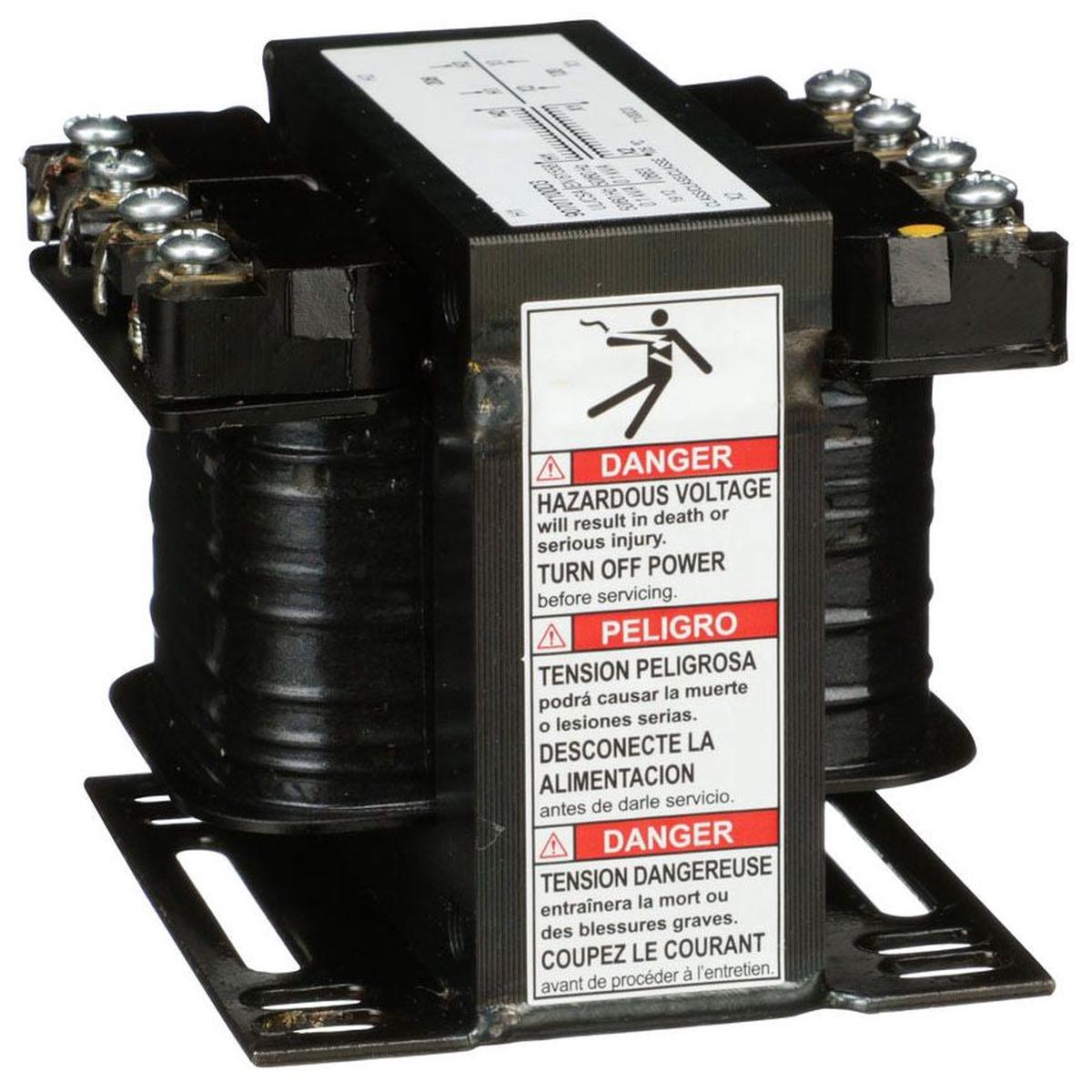

9070T100D3 – Square D 100VA 1-Phase Control Transformer 208V Primary 120V Secondary Type T

9070T100D3

9070T100D3 is a Square D industrial control transformer designed for reliable power conversion in motor control applications.This Type T transformer features a 100 VA power rating with a 208V primary voltage and 120V secondary voltage. It operates at 1 phase with a temperature rise of 55C and includes screw clamp terminals for electrical connection. The transformer is UL listed, CSA certified, and designed for chassis mounting with copper windings and a non-rated enclosure.

• Power Rating: 100 VA
• Primary Voltage: 208 V
• Secondary Voltage: 120 V
• Phase: 1
• Type: T
• Temperature Rise: 55 C
• Electrical Connection: Screw clamp terminals
• Material: Copper winding
• Certifications: UL listed, CSA certified
• Mounting Type: Chassis mount
• Enclosure: Not rated (open device)
• Insulation Temperature: 221 F (105 C)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T100D3
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Transformers
• Section : Control
• Family : 9070

Product Data

• UPC : 785901905486
• GTIN : 785901905486
• Country of Origin : Mexico
• Dimensions : 2.89 in H x 3.38 in W x 3.34 in D 3.38 in W x 3.34 in D x 2.89 in H
• Weight : 3.911 lb
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
