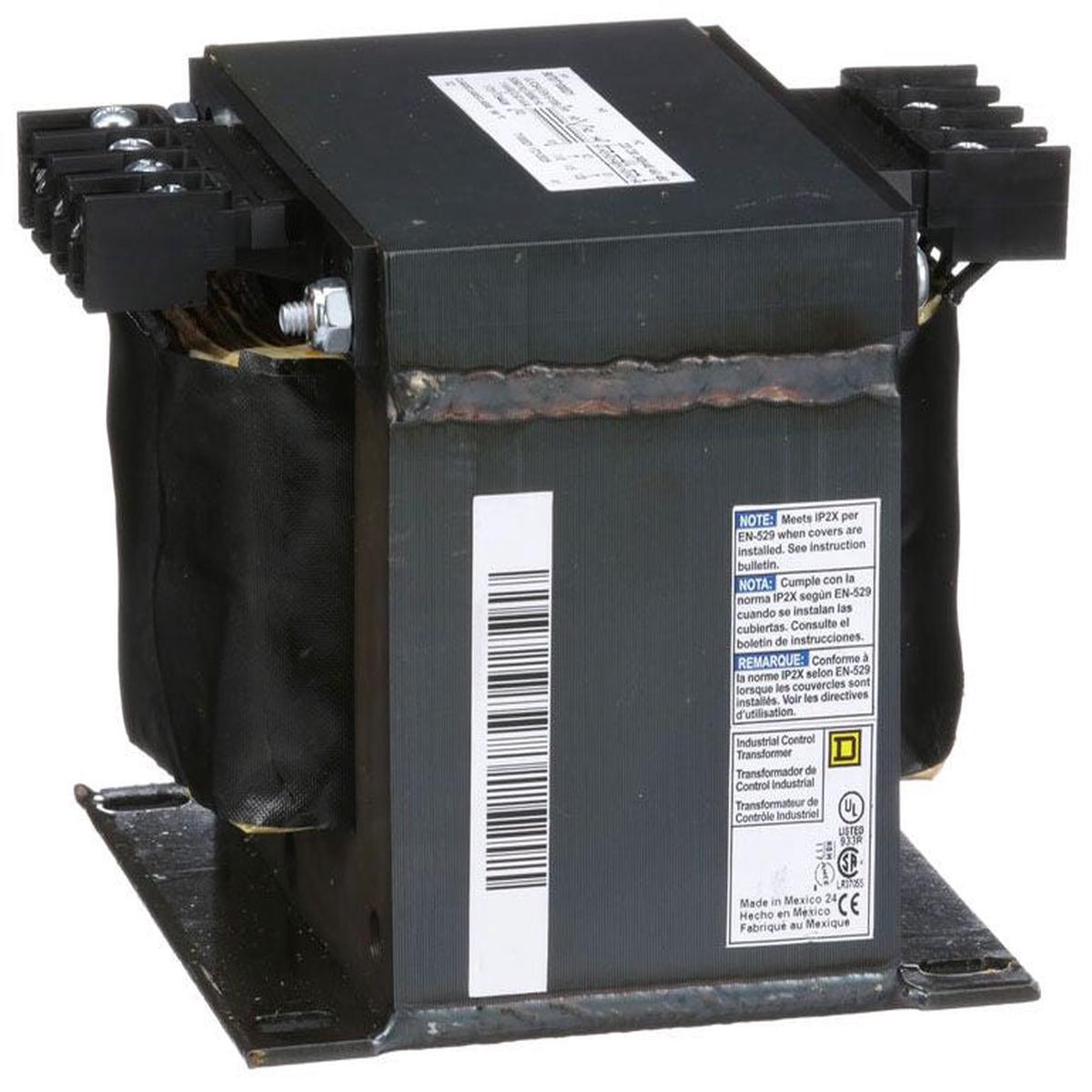

9070T1000D1 – Square D 1000VA 240/480V to 120V 1-Phase Industrial Control Transformer, Open Frame, Panel Mount, UL/CSA/CE Certified

9070T1000D1

9070T1000D1 is a Square D industrial control transformer designed for reliable power conversion in demanding environments.

This Type T, open-frame transformer delivers 1000VA capacity with a 1-phase configuration, accepting primary voltages of 220/230/240/440/460/480VAC and providing secondary output of 110/115/120VAC. It features screw clamp terminals, panel mounting, and is rated for a temperature rise of 115C. Ideal for machine tool control circuits, conveyor systems, and OEM industrial applications, it meets UL, CSA, and CE standards for safety and performance.

Key Specifications

• Part Number: 9070T1000D1
• Manufacturer: Square D (Schneider Electric)
• Category: Motor Control
• Power Rating: 1000 VA
• Primary Voltage: 220/230/240/440/460/480 VAC
• Secondary Voltage: 110/115/120 VAC
• Phase: 1
• Frequency: 50/60 Hz
• Mounting Type: Panel
• Enclosure: Open Frame
• Terminal Connection: Screw Clamp
• Temperature Rise: 115C
• Insulation Class: 180C
• Certifications: UL, CSA, CE, NEMA, NOM, CUL, EN
• Series/Frame: 9070
• Dimensions: 5.25 in W x 6.04 in D x 4.43 in H
• Country of Origin: MX

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9070T1000D1
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Transformers
• Section : Control
• Family : 9070
• Temp Rating : -13158 F (-2570 C)

Product Data

• UPC : 785901904724
• GTIN : 00785901904728
• Country of Origin : Mexico
• Dimensions : 5.25 in W x 6.04 in D x 4.43 in H
• Weight : 21.7 lb
• Temp Rating : -13158 F (-2570 C)
• Certification : CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
