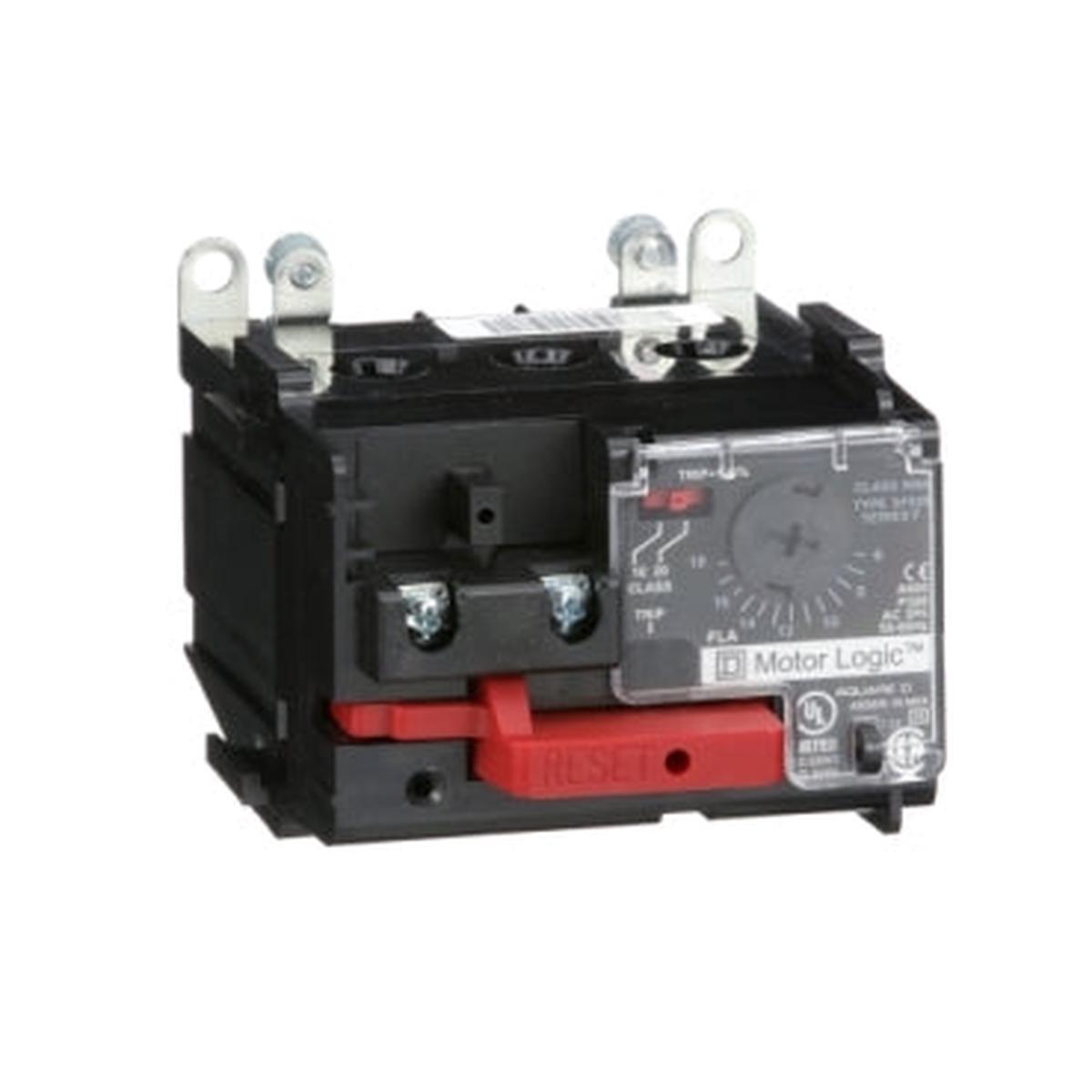

9065SF020 – Square D 18A 600V 3-Pole Solid State Thermal Overload Relay Surface Mount NEMA 0

9065SF020

9065SF020 is a Square D solid state thermal overload relay designed for motor control applications with an 18 amp rating.This 3-pole overload relay features a solid state design with adjustable current settings from 6 to 18 amps, suitable for 600 VAC operation at 50/60 Hz. It includes trip free operation and selectable trip class 10/20 for motor protection. The relay mounts on the surface and comes in a NEMA 0 enclosure with compact dimensions of 6.1 in W x 5.3 in D x 5.5 in H. It is manufactured by Schneider Electric and is immune to line harmonics.

Key Specifications
• Amperage Rating: 18 A (adjustable 6-18 A)
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Mounting Type: Surface Mount
• Enclosure Type: NEMA 0
• Frequency Rating: 50/60 Hz
• Trip Class: Selectable 10/20
• Type: Solid State Thermal Overload
• Dimensions: 6.1 in W x 5.3 in D x 5.5 in H
• Contact Rating: 18 A at 600 VAC
• Country of Origin: Mexico
• Manufacturer: Schneider Electric (Square D)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9065SF020
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : MotorLogic
• Type : S
• Voltage : 600 AC
• Relay Style : Solid State
• Aux Contacts : 1NC
• Amperage Maximum : 18
• Amperage Minimum : 6
• Nema Starter Size : 0

Product Data

• UPC : 785901749929
• GTIN : 00785901749929
• Country of Origin : Mexico
• Dimensions : 5.3″ x 5.5″
• Weight : 1
• Certification : REACH, RoHS
