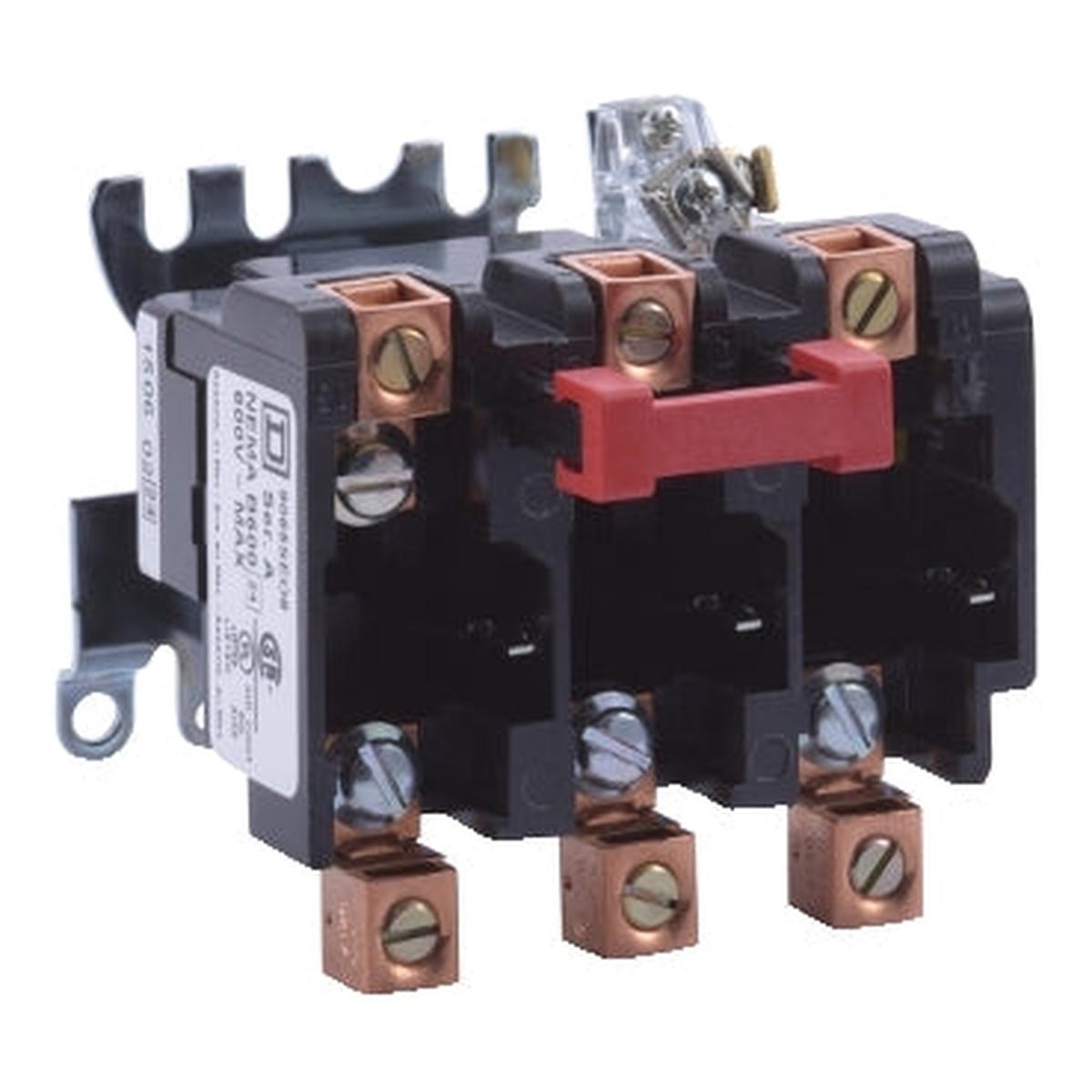

9065SEO8 – Square D Type S Melting Alloy Overload Relay 45A 600VAC 3-Pole NEMA Size 2

9065SEO8

9065SEO8 is a Type S melting alloy overload relay designed for motor protection against overcurrents in industrial applications. This separate mount, panel-mounted relay provides thermal protection for motors and branch-circuit conductors with field-interchangeable thermal units for flexible replacement installations. The relay comes standard installed on non-reversing, reversing, combination, and multispeed starters, offering simple installation and reliable motor control performance. Key Specifications

• Manufacturer: Square D (Schneider Electric)
• Part Number: 9065SEO8
• Type: Type S Melting Alloy Overload Relay
• NEMA Size: 2
• Poles: 3 Pole, 3 Phase
• Maximum Amperage: 45A
• Maximum Voltage: 600VAC
• Mounting: Separate Mount, Panel Mount
• Reset Type: Manual
• Dimensions: 3.31 inches H x 3.50 inches W x 3.97 inches D
• Field Interchangeable Thermal Units

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9065SEO8
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Class 9065
• Type : SEO
• Voltage : 600 AC
• Aux Contacts : 1NC
• Coil Voltage Maximum : 600 VAC
• Nema Starter Size : 2

Product Data

• UPC : 785901893707
• GTIN : 00785901893707
• Country of Origin : Mexico
• Dimensions : 88.9 mm x 84.1 mm
• Weight : 1.1
• Certification : RoHS
