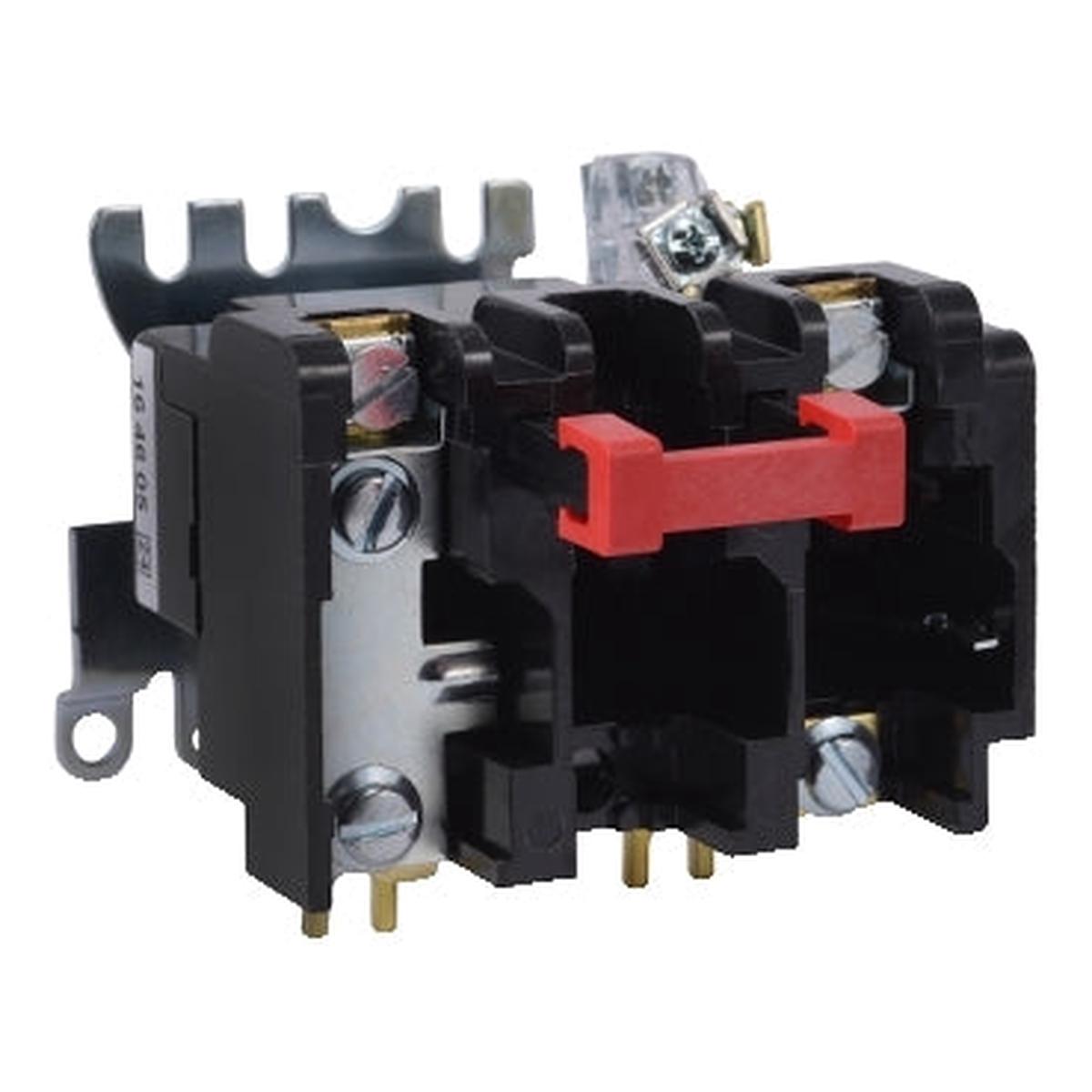

9065SDO4 – Square D 27A 600VAC 2-Pole Melting Alloy Overload Relay Size 00/0/1

9065SDO4

9065SDO4 is a melting alloy overload relay by Square D designed for motor control applications with a 27 amp adjustable range.

This thermal overload relay features a 2-pole configuration suitable for sizes 00, 0, and 1, rated for 600VAC single-phase operation. It uses a melting alloy trip unit for reliable motor protection and is designed for direct mounting in NEMA size 00/0/1 starters. The product is discontinued but was widely used for its robust performance in industrial motor control circuits.

Key Specifications
• Manufacturer: Square D
• Part Number: 9065SDO4
• Amperage: Adjustable up to 27A
• Voltage Rating: 600VAC
• Poles: 2
• Mounting Type: Direct mount for NEMA sizes 00, 0, 1
• Trip Unit: Melting alloy
• Phase: Single-phase
• Series/Frame: Size 00/0/1
• Discontinued: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9065SDO4
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Overload Relay
• Family : Class 9065
• Type : SDO
• Relay Style : Thermal
• Amperage Maximum : 27

Product Data

• UPC : 785901882305
• GTIN : 00785901882305
• Dimensions : Depth 3.97 in (100.8 mm) Width 3.50 in (88.9 mm) Height 4.00 in (101.6 mm)
• Weight : 0.94
