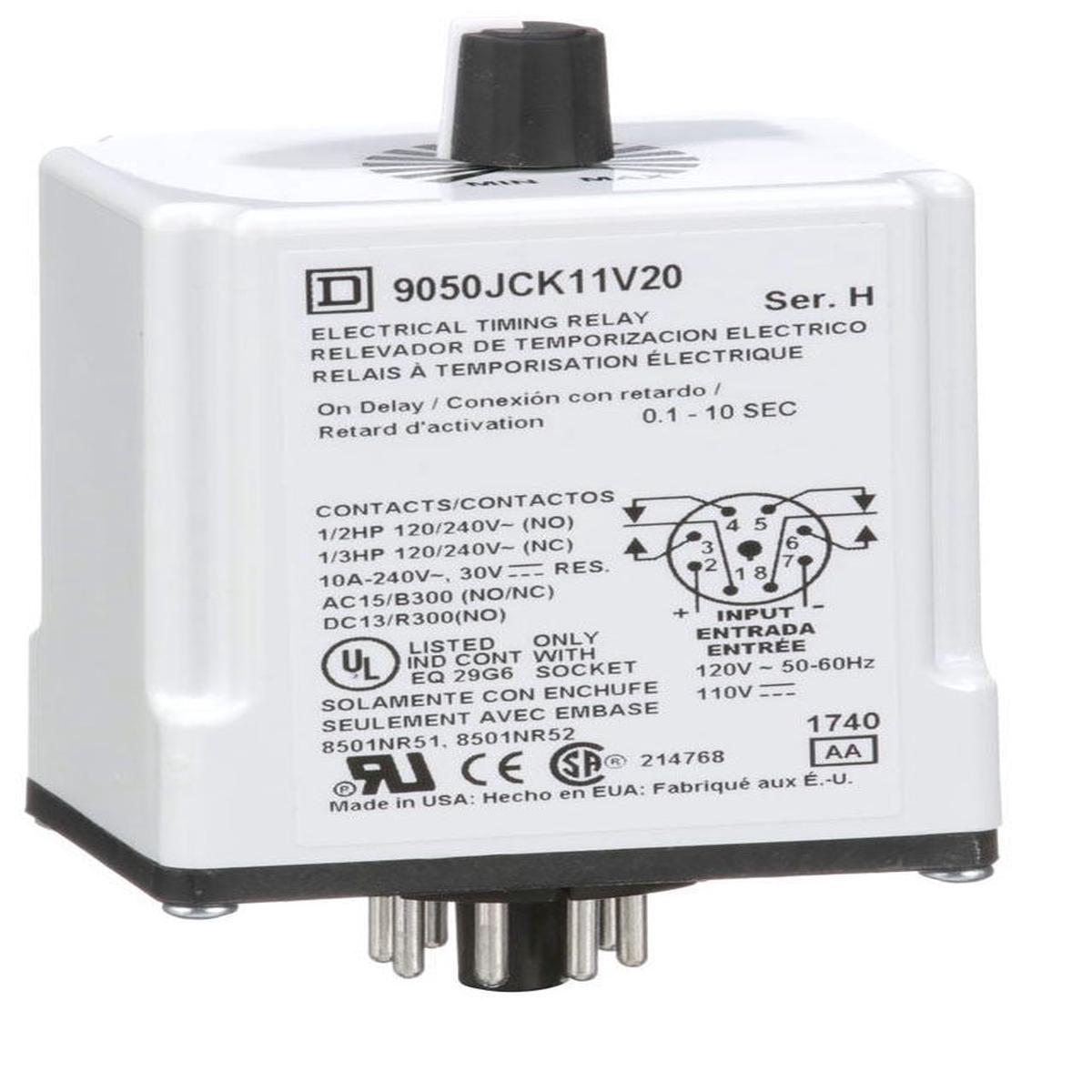

9050JCK11V20 – Square D 10A 120 VAC/110 VDC DPDT Plug-In On-Delay Timing Relay 0.1-10 Seconds

9050JCK11V20

9050JCK11V20 is a plug-in on-delay timing relay designed for reliable motor control applications. This relay features DPDT contacts and adjustable timing from 0.1 to 10 seconds, suitable for both AC and DC control circuits.Engineered for easy installation and dependable operation, the 9050JCK11V20 is compatible with 120 VAC, 110 VDC, and 240 VAC systems. Its compact design and socket mounting make it ideal for panel use in industrial environments.

• Part Number: 9050JCK11V20
• Manufacturer: Square D
• Amperage: 10A
• Voltage: 120 VAC, 110 VDC, 240 VAC
• Poles: DPDT
• Mounting Type: Socket Mount
• Timing Range: 0.1 to 10 seconds (adjustable)
• Interrupt Rating: 10A resistive, 3A inductive
• Series: 9050 Type JCK
• Function: On-Delay
• Plug Type: 8-pin
• Certifications: UL Recognized, UL Approved, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9050JCK11V20
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Timers
• Family : 9050
• Voltage : 240 240

Product Data

• UPC : 785901032540
• GTIN : 785901032540
• Country of Origin : United States
• Dimensions : 1.69 in W x 4.09 in D x 2.4 in H 43 mm W x 104 mm D x 61 mm H
• Weight : 0.5 lb
• Certification : CE Certified, CSA Certified, UL Listed, UL Recognized
