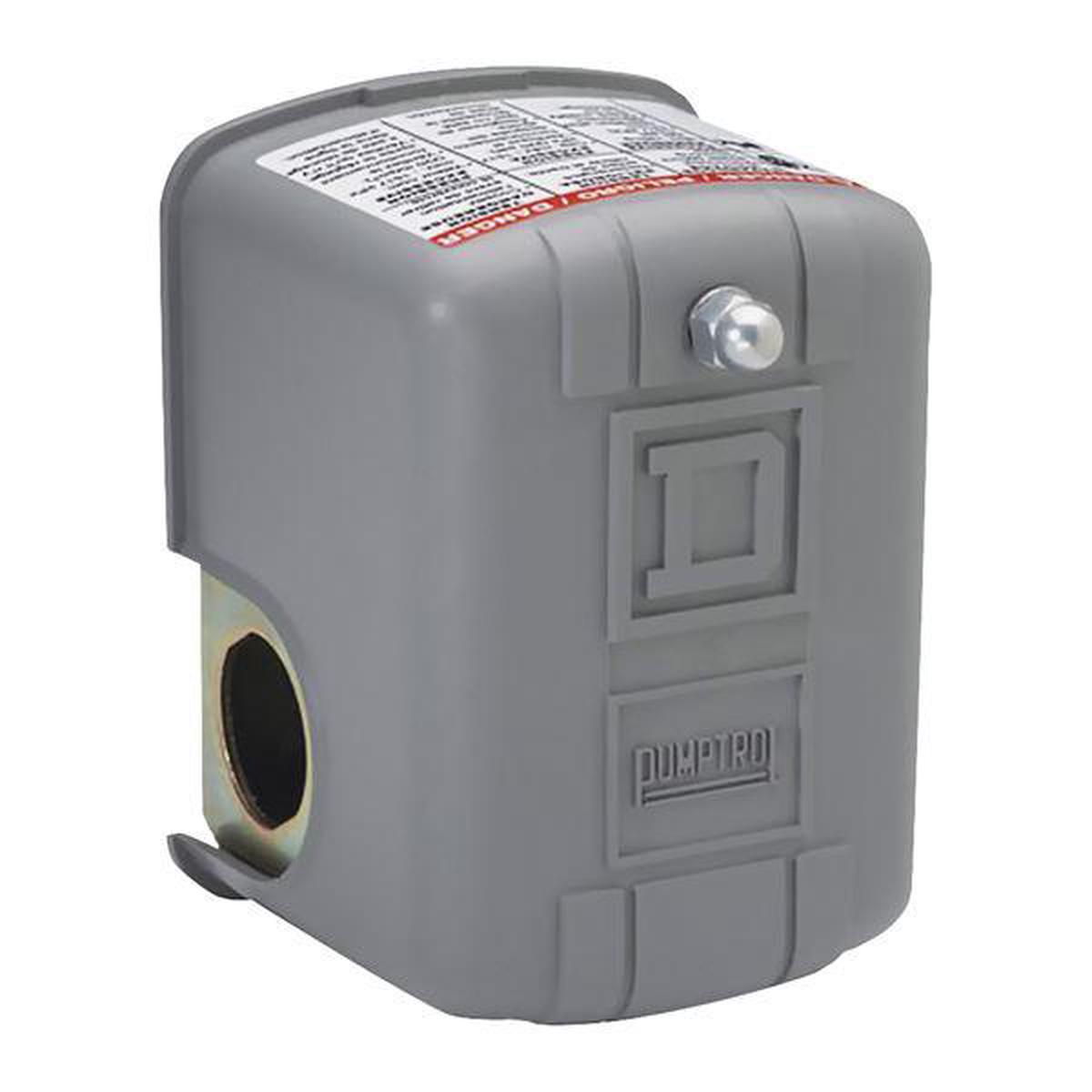

9013GSG2J20 – Square D Pumptrol 20-40 PSI Pressure Switch for Water Pumps and Air Compressors, Adjustable Differential, NEMA 1, 575 VAC, 5HP

9013GSG2J20

9013GSG2J20 is a heavy-duty electromechanical pressure switch designed for controlling water pumps and air compressors with an adjustable differential and reliable diaphragm actuation. This Square D Pumptrol switch features a 20-40 PSI pressure range, 575 VAC rating, and is suitable for motor loads up to 5HP. It offers snap-action contacts, screw-clamp terminals, and is rated for use with air and fresh water. The compact design allows for easy installation and maintenance in demanding environments.

• Part Number: 9013GSG2J20
• Manufacturer: Square D
• Series: Pumptrol 9013GS
• Pressure Range: 20-40 PSI
• Adjustable Differential: Yes
• Electrical Rating: 575 VAC, 5HP
• Contacts: 2 NC, DPST-DB, Form YY
• Connection Type: Screw-clamp terminals, 10 AWG
• Mounting: 1/4″ Female NPT
• Enclosure: NEMA 1
• Application: Water pumps, air compressors
• Certifications: UL/CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9013GSG2J20
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control
• Family : 9013
• Type : 9013
• Nema Rating : Nema 1

Product Data

• UPC : 078590155988
• GTIN : 00785901559887
• Country of Origin : Mexico
• Weight : 5.19
• Certification : ANSI /NSF Standard 61, CSA Certified, FDA 21CFR.2600, NEC Article 430-84, UL 508
