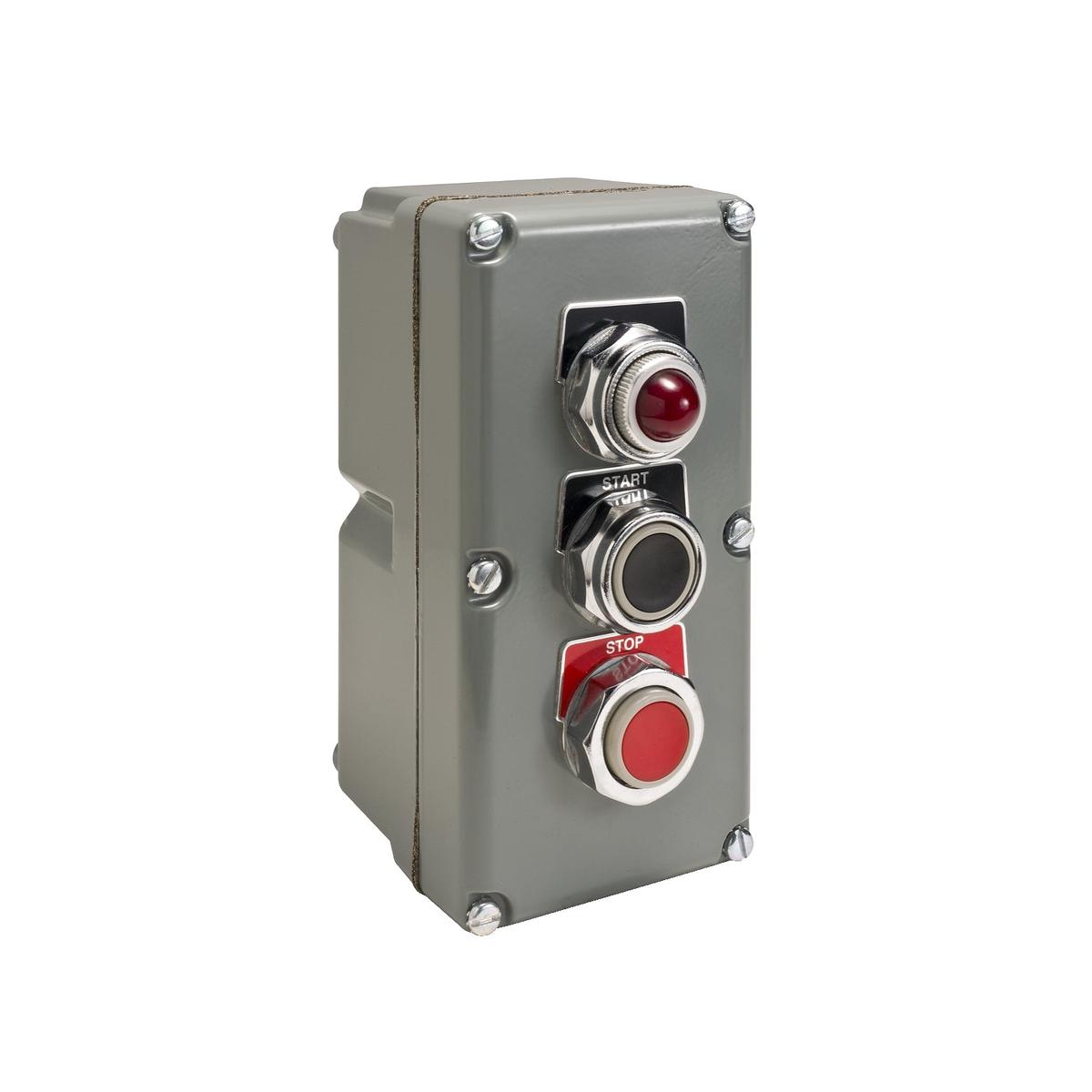

9001KYK317 – Schneider Electric 30mm Harmony K Type Control Station, 3 Push Buttons, 1 NO + 1 NC, 10A, NEMA 3/4/13, Surface Mount

9001KYK317

9001KYK317 is a Schneider Electric Harmony 9001K complete control station featuring 3 push-buttons with 1 normally open and 1 normally closed contact, designed for industrial motor control applications.This control station is housed in a gray die cast zinc alloy enclosure suitable for surface mounting and rated for indoor/outdoor use. It supports a rated operational current of 10A AC and complies with NEMA 3, 4, and 13 environmental protection standards. The unit includes screw-clamp terminals for secure wiring connections and is UL Listed, CSA certified, and CE marked, ensuring compliance with IEC, UL, CSA, and NOM standards.

Key Specifications
• Type: Complete control station, Harmony 9001K series
• Push Buttons: 3 total with 1 NO + 1 NC contacts (START-STOP)
• Rated Operational Current: 10A AC
• Enclosure Material: Die cast zinc alloy, gray color
• Mounting Type: Surface mount
• Environmental Rating: NEMA 3, 4, 13
• Terminals: Screw-clamp
• Standards: UL Listed, CSA certified, CE marked, IEC and NOM compliant
• Type of Installation: Indoor/outdoor

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KYK317
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Control Stations
• Family : 9001KY
• Voltage : 300 300

Product Data

• UPC : 785901846109
• Country of Origin : Mexico
• Dimensions : 30 30 mm
• Weight : 5.19
• Certification : UL Listed
