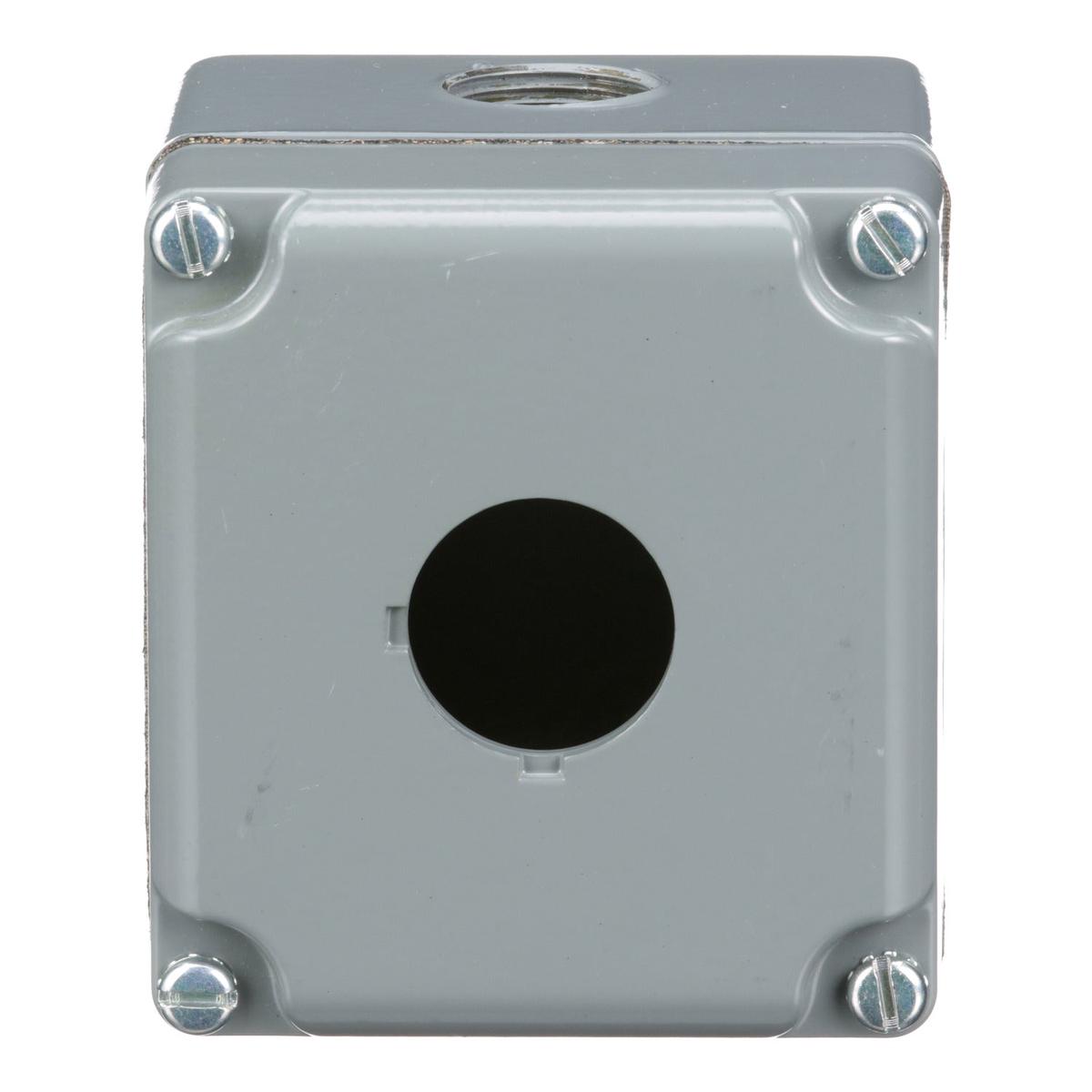

9001KY1 – Square D 30mm Push Button Enclosure NEMA 1/3/4/6/12/13 Surface Mount Die Cast Aluminum

9001KY1

9001KY1 is a Square D 30mm push button enclosure designed for motor control applications with robust environmental protection.This enclosure features a single 30mm device hole arranged in a 1-row vertical layout, constructed from durable die cast aluminum. It offers NEMA 1/3/4/6/12/13 ratings, providing dusttight, oiltight, watertight, and rain-tight protection suitable for indoor and outdoor use. The surface mounting style and compact dimensions (approximately 4 x 3.62 x 3.53 inches) make installation straightforward. It operates reliably in temperatures from -25 to 70 degrees Celsius and is UL approved.

Key Specifications
• Manufacturer: Square D (Schneider Electric)
• Part Number: 9001KY1
• Device Hole Size: 30 mm diameter
• Number of Holes: 1 (1-row vertical)
• Material: Die Cast Aluminum
• NEMA Rating: 1/3/4/6/12/13
• Mounting Type: Surface mount
• Environmental Protection: Dusttight, Oiltight, Watertight, Rain-tight
• Operating Temperature: -25 to 70 C
• UL Approved
• Color: Gray

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KY1
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Pushbutton Enclosures
• Family : Harmony 9001K
• Type : 9001KY
• Temp Rating : -13158 F (-2570 C)

Product Data

• UPC : 785901874423
• GTIN : 00785901874423
• Country of Origin : Mexico
• Dimensions : 3.63 in x 4 in
• Weight : 1.18
• Temp Rating : -13158 F (-2570 C)
• Certification : RoHS
