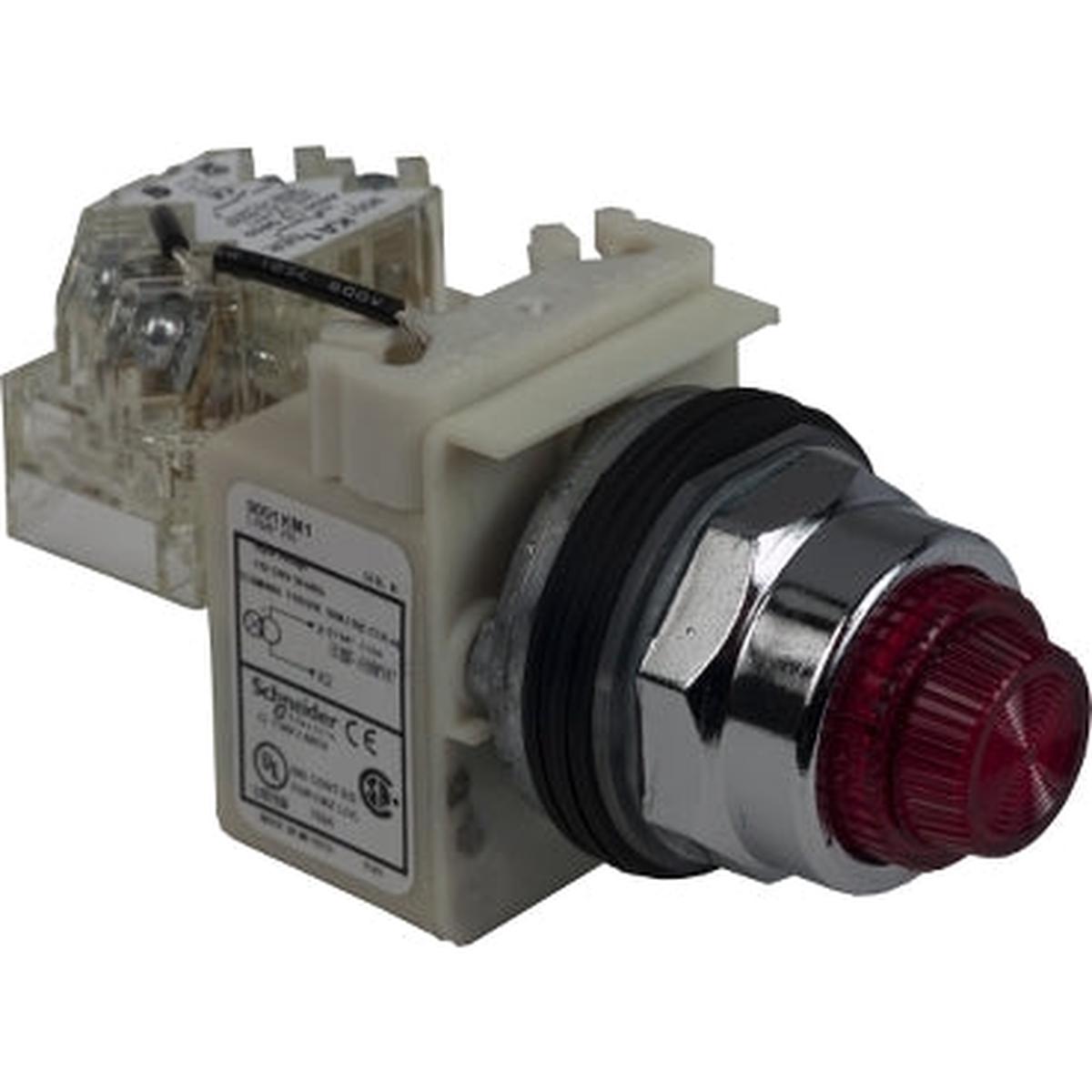

9001KT1R31 – Schneider Electric 120V AC Red Push-to-Test Pilot Light, 30mm, Harmony 9001K Series

9001KT1R31

9001KT1R31 is a Schneider Electric 120V AC red push-to-test pilot light designed for motor control applications in the Harmony 9001K series.

This pilot light features a 30mm round panel cutout, a metal bezel with a polycarbonate fresnel lens, and an incandescent light source. It offers robust construction suitable for harsh environments and includes finger-safe contact blocks and light modules for improved safety. The mounting system is easy and secure, with automatic self-grounding operators requiring no additional wiring. It is NEMA rated for multiple environments including 1, 2, 3, 3R, 4, 6, 12, and 13, and operates reliably in temperatures from -25 to 70 degrees Celsius.

• Voltage: 110-120V AC
• Light Color: Red
• Mounting Type: Panel mount, 30mm cutout
• Lens Type: Polycarbonate fresnel lens
• Bezel Material: Metal
• Series: Harmony 9001K
• Light Source: Incandescent
• Operating Temperature: -25 to 70 C
• Environmental Ratings: NEMA 1/2/3/3R/4/6/12/13, IP66
• Safety Features: Finger-safe contact blocks, automatic self-grounding
• Application: Motor control pilot light

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KT1R31
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 120 AC

Product Data

• UPC : 785901036012
• GTIN : 00785901000000
• Country of Origin : Mexico
• Weight : 0.58
• Certification : CE, CSA LR25490 Class 3211 03, REACH, RoHS, UL E42259 CCN NKCR, WEEE
