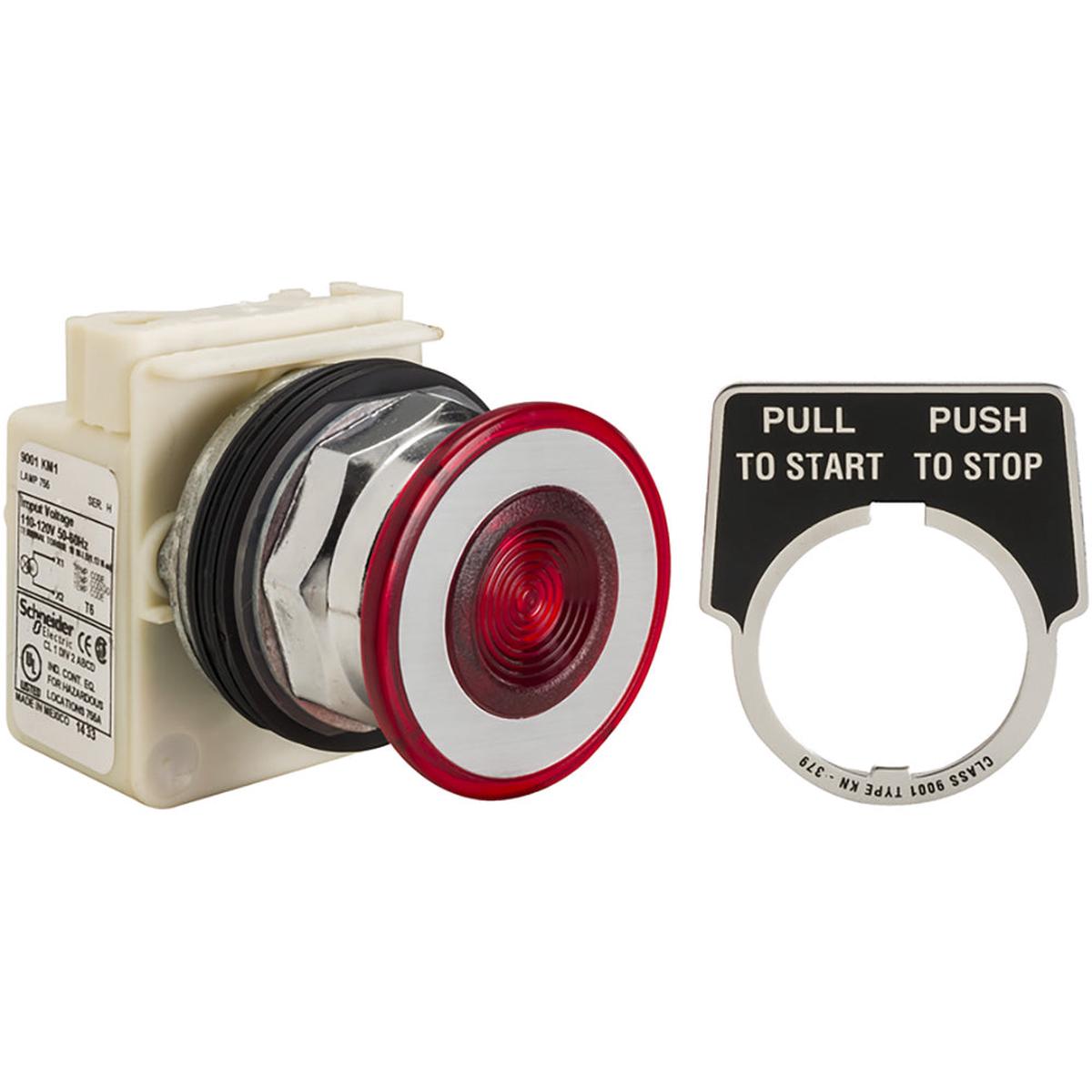

9001KR9P1R – Square D 600V 30mm Red Illuminated Mushroom Push Button Operator

9001KR9P1R

9001KR9P1R is a Square D illuminated mushroom push button operator designed for motor control applications.This 30 mm push-pull operator features a red flush mushroom head with a 2-position maintained contact mode and spring return. It is constructed with a metal bezel and is compatible with standard 30 mm panel cut-outs. The push button is rated for 600 volts AC and includes an LED lamp module powered by a 6V AC transformer.

Key Specifications
• Manufacturer: Square D
• Part Number: 9001KR9P1R
• Operator Type: Illuminated Mushroom Push Button
• Head Diameter: 30 mm
• Color: Red
• Voltage Rating: 600 V AC
• Contact Mode: Maintained (2 positions)
• Mounting: Standard 30 mm panel cut-out
• Material: Metal bezel
• Lamp Type: LED with 6V AC transformer
• Actuator: Push-pull with spring return

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KR9P1R
• Manufacturer : Square D
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : 9001K
• Voltage : 600 600

Product Data

• UPC : 785901384373
• GTIN : 00785901384373
• Country of Origin : Mexico
• Weight : 5.19
• Certification : CE, UL, CSA
