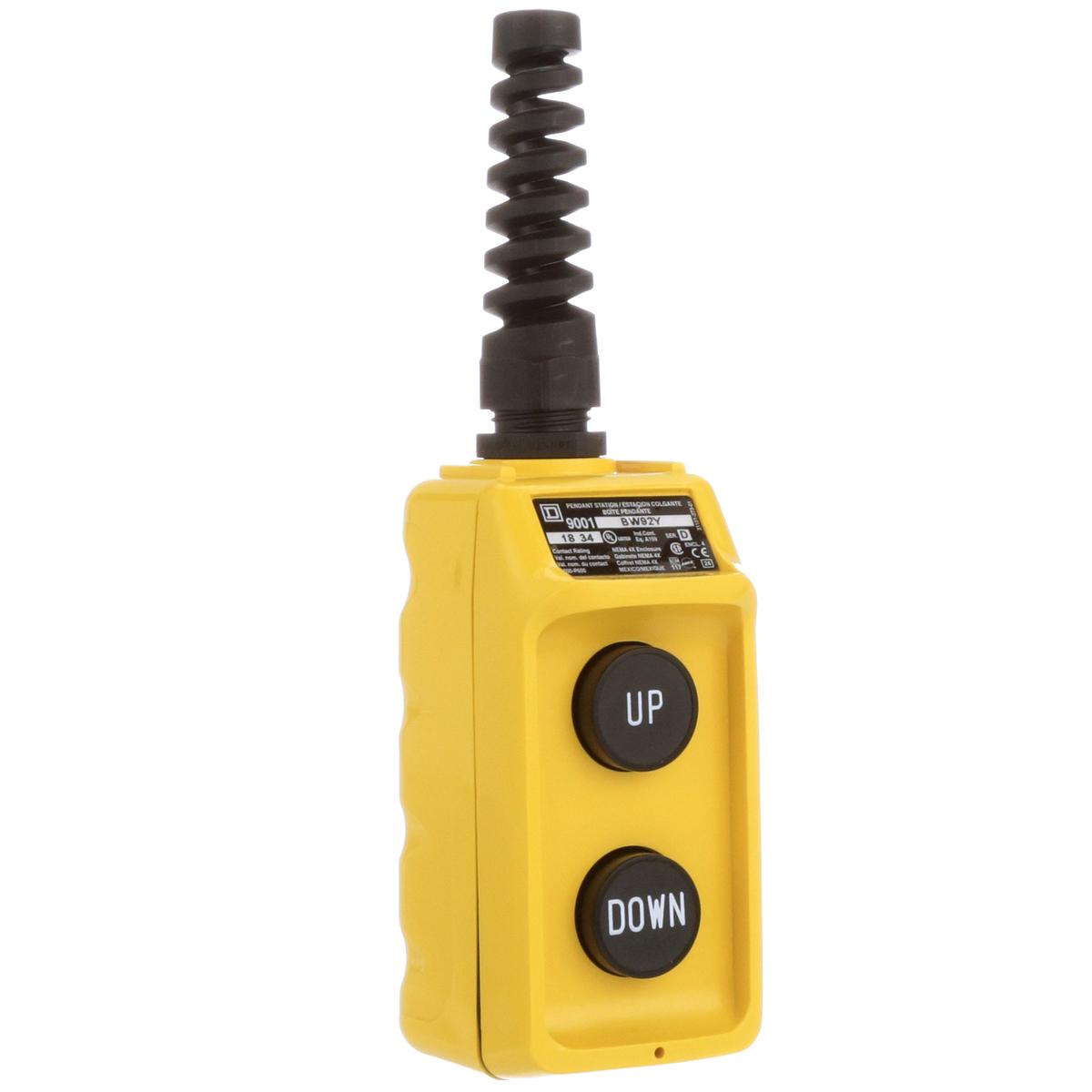

9001BW92Y – Square D 2-Pole 600V Motor Control Pendant Station, Thermoplastic Enclosure

9001BW92Y

9001BW92Y is a Square D motor control pendant station featuring 2 mechanically interlocked push buttons in a durable thermoplastic enclosure. It is designed for standard hoist applications with up/down control.

This pendant station supports up to 600 VAC and 5A rating, with a thermoplastic enclosure rated UL 94V-0 for self-extinguishing flammability. It is suitable for harsh environments and complies with RoHS environmental standards. The device is double insulated and designed for reliable motor control in industrial settings.

• Manufacturer: Square D
• Part Number: 9001BW92Y
• Type: Motor Control Pendant Station
• Poles: 2 (2 NO – Normally Open)
• Voltage Rating: 600 VAC
• Current Rating: 5 Amps
• Enclosure: Thermoplastic, UL 94V-0 rated
• Push Buttons: 2 mechanically interlocked (Up/Down)
• Mounting: Pendant station for hoist control
• Certifications: RoHS compliant, double insulated
• Application: Standard hoist and motor control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001BW92Y
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Control Stations
• Section : Control Station
• Family : Harmony 9001B
• Type : 9001B Series
• Voltage : 600
• Amperage : 4000
• Phase : 3
• Poles : 3
• Temp Rating : -13158 F (-2570 C)

Product Data

• UPC : 78590166368
• GTIN : 00785901663683
• Country of Origin : Mexico
• Dimensions : 2.19 in x 4.69 in
• Weight : 0.69 lb
• Temp Rating : -13158 F (-2570 C)
• Certification : CE, CSA, UL Listed
