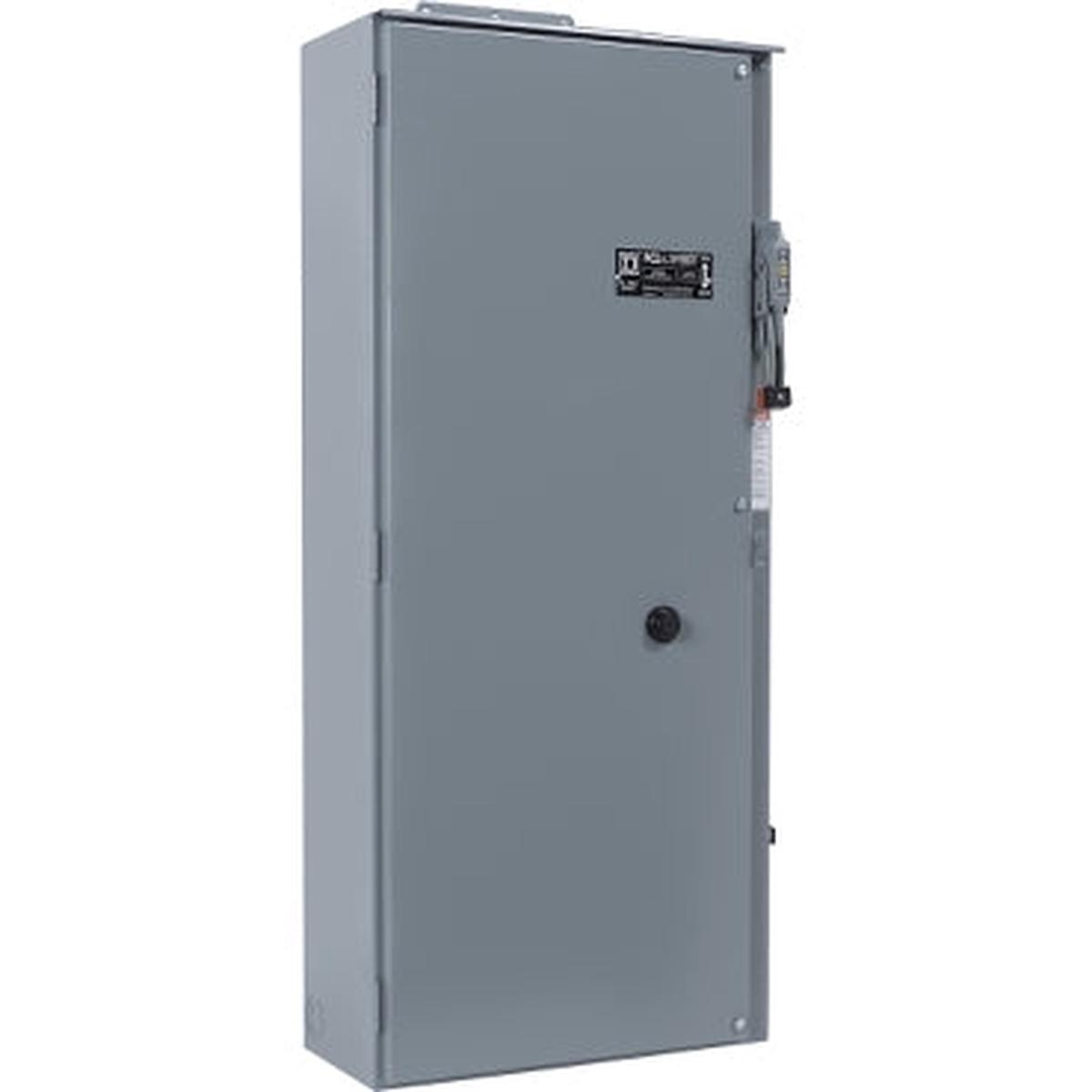

8940SSF4100V02S – Schneider Electric 135A 480VAC 3-Pole Well-Guard Pump Panel NEMA 3R Size 4

8940SSF4100V02S

8940SSF4100V02S is a Schneider Electric Well-Guard pump panel designed for motor control applications with a 135 amp rating and 480 VAC voltage.This pump panel features a 3-pole configuration with a NEMA 3R enclosure, suitable for irrigation and oil field environments. It includes a Motor Logic solid state class 10/20 trip unit and a fusible disconnect switch. The panel supports a 100 HP motor at 480 V AC, 3-phase power supply, and is built for durability and serviceability with replaceable contacts and coils. It is surface mounted and sized as NEMA 4.

Key Specifications
• Amperage: 135 A
• Voltage: 480 VAC
• Number of Poles: 3
• Mounting Type: Surface
• NEMA Enclosure: 3R, Size 4
• Horsepower Rating: 100 HP at 480 V AC
• Trip Unit: Motor Logic solid state class 10/20
• Disconnect Type: Fusible
• Phase: 3-phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8940SSF4100V02S
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Voltage : 600
• Amperage : 135
• Phase : 3
• Coil Voltage Maximum : 110 VAC
• Nema Rating : 3R
• Nema Starter Size : 4

Product Data

• UPC : 785901147497
• GTIN : 00785901147497
• Country of Origin : Mexico
• Dimensions : Width 20.55 in (522 mm) x Height 49.02 in (1245 mm) x Depth 10.35 in (263 mm)
• Weight : 147
• Certification : UL listed NEMA
