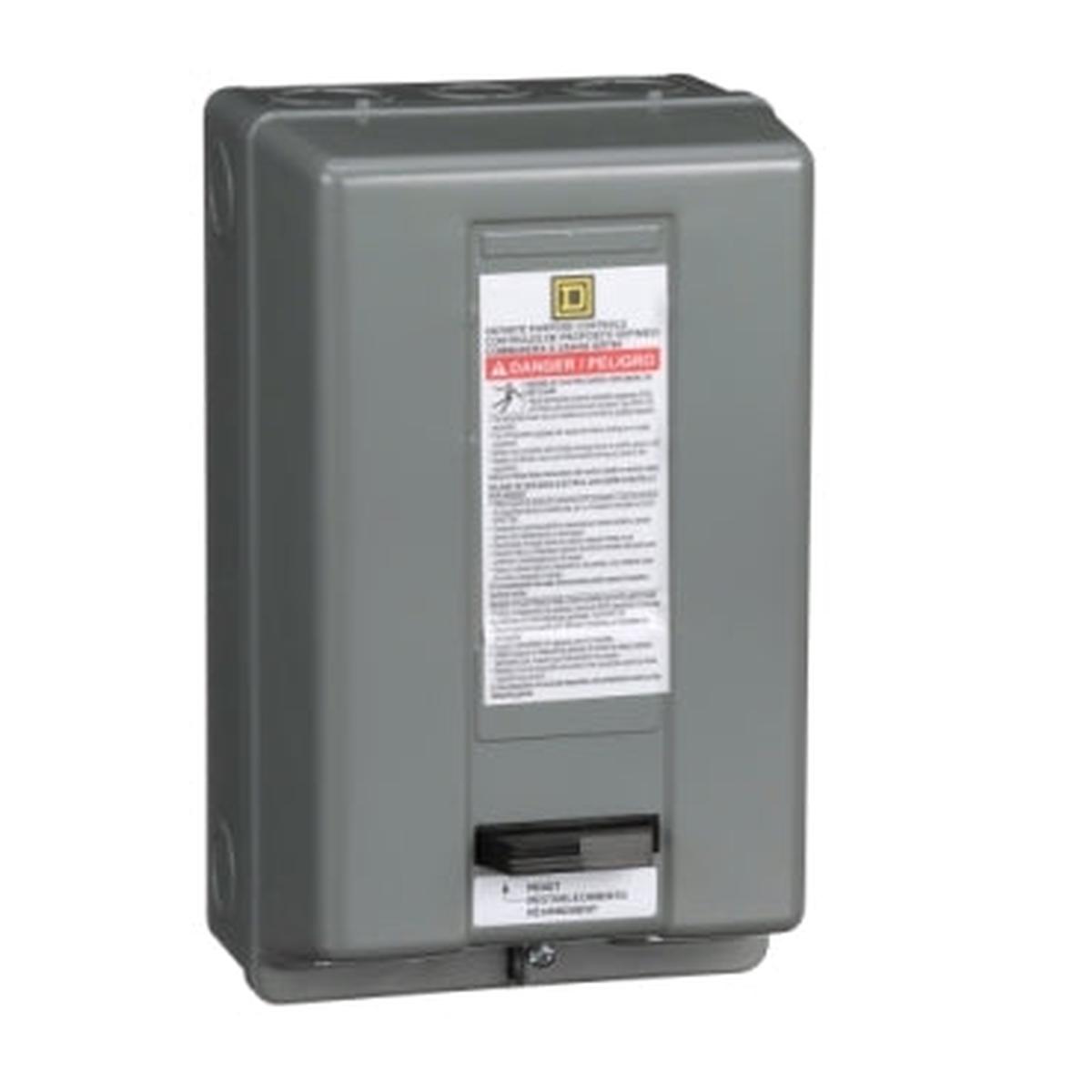

8911DPSG42V02 – Square D 40A 2-Pole 1-Phase Motor Control Starter 120VAC Coil NEMA 1

8911DPSG42V02

8911DPSG42V02 is a Square D definite purpose motor control starter designed for reliable motor protection and control.This magnetic type starter features a 40 amp full load rating with 2 poles and is intended for single-phase motor applications. It operates with a 120VAC coil voltage at 60 Hz (110VAC at 50 Hz) and is housed in a NEMA 1 painted sheet metal enclosure. The starter supports motor horsepower ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase, with a maximum voltage rating of 600 VAC. It includes a melting alloy overload for motor protection and meets NEMA construction standards.

Key Specifications
• Amperage: 40 Amps Full Load
• Voltage: 120 VAC Coil (110 VAC at 50 Hz)
• Poles: 2 Pole
• Phase: Single Phase
• Horsepower Rating: 3 HP at 115 VAC, 7.5 HP at 230 VAC
• Enclosure Type: NEMA 1 Painted Sheet Metal
• Interrupt Rating: 1000 VAC
• Trip Unit: Melting Alloy Overload
• Mounting Type: Panel Mount
• Certifications: Meets NEMA Standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8911DPSG42V02
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8911
• Type : DPS
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• Coil Voltage Maximum : 110 VAC
• Nema Rating : 1
• Enclosure : 1

Product Data

• UPC : 785901001515
• GTIN : 00785901001515
• Country of Origin : China
• Dimensions : 6.0 in x 10.0 in
• Weight : 2.57
• Certification : REACH, RoHS, UL Listed
