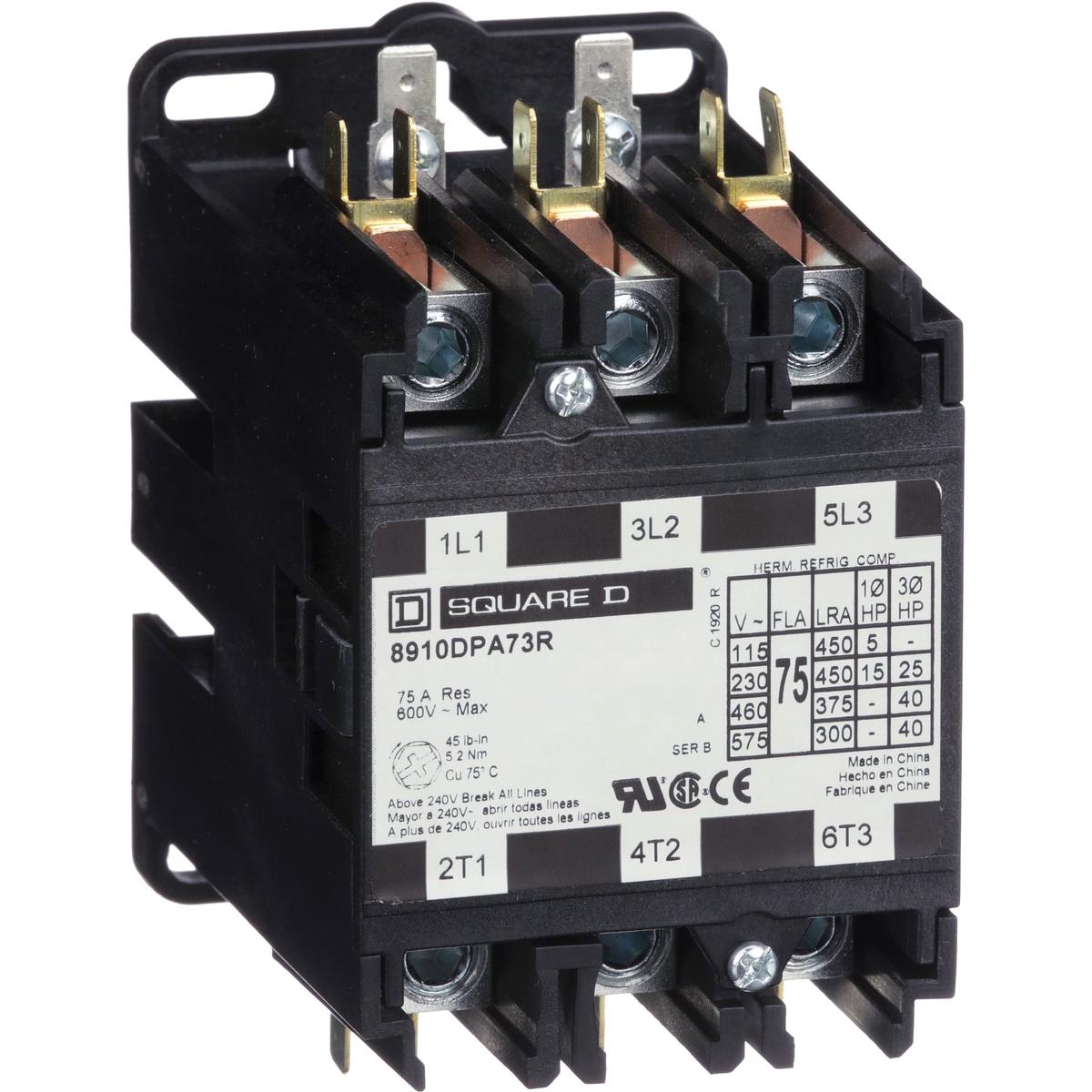

8910DPA73RV09 – Square D 75A 3 Pole Definite Purpose Contactor 208-240V Coil Open Frame Motor Control

8910DPA73RV09

8910DPA73RV09 is a Square D definite purpose contactor designed for motor control applications with a 75 amp rating and 3 poles.This contactor features a 208-240 VAC coil voltage, supports 3-phase motors up to 40 HP at 575 VAC, and is an open frame design suitable for non-reversing motor control. It includes quick connect terminals and binder head screws for easy wiring and installation.

Key Specifications
• Amperage: 75 Amps
• Voltage Rating: 600 VAC max
• Coil Voltage: 208-240 VAC, 50/60 Hz
• Poles: 3 Pole
• Horsepower Rating: 40 HP at 575 VAC, 3 phase
• Mounting Type: Open Frame
• Non-Reversing Contactor
• Quick Connect Terminals
• Binder Head Screws for Wiring
• Interrupt Rating: Definite Purpose
• Series/Frame: 8910 Series
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 208-240 VAC coil.

Specifications

• Part Number: 8910DPA73RV09
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor

Product Data

• UPC : 785901768371
• Country of Origin : United States
• Dimensions : 4.1 in x 3.65 in
• Weight : 7
• Certification : CSA, EU RoHS, REACH, UL Listed
