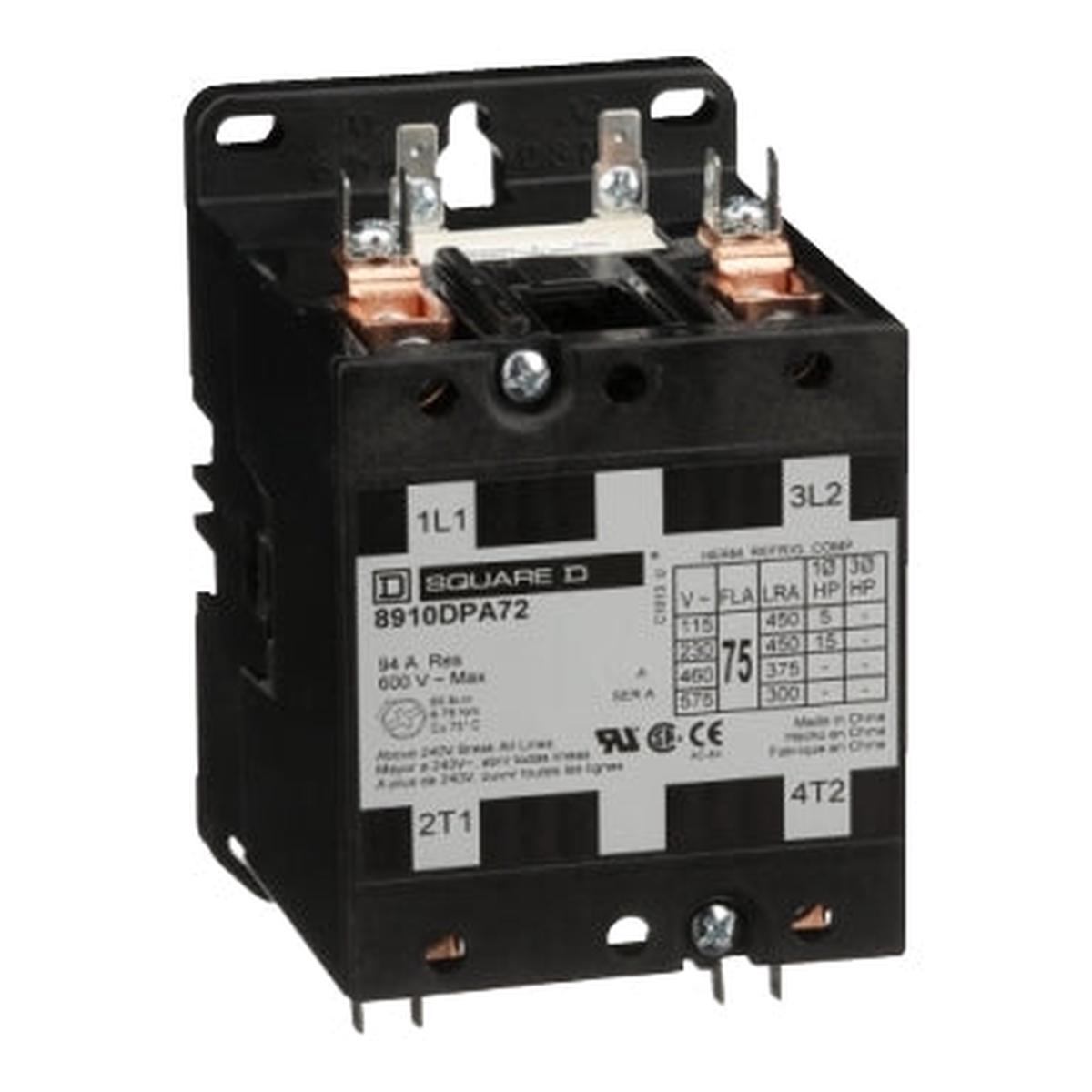

8910DPA72V09 – Square D 75A 2 Pole 1 Phase Definite Purpose Contactor 208-240V Coil 600VAC

8910DPA72V09

8910DPA72V09 is a Square D Class 8910 definite purpose contactor designed for reliable motor control in single-phase applications. This 2 pole, 75A contactor features a 208-240V AC coil and is rated for up to 600VAC, making it suitable for a wide range of industrial and commercial uses. It provides robust switching for inductive loads and is built for durability in demanding environments. This contactor is part of the Square D 8910 series, known for its high interrupt rating and quick connect terminals. It is UL Listed, CSA certified, and meets CE standards for safety and performance. The open frame design allows for easy installation and maintenance.

• Part Number: 8910DPA72V09
• Manufacturer: Square D
• Series/Frame: 8910
• Amperage: 75A
• Number of Poles: 2
• Voltage Rating: 600VAC
• Coil Voltage: 208-240V AC, 50/60Hz
• Mounting Type: Open Frame
• Interrupt Rating: High
• Load Type: Inductive
• Certifications: UL Listed, CSA, CE
• Quick Connect Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8910DPA72V09
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 75
• Phase : 1
• Poles : 2
• Horse Power : 5 hp 115 V AC, 1 phase-15 hp 230 V AC, 1 phase
• Aux Contacts : 2 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 75A Full Load Amps-Resistive 94A
• Coil Voltage Minimum : 220V

Product Data

• UPC : 785901177340
• GTIN : 00785901177340
• Country of Origin : China
• Dimensions : 3.39 in x 5.2 in
• Weight : 1.54
• Certification : CSA, RoHS, UL Listed
