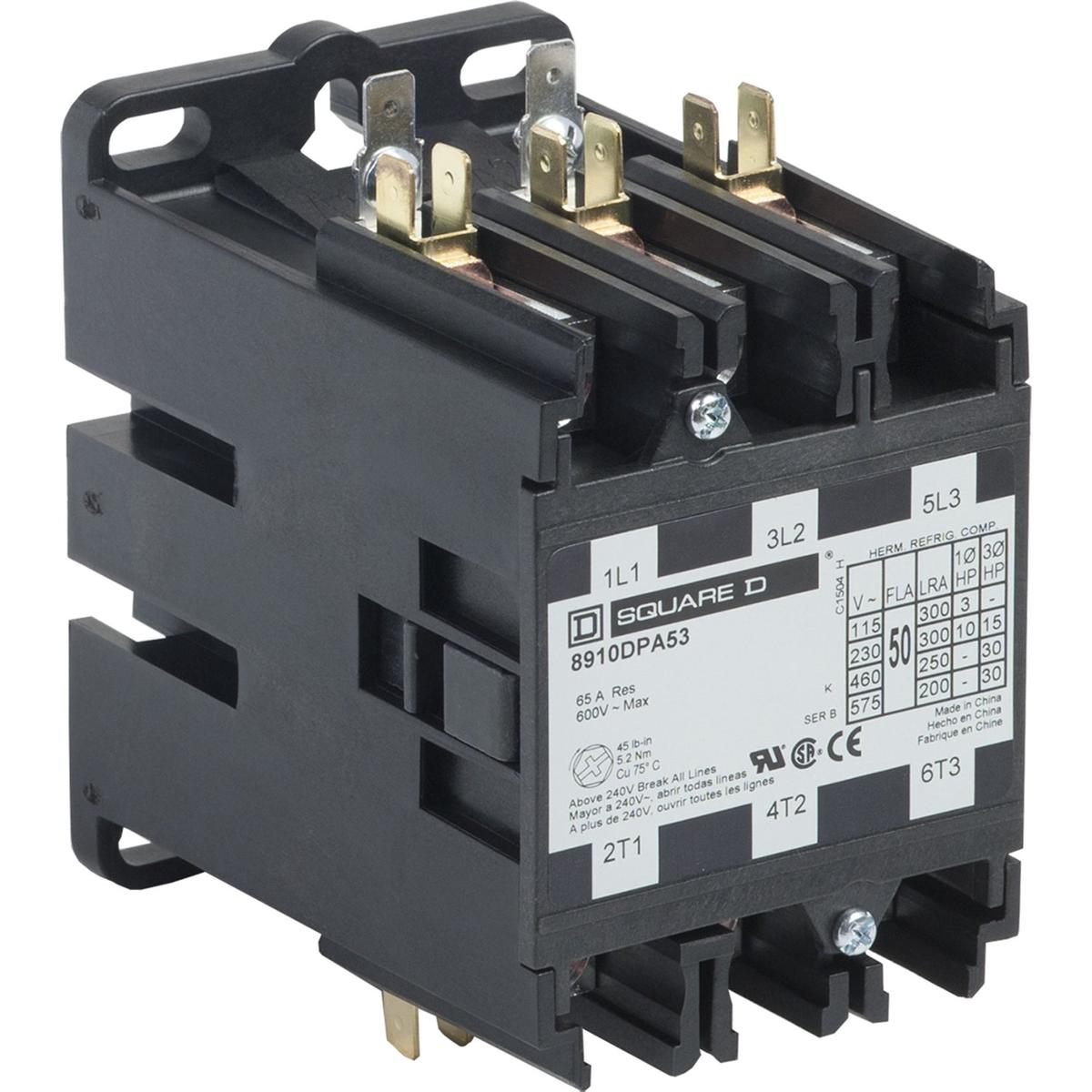

8910DPA53V04 – Square D 50A 277V 3 Pole Definite Purpose Contactor Open Type DPA Series

8910DPA53V04

8910DPA53V04 is a Square D definite purpose contactor designed for motor control applications with a 50 amp rating and 277V coil voltage.

This 3 pole, 3 phase contactor features an open type enclosure and is part of the DPA series. It supports a 50 amp inductive full load current and is rated for horsepower up to 15 HP at 230V three phase. The contactor operates at 50/60 Hz frequency and includes quick connect terminals for easy installation. It is non-reversing and suitable for various motor control needs.

Key Specifications
• Amperage: 50A inductive full load amps
• Voltage: 277V AC coil voltage
• Poles: 3
• Phase: 3
• Contactor Type: Definite Purpose
• Enclosure Type: Open
• Frequency: 50/60 Hz
• Horsepower Ratings: 15 HP @ 230V 3 phase, 30 HP @ 480V 3 phase
• Mounting Type: Quick Connect terminals
• Series/Frame: DPA
• Non-reversing operation
• Dimensions: Approx. 4.06″ H x 3.67″ D x 2.56″ W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8910DPA53V04
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA5
• Voltage : 6
• Amperage : 5
• Poles : 3
• Horse Power : 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-15 hp 230 V AC, 3 phases-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 277V
• Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
• Coil Voltage Minimum : 277V

Product Data

• UPC : 785901024507
• GTIN : 00785901024507
• Weight : 1 lb
• Certification : UL recognized CSA
