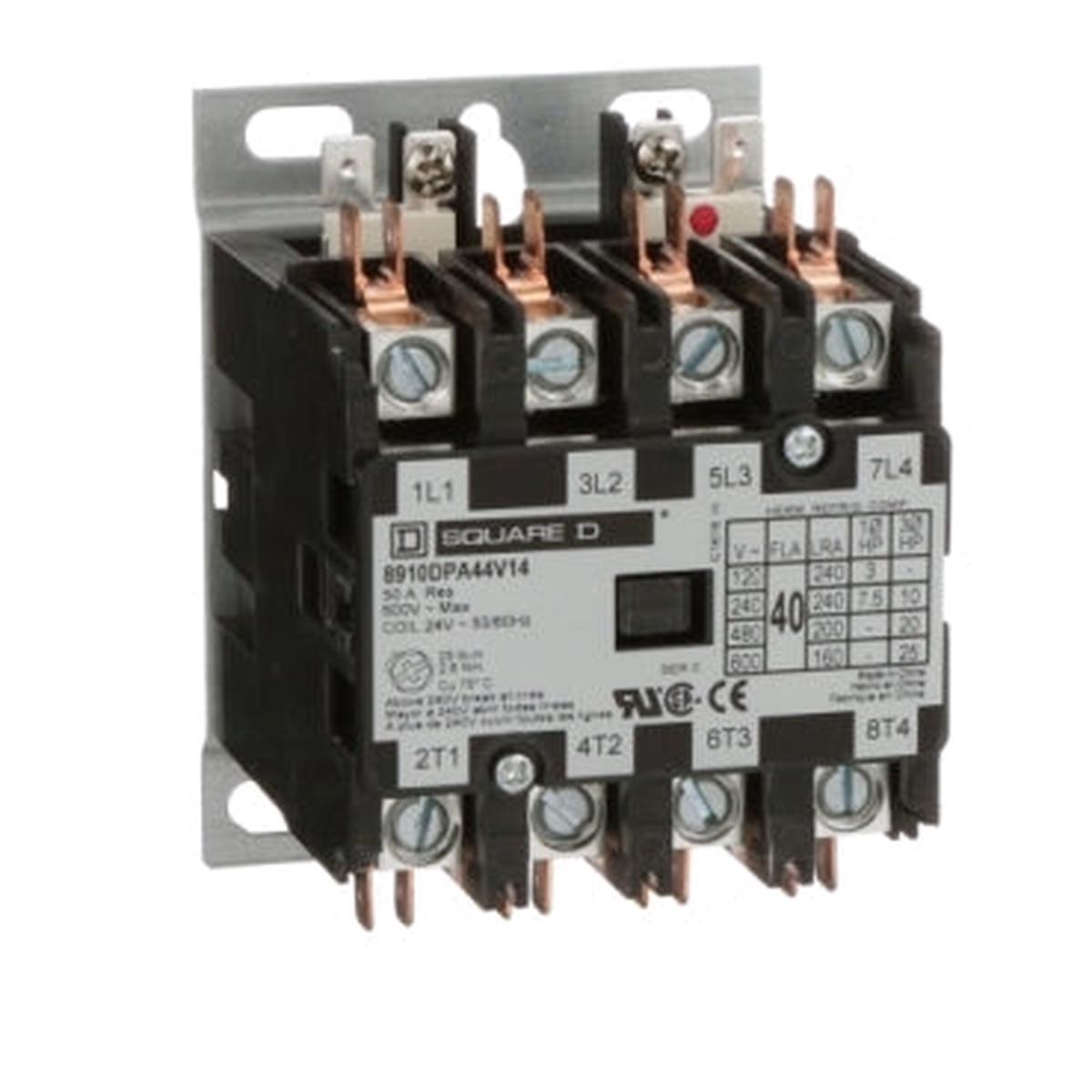

8910DPA44V14 – Square D 40A 24V 4-Pole Definite Purpose Contactor Motor Control

8910DPA44V14

8910DPA44V14 is a Square D definite purpose contactor designed for motor control applications with a 40 amp rating and 4 poles.

This contactor operates at 24V AC coil voltage and supports 3-phase motor loads up to 10 HP at 230V. It features a metal base mounting plate and double quick connect terminals for reliable installation. The device is part of the Square D 8910 series, suitable for panel mounting and designed for 50/60 Hz operation.

Key Specifications
• Amperage: 40A
• Voltage: 24V AC coil
• Poles: 4
• Phase: 3
• Horsepower Rating: 10 HP @ 230V
• Mounting Type: Panel mount with metal base plate
• Contactor Type: Definite Purpose
• Frequency: 50/60 Hz
• Terminals: Double quick connect
• Series/Frame: 8910

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 600 VAC coil.

Specifications

• Part Number: 8910DPA44V14
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 6
• Amperage : 4
• Poles : 4
• Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
• Aux Contacts : 4 NO
• Coil Voltage Maximum : 24V
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
• Coil Voltage Minimum : 24V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901024491
• GTIN : 00785901024491
• Country of Origin : China
• Dimensions : 3.17 in x 4 in
• Weight : 1 lb
• Certification : CSA, RoHS, UL Listed
