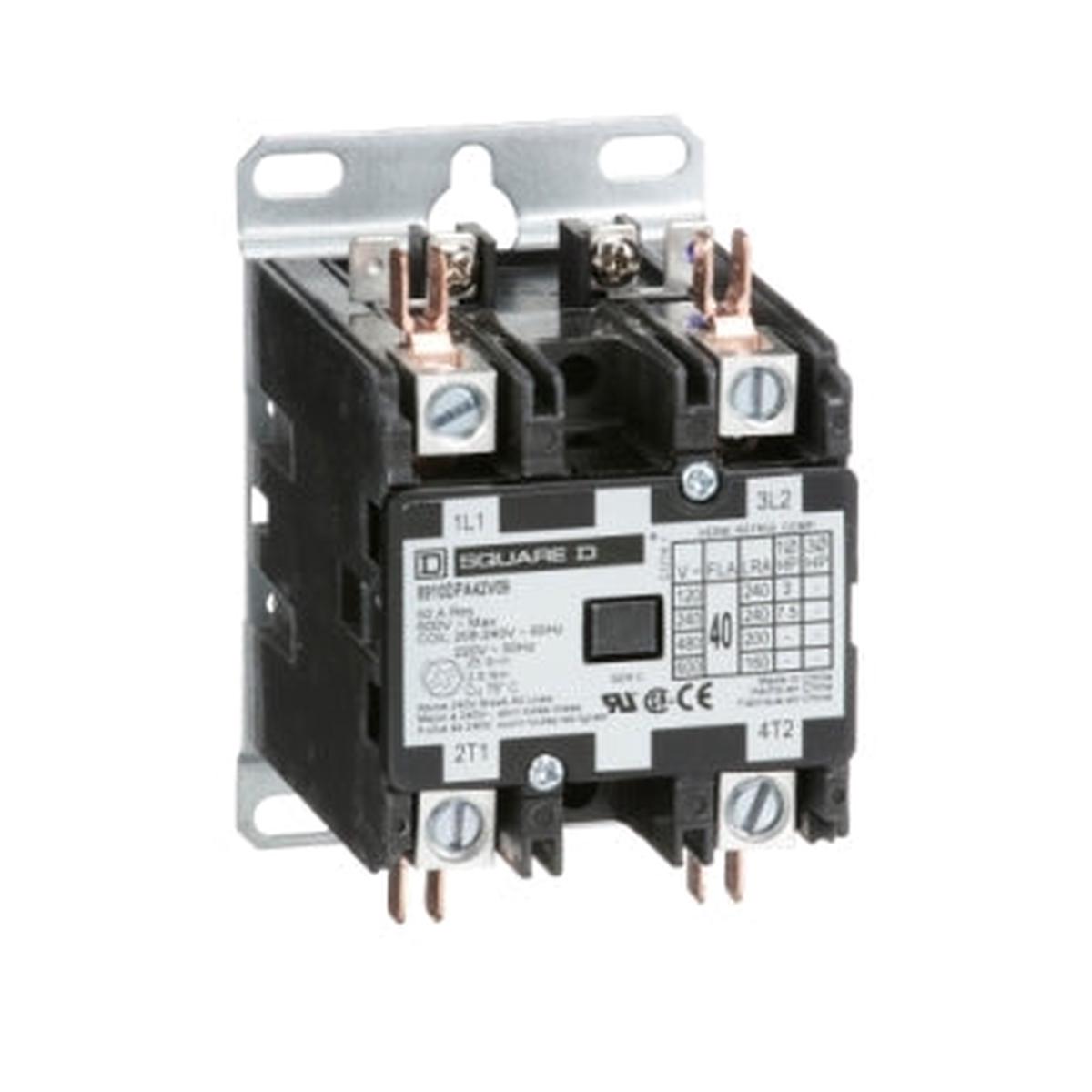

8910DPA42V09 – Square D 40A 2-Pole Definite Purpose Contactor 208-240V Coil 600V Panel Mount

8910DPA42V09

8910DPA42V09 is a Square D definite purpose contactor designed for motor control applications with a 40 amp rating and 2 poles.This Class 8910, Type DPA contactor features a 208-240 VAC coil voltage suitable for 1-phase systems, with a maximum voltage rating of 600 VAC. It supports motor horsepower ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC. The contactor has non-reversing 2NO contacts rated for 600 VAC, quick-connect terminals with binding head screws, and is panel mountable with an open enclosure. It is rated for 500,000 operating cycles and operates in temperatures from 0 to 65 degrees Celsius.

Key Specifications
• Amperage: 40 A
• Voltage: 600 VAC max, Coil Voltage 208-240 VAC
• Number of Poles: 2
• Mounting Type: Panel mount
• Contact Configuration: 2 Normally Open (2NO)
• Contact Rating: 600 VAC
• Horsepower Rating: 3 HP at 115 VAC, 7.5 HP at 230 VAC
• Operating Cycles: 500,000
• Enclosure Type: Open
• Operating Temperature: 0 to 65C
• Terminal Type: Quick Connect with Binding Head Screw
• Series: 8910, Type DPA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 220 VAC coil.

Specifications

• Part Number: 8910DPA42V09
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 40
• Poles : 2
• Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase
• Aux Contacts : 2 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
• Coil Voltage Minimum : 220V
• Frequency : 50 Hz

Product Data

• UPC : 785901073468
• GTIN : 00785901073468
• Country of Origin : China
• Dimensions : 2.5 in x 4 in
• Weight : 1 lb
• Certification : CSA, RoHS, UL Listed
