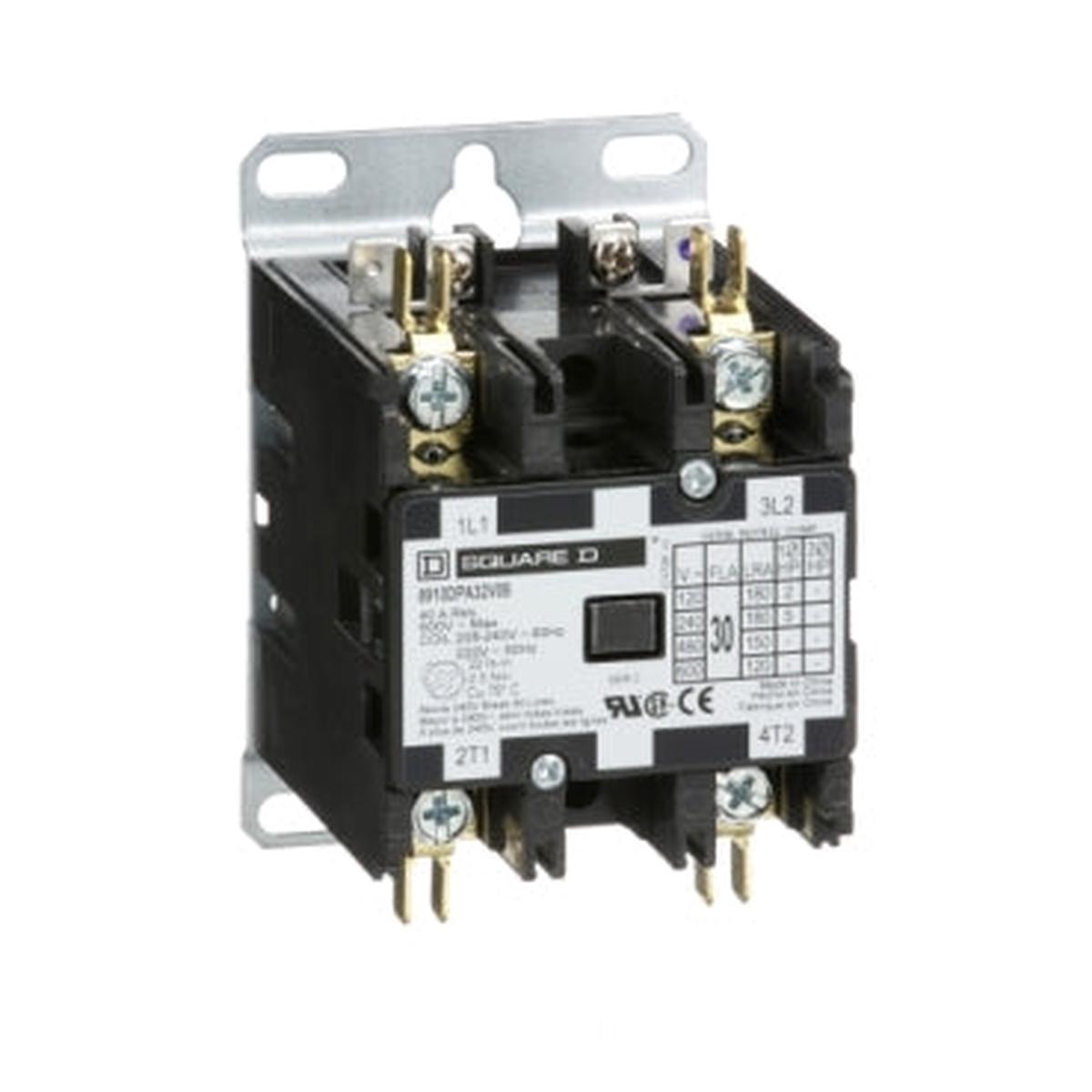

8910DPA32V09 – Square D 30A 240V 2-Pole Definite Purpose Contactor, 1 Phase, Panel Mount

8910DPA32V09

8910DPA32V09 is a Square D definite purpose contactor designed for motor control applications with a 30 amp rating and 2 poles.This contactor features a 208/240VAC coil voltage compatible with 50/60Hz operation, suitable for 1-phase systems. It supports up to 5HP at 230VAC and includes quick connect/binder head screw terminals for easy wiring. The device is panel mountable and UL recognized and CSA certified, making it ideal for heating, air conditioning, refrigeration, and food service equipment.

• Amperage: 30A
• Voltage: 208/240VAC coil
• Poles: 2
• Phase: 1
• Mounting Type: Panel mount
• Contactor Type: Definite Purpose
• Horsepower Rating: 5HP @ 230VAC
• Connection: Quick connect/binder head screw
• Certifications: UL recognized, CSA certified
• Frequency: 50/60Hz
• Frame/Series: 8910 DPA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 220 VAC coil.

Specifications

• Part Number: 8910DPA32V09
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
• Aux Contacts : 2 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 220V
• Frequency : 50 Hz

Product Data

• UPC : 785901749813
• GTIN : 00785901749813
• Country of Origin : China
• Dimensions : 2.5 in x 4 in
• Weight : 1
• Certification : CSA, RoHS, UL Listed
