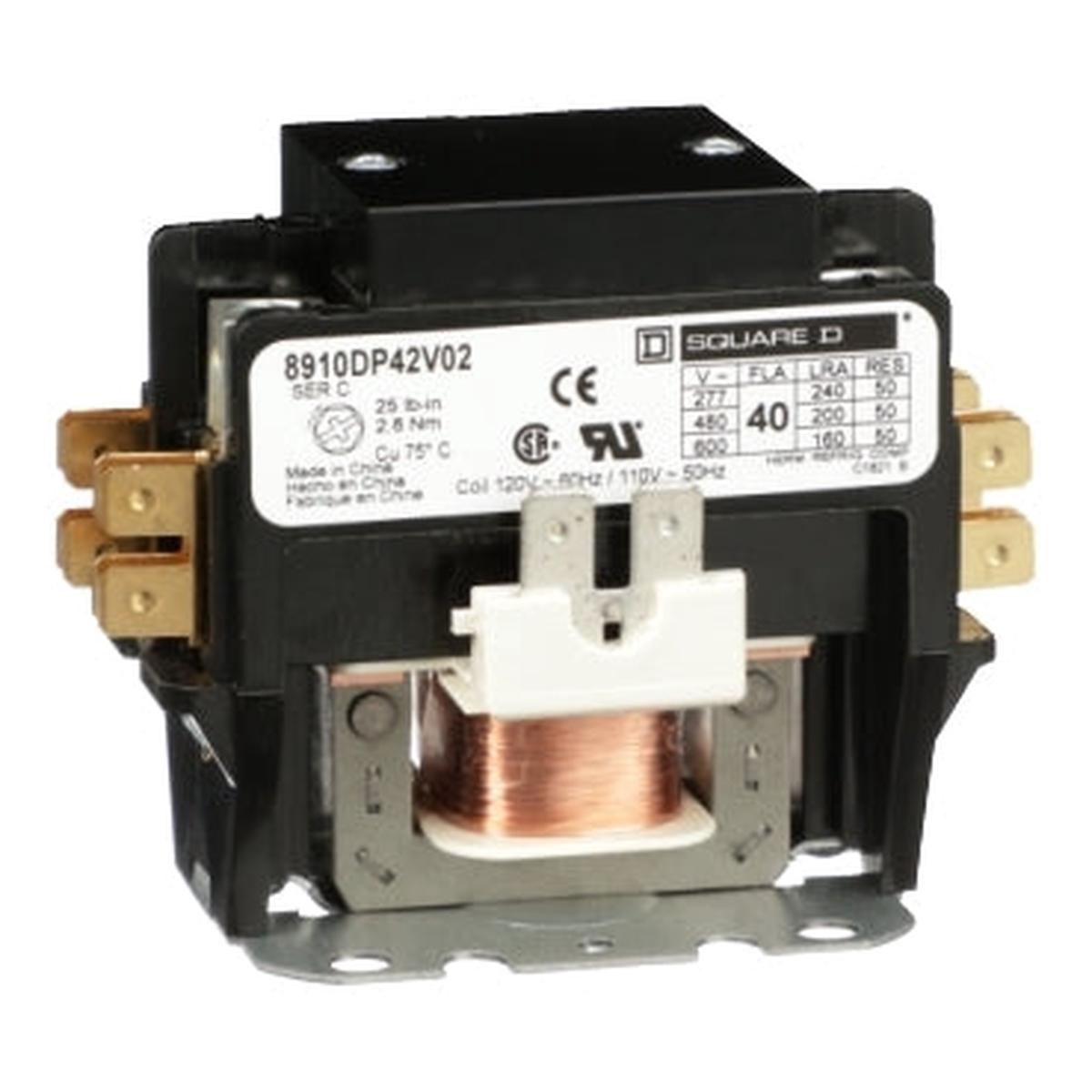

8910DP42V02 – Square D 40A 2 Pole 110/120V AC Definite Purpose Contactor 600V 1 Phase

8910DP42V02

8910DP42V02 is a Square D Class 8910 Definite Purpose Contactor designed for reliable motor control in single-phase applications. This 2-pole contactor features a 40A current rating and is rated for 600V AC operation, making it suitable for a wide range of industrial and commercial uses. The 8910DP42V02 includes a 110/120V AC 50/60 Hz control coil and quick connect terminals for easy installation. It is UL listed, CSA certified, and CE marked for safety and compliance. The contactor is non-reversing and features 2 normally open (NO) poles for straightforward motor starting and stopping.

• Part Number: 8910DP42V02
• Manufacturer: Square D (Schneider Electric)
• Series: Class 8910
• Type: Definite Purpose Contactor
• Rated Current: 40A
• Rated Voltage: 600V AC
• Number of Poles: 2
• Control Circuit Voltage: 110/120V AC 50/60 Hz
• Motor Power: 2 HP @ 115V AC, 5 HP @ 230V AC
• Mounting Type: Quick Connect Terminals
• Interrupt Rating: 200A @ 460V AC, 160A @ 575V AC, 240A @ 277V AC
• Certifications: UL Listed, CSA, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8910DP42V02
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DP
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• Temp Rating : -13158 F (-2570 C)
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase
• Aux Contacts : 2 NO
• Coil Voltage Maximum : 120V
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
• Coil Voltage Minimum : 110V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901024187
• GTIN : 00785901024187
• Country of Origin : China
• Dimensions : 2.16 in x 3.29 in
• Weight : 1
• Temp Rating : -13158 F (-2570 C)
• Certification : CSA, RoHS, UL Listed
