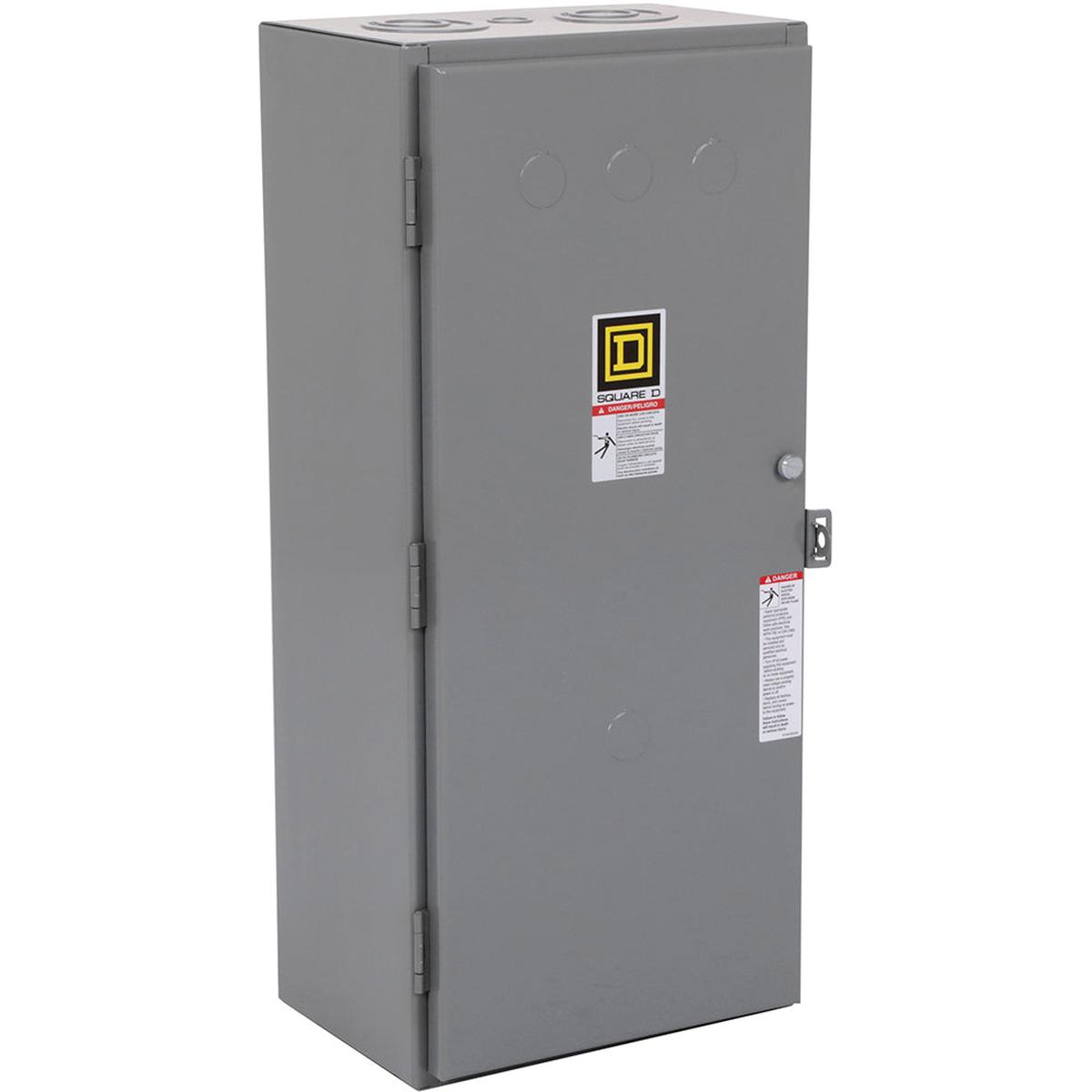

8903SQG2V03 – Square D 3 Pole 100A 240VAC Type S Lighting Contactor, Electrically Held, NEMA 1 Enclosure, UL/CSA

8903SQG2V03

8903SQG2V03 is a Square D Type S multipole lighting contactor designed for reliable motor control in demanding applications.

This electrically held, 3-pole contactor is rated for 100A at 240VAC, housed in a durable NEMA 1 enclosure, and is ideal for switching high-current lighting loads. The unit features a 220/240VAC 50/60Hz coil, is UL and CSA certified, and is built for easy maintenance with replaceable coils and contacts.

Key Specifications

• Manufacturer: Square D
• Part Number: 8903SQG2V03
• Category: Motor Control / Lighting Contactor
• Amperage: 100A
• Voltage: 240VAC (600VAC max)
• Poles: 3
• Mounting Type: Panel or surface (NEMA 1 enclosure)
• Interrupt Rating: Not specified in available data
• Series/Frame: Type S, 8903
• Trip Unit: Not applicable (contactor, not circuit breaker)
• Certifications: UL Listed, CSA Certified
• Coil Voltage: 220/240VAC 50/60Hz
• Enclosure: NEMA 1
• Electrical Connection: Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Type S Multipole Lighting Contactor includes a 220 VAC coil.

Specifications

• Part Number: 8903SQG2V03
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : S
• Amperage : 100
• Phase : 3
• Poles : 3
• Aux Contacts : Without
• Coil Voltage Maximum : 240
• Frequency : 50/60 Hz

Product Data

• UPC : 78590162592
• GTIN : 00785901625926
• Country of Origin : Mexico
• Dimensions : 286 mm x 639 mm
• Weight : 17.07
• Certification : UL Listed; CSA
