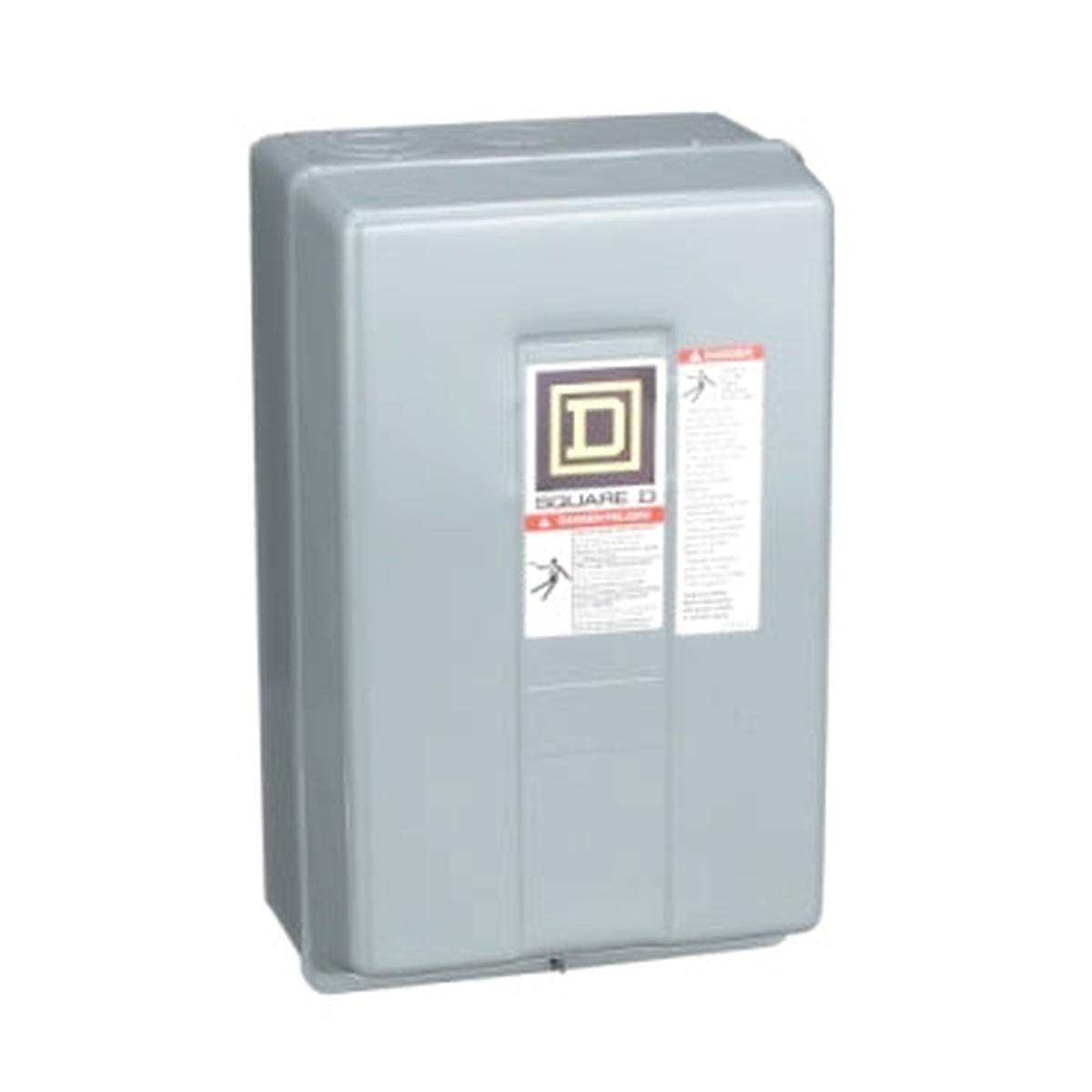

8903LXG80V04 – Square D 600V 3P 30A 8 Pole Mechanically Held Lighting Contactor NEMA 1

8903LXG80V04

8903LXG80V04 is a Square D Class 8903 8 pole, 30A, 600V, 3-phase mechanically held lighting contactor designed for reliable motor and lighting control applications. This contactor features a 277VAC coil and is built with a NEMA 1 enclosure for standard indoor use. The 8903LXG80V04 is part of the Square D Class 8903 series, offering robust performance for commercial and industrial lighting and motor control. Its mechanically held design ensures energy efficiency and long service life, while the 8-pole configuration provides flexibility for complex control circuits. The contactor is suitable for surface mounting and features silver cadmium oxide double break contacts for reliable switching.

• Part Number: 8903LXG80V04
• Manufacturer: Square D
• Series/Frame: Class 8903
• Amperage: 30A
• Voltage: 600VAC
• Poles: 8
• Phase: 3
• Mounting Type: Surface
• Coil Voltage: 277VAC 60Hz
• Enclosure: NEMA 1
• Contact Type: Mechanically Held
• Application: Lighting and Motor Control

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 277 VAC coil.

Specifications

• Part Number: 8903LXG80V04
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : LX
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 8
• Coil Voltage Maximum : 277

Product Data

• UPC : 785901057413
• GTIN : 00785901057413
• Country of Origin : Mexico
• Dimensions : Height 12.68 in (322 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 5.32
• Certification : UL listed – CSA
