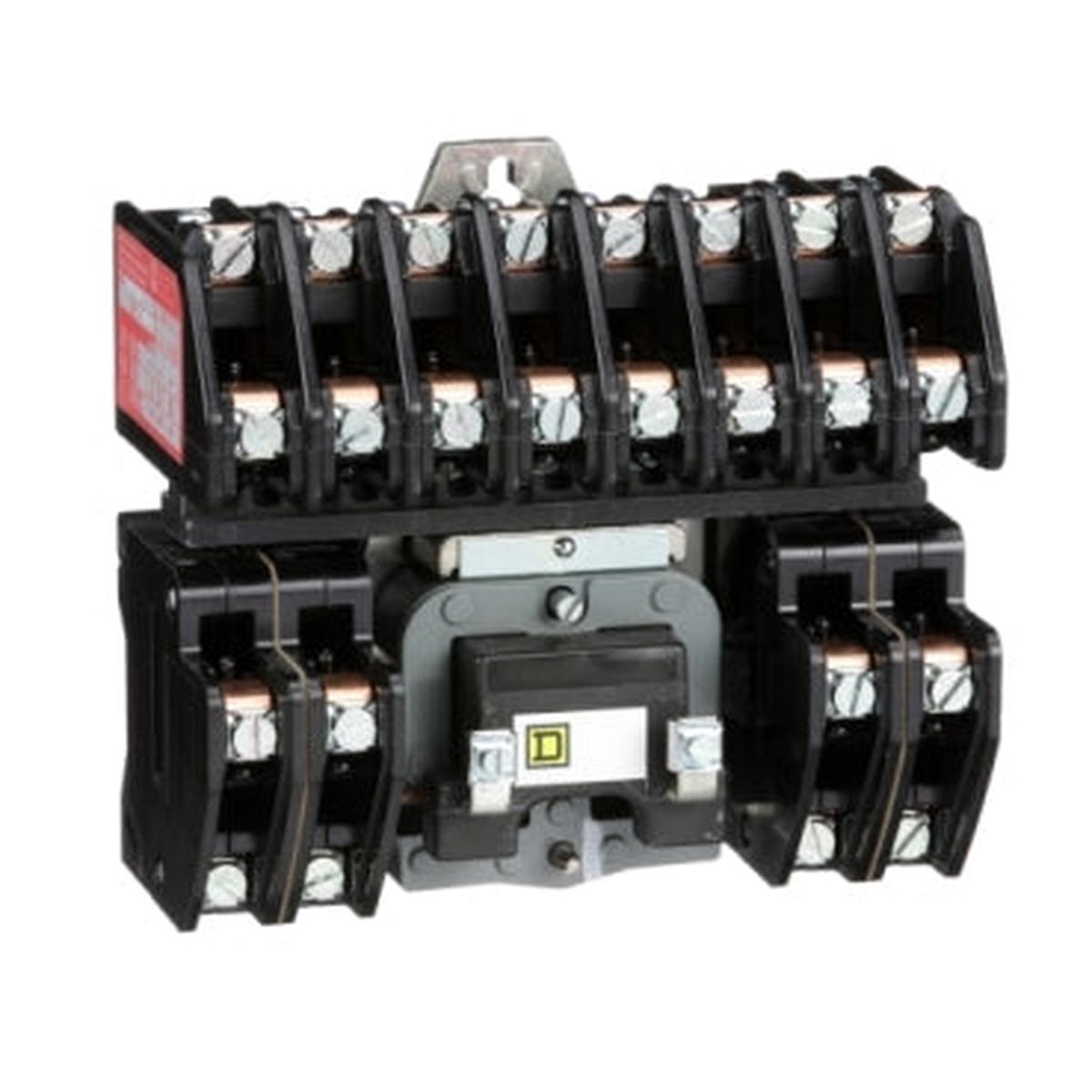

8903LO1200V04 – Square D 12 Pole 30A 600V Electrically Held Lighting Contactor, 277V Coil, Class 8903

8903LO1200V04

8903LO1200V04 is a Square D Class 8903 electrically held lighting contactor designed for motor control applications.This 12-pole, 3-phase contactor operates at 600 VAC with a 277 V coil voltage and supports a full load current of 30 amps. It features 12 normally open (NO) contacts and is built for open type mounting. The contactor is part of the Type L series and is suitable for lighting control with a coil rated for 60 Hz operation. It is engineered for reliable switching in commercial and industrial environments.

• Manufacturer: Square D
• Part Number: 8903LO1200V04
• Amperage: 30 A
• Voltage: 600 VAC
• Coil Voltage: 277 V AC, 60 Hz
• Number of Poles: 12
• Contact Configuration: 12 Normally Open (NO)
• Type: Electrically Held Lighting Contactor, Type L
• Mounting: Open Type
• Series/Frame: Class 8903
• Phase: 3
• Interrupt Rating: Not explicitly specified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.

Specifications

• Part Number: 8903LO1200V04
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : L
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 12
• Coil Voltage Maximum : 277
• Full Load Amps : 30 A
• Frequency : 60 Hz

Product Data

• UPC : 785901022947
• GTIN : 00785901022947
• Country of Origin : Mexico
• Dimensions : 5.63 in x 5.0 in
• Weight : 1.98
• Certification : CSA, REACH, RoHS, UL Listed
