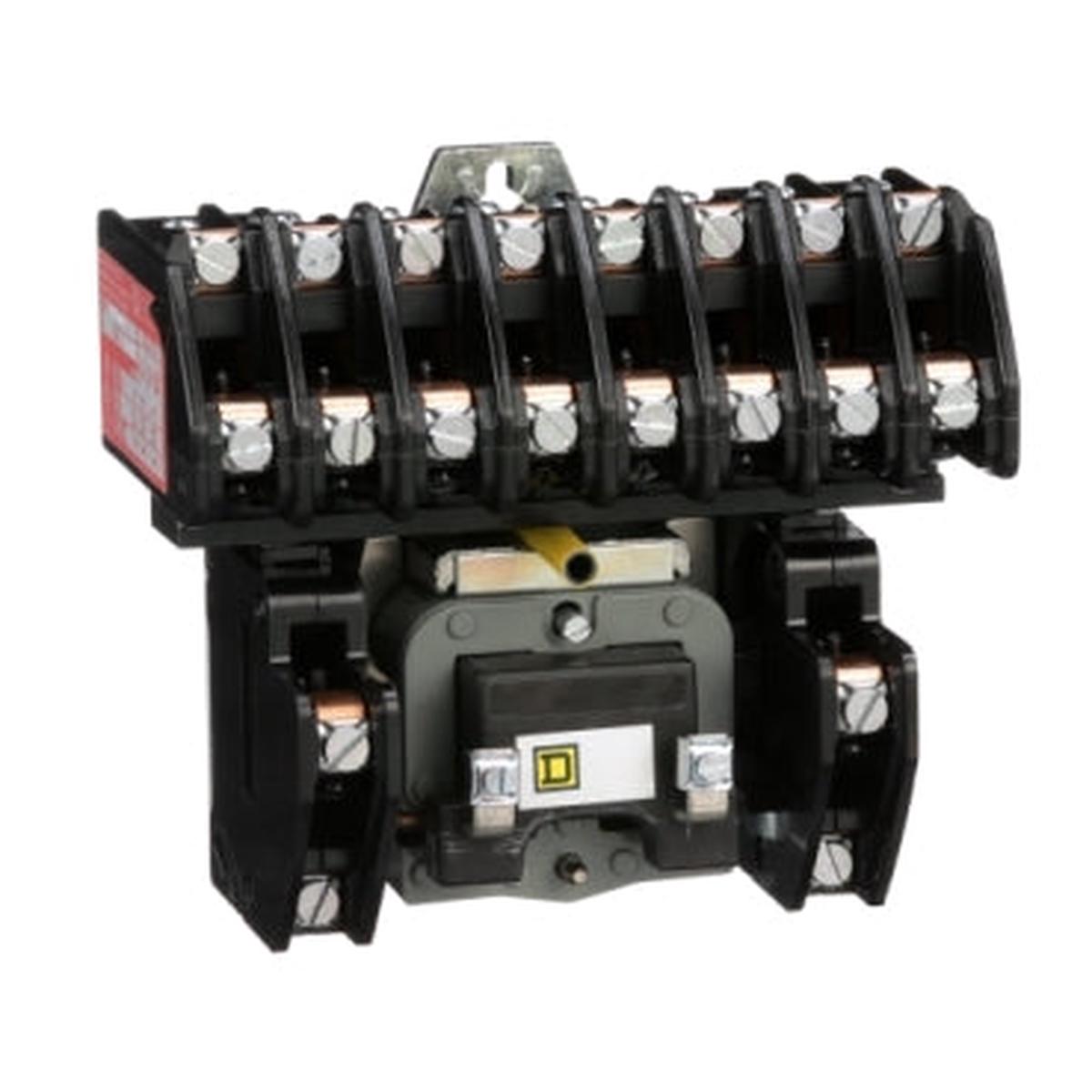

8903LO1000V04 – Square D 30A 600V 10-Pole Lighting Contactor Type L Electrically Held 277V Coil Open Frame

8903LO1000V04

8903LO1000V04 is a Square D 10-pole lighting contactor designed for electrically held operation with a 30 amp rating and 600 volt capacity.8903LO1000V04 features a Type L multipole design suitable for lighting control applications. It operates with a 277 VAC coil at 60 Hz and supports 3-phase power. The contactor is open frame style, compatible with fluorescent, incandescent, and LED lighting loads, and is rated for 30 amps continuous current.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 600 VAC
• Number of Poles: 10
• Coil Voltage: 277 VAC, 60 Hz
• Type: Electrically Held Lighting Contactor
• Frame/Series: Class 8903, Type L
• Mounting: Open Frame
• Phase: 3-Phase
• Compatible Loads: Fluorescent, Incandescent, LED
• Weight: Approximately 4 lbs
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.

Specifications

• Part Number: 8903LO1000V04
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : L
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 10
• Coil Voltage Maximum : 277
• Full Load Amps : 30 A
• Frequency : 60 Hz

Product Data

• UPC : 785901022930
• GTIN : 00785901022930
• Country of Origin : Mexico
• Dimensions : 5.63 in x 5.0 in
• Weight : 1.8
• Certification : CSA, REACH, RoHS, UL Listed
