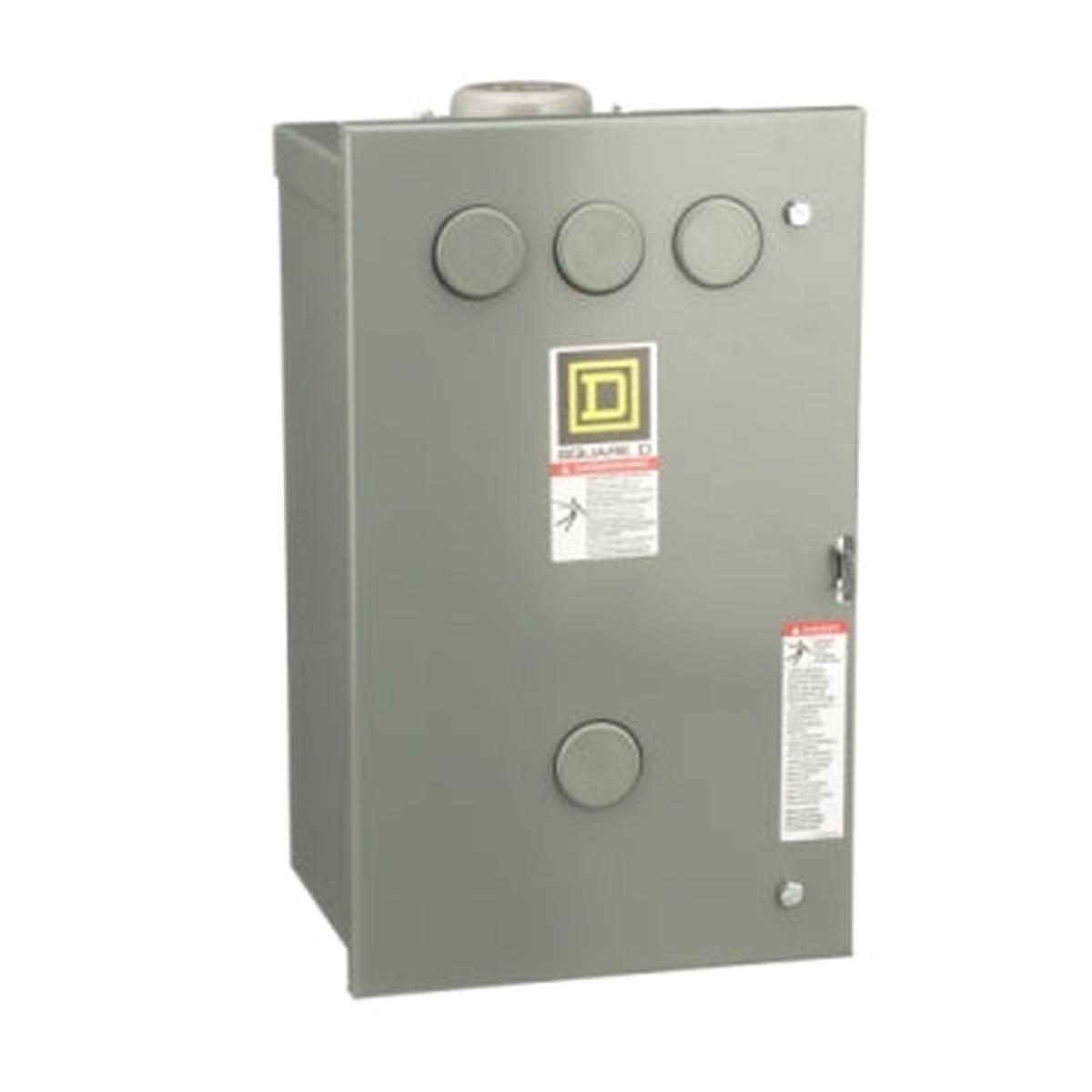

8903LH80V04 – Square D 30A 600V 8-Pole Type L Electrically Held Lighting Contactor NEMA 3R

8903LH80V04

8903LH80V04 is a Square D Type L electrically held multipole lighting contactor designed for reliable motor control applications.This contactor features 8 poles and supports 30 amps at 600 volts with a 277 VAC 60 Hz coil. It is built to NEMA 3R standards for outdoor and indoor use, providing robust protection against environmental conditions. The device is part of Square D’s Class 8903 series, known for durable and efficient lighting contactors.

• Manufacturer: Square D
• Part Number: 8903LH80V04
• Series: Class 8903
• Type: L Multipole Lighting Contactor
• Poles: 8
• Amperage: 30A
• Voltage: 600V
• Coil Voltage: 277 VAC, 60 Hz
• Mounting: NEMA 3R enclosure rating
• Electrically held

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8903LH80V04
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8903
• Type : L
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 8
• Coil Voltage Maximum : 277

Product Data

• UPC : 078590118279
• GTIN : 00785901182795
• Dimensions : Height 16.30 in (414 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 21.78
• Certification : UL listed – CSA
