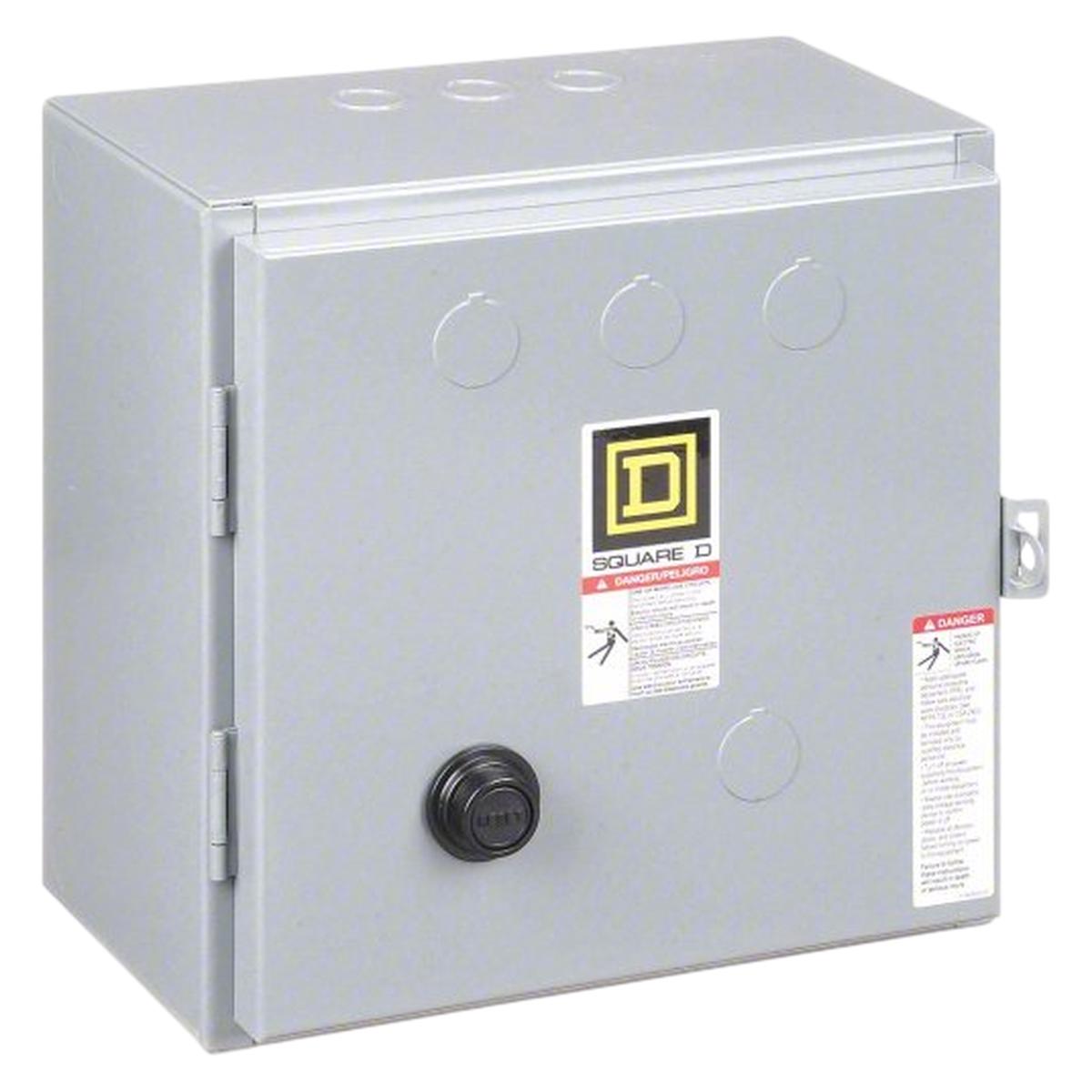

8736SCG8V02S – Square D 27A 600VAC 3 Pole NEMA 1 Reversing Magnetic Motor Starter

8736SCG8V02S

8736SCG8V02S is a Square D NEMA Type S reversing magnetic motor starter designed for reliable three-phase motor control in industrial and commercial applications. This 3 pole, 27A, 600VAC reversing starter features a 120VAC coil, melting alloy overload protection, and NEMA 1 enclosure for indoor use. It is suitable for motors up to 7.5 HP at 200/230VAC and 10 HP at 460/575VAC, with a separate control circuit for flexible installation.

• Part Number: 8736SCG8V02S
• Manufacturer: Square D
• Amperage Rating: 27A
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: Horizontal
• Interrupt Rating: 50 kA SCCR
• Series/Frame: NEMA Size 1, Type S
• Overload Type: Melting Alloy
• Enclosure: NEMA 1
• Control Circuit: Separate, 120VAC coil
• Certifications: UL Listed, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8736SCG8V02S
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8736
• Type : SCG
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase – 208V 7 1/2 hp HP @ 3 Phase – 240V 7 1/2 hp HP @ 3 Phase – 480V 10 hp
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 110 VAC
• Coil Voltage Minimum : 110
• Nema Rating : 1
• Nema Starter Size : 1
• Enclosure : 1

Product Data

• UPC : 78590187432
• GTIN : 00785901874324
• Country of Origin : Mexico
• Dimensions : 11.88 in x 11.88 in
• Weight : 9.7
• Certification : CSA, UL Listed
