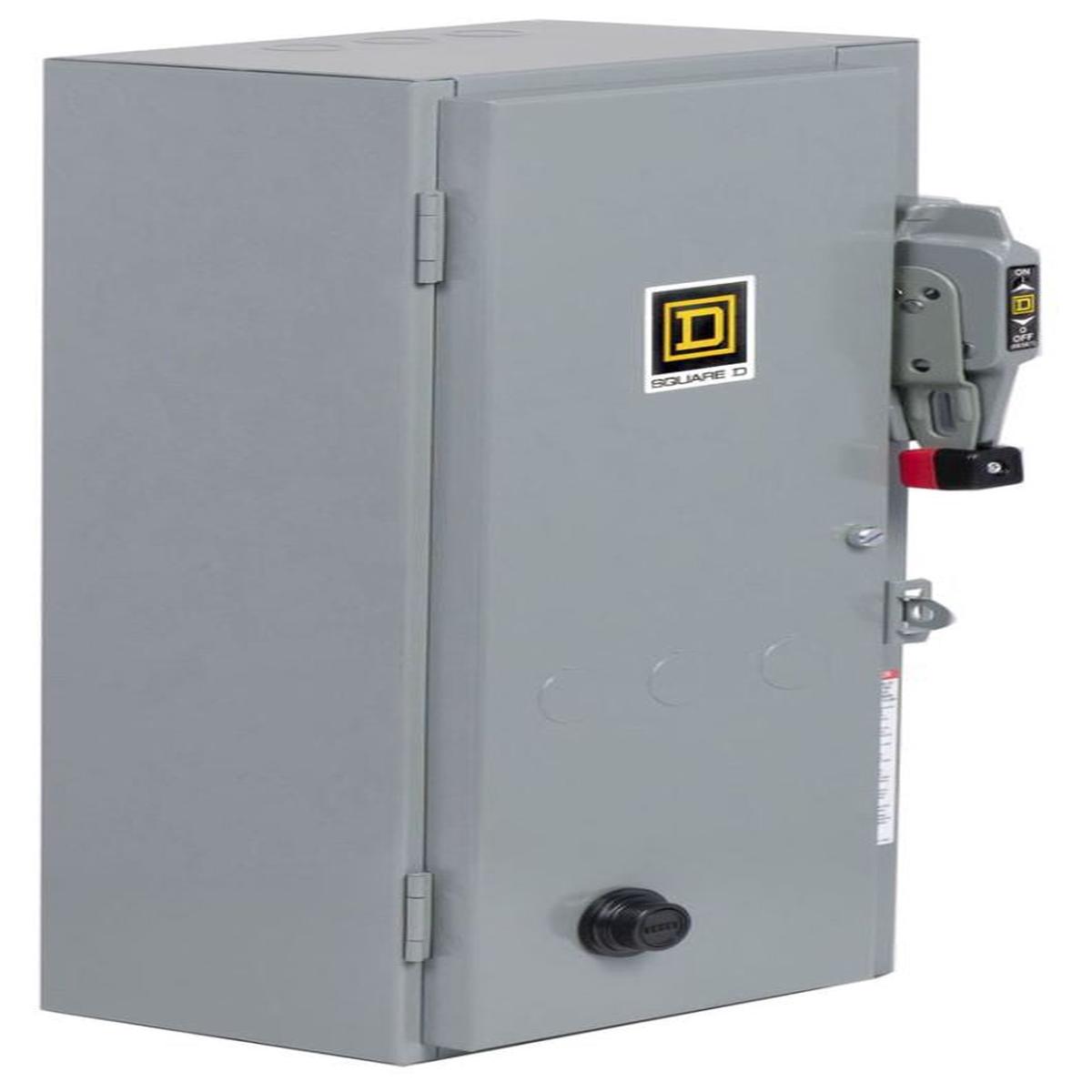

8539SCG44V02S – Square D NEMA 1 Combination Motor Starter, 27A, 600VAC, 3 Pole, Non-Reversing, 120VAC Coil, HHL Electronic Motor Circuit Protector, Size 1, Indoor, General Purpose

8539SCG44V02S

8539SCG44V02S Square D NEMA 1 combination motor starter provides reliable motor control and protection for industrial and commercial applications.

This non-reversing, full voltage starter features a 3-pole design, 27A continuous rating, and 600VAC maximum voltage. It includes a HHL electronic motor circuit protector, 120VAC coil, and is housed in a NEMA 1 general purpose enclosure for indoor use. The starter is designed for easy installation, maintenance, and field modifications, with a sturdy, serviceable construction and customizable overload relay options.

Key Specifications
• Manufacturer: Square D
• Part Number: 8539SCG44V02S
• Amperage: 27A continuous
• Voltage: 600VAC maximum, 120VAC coil
• Poles: 3
• Mounting Type: Panel or surface (NEMA 1 enclosure)
• Interrupt Rating: Not specified in available data
• Series/Frame: Type S, Size 1
• Trip Unit: HHL electronic motor circuit protector
• Certifications: NEMA 1, seismic tested for critical applications
• Application: Starting and stopping AC squirrel cage motors, general purpose, indoor
• Features: External reset, separate control circuit, serviceable contacts and coils
• Environmental: NEMA 1 enclosure, suitable for harsh industrial environments

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Non-Reversing

Specifications

• Part Number: 8539SCG44V02S
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor starter controls
• Family : 8539
• Voltage : 600 600
• Aux Contacts : Without
• Coil Voltage Maximum : 110 VAC
• Nema Starter Size : 1

Product Data

• UPC : 785901569213
• GTIN : 785901569213
• Country of Origin : Mexico
• Dimensions : 22.5 in H x 9.5 in W x 9.84 in D
• Weight : 5.19
• Certification : CSA, REACH, UL Listed
