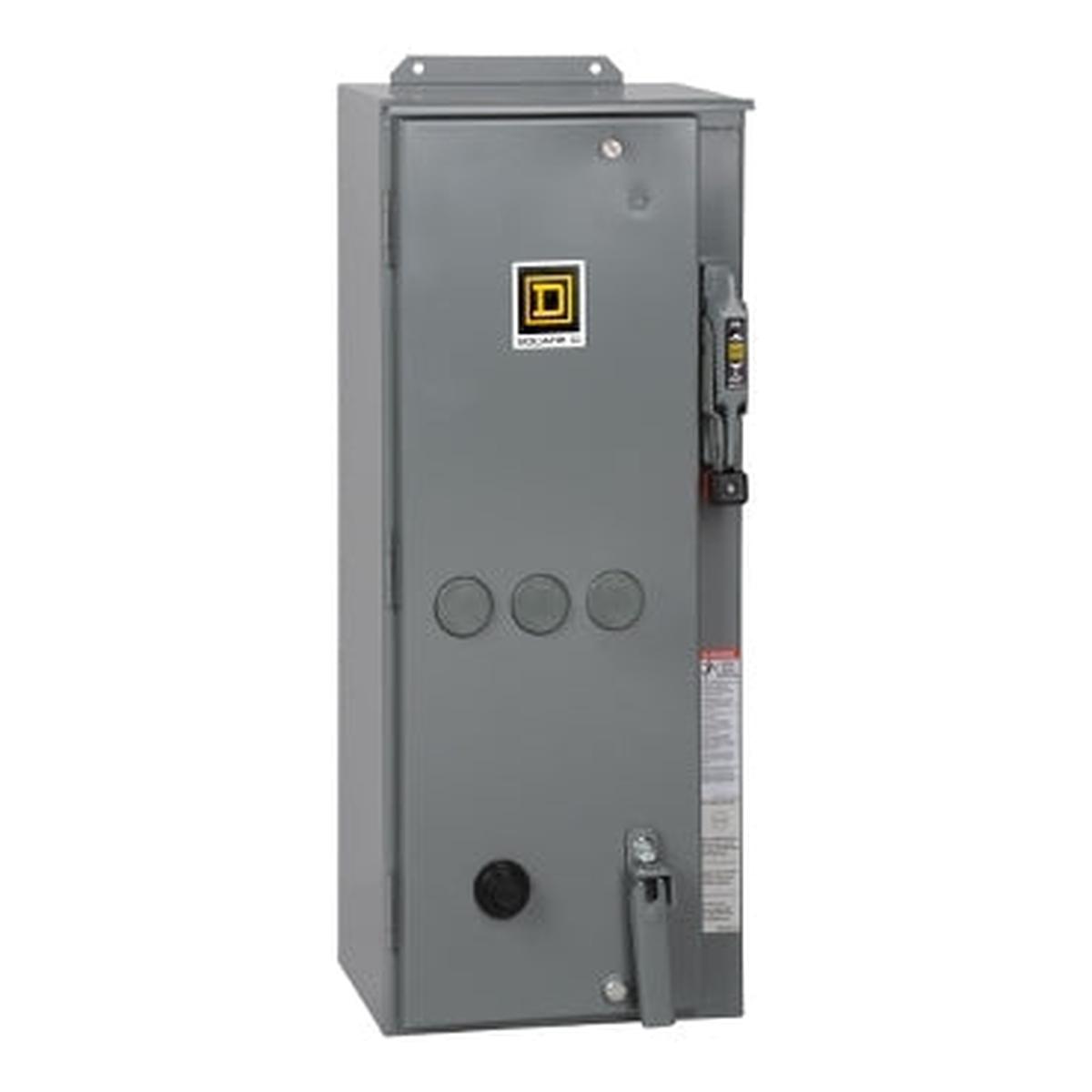

8538SDA22V02S – Square D NEMA 2 Motor Control Starter 10HP 120VAC 3-Pole

8538SDA22V02S

8538SDA22V02S is a Square D NEMA Size 2 combination motor control starter designed for non-reversing AC squirrel cage motor applications up to 10 horsepower at 240VAC three phase. This Type S starter integrates motor overload and short circuit protection into a single NEMA 12 enclosure, combining a magnetic contactor with thermal melting alloy overload relays and a fusible disconnect switch rated at 60 amperes. The unit operates at 50/60 Hz frequency with a 120VAC coil voltage at 60Hz and 110VAC at 50Hz, providing reliable motor starting and stopping for indoor general purpose, construction, infrastructure, and industrial applications. Manufactured in accordance with NEMA standards and UL Listed, this starter features a separate control circuit and external reset capability for enhanced operational flexibility and safety.

• Part Number: 8538SDA22V02S
• Manufacturer: Square D
• NEMA Size: 2
• Enclosure Type: NEMA 12
• Motor Power: 10 hp at 240VAC, 3-phase
• Number of Poles: 3
• Coil Voltage: 120VAC at 60Hz, 110VAC at 50Hz
• Disconnect Type: Fusible, 60 Ampere Class H and K
• Overload Relay: Thermal Melting Alloy
• Frequency Rating: 50/60 Hz
• Action: Non-Reversing
• Control Circuit: Separate

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8538SDA22V02S
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter

Product Data

• GTIN : 00785901021384
• Dimensions : Depth 2.19 in (55.63 mm) Width 5.25 in (133.35 mm) Height 5.25 in (133.35 mm)
• Weight : 43.8
