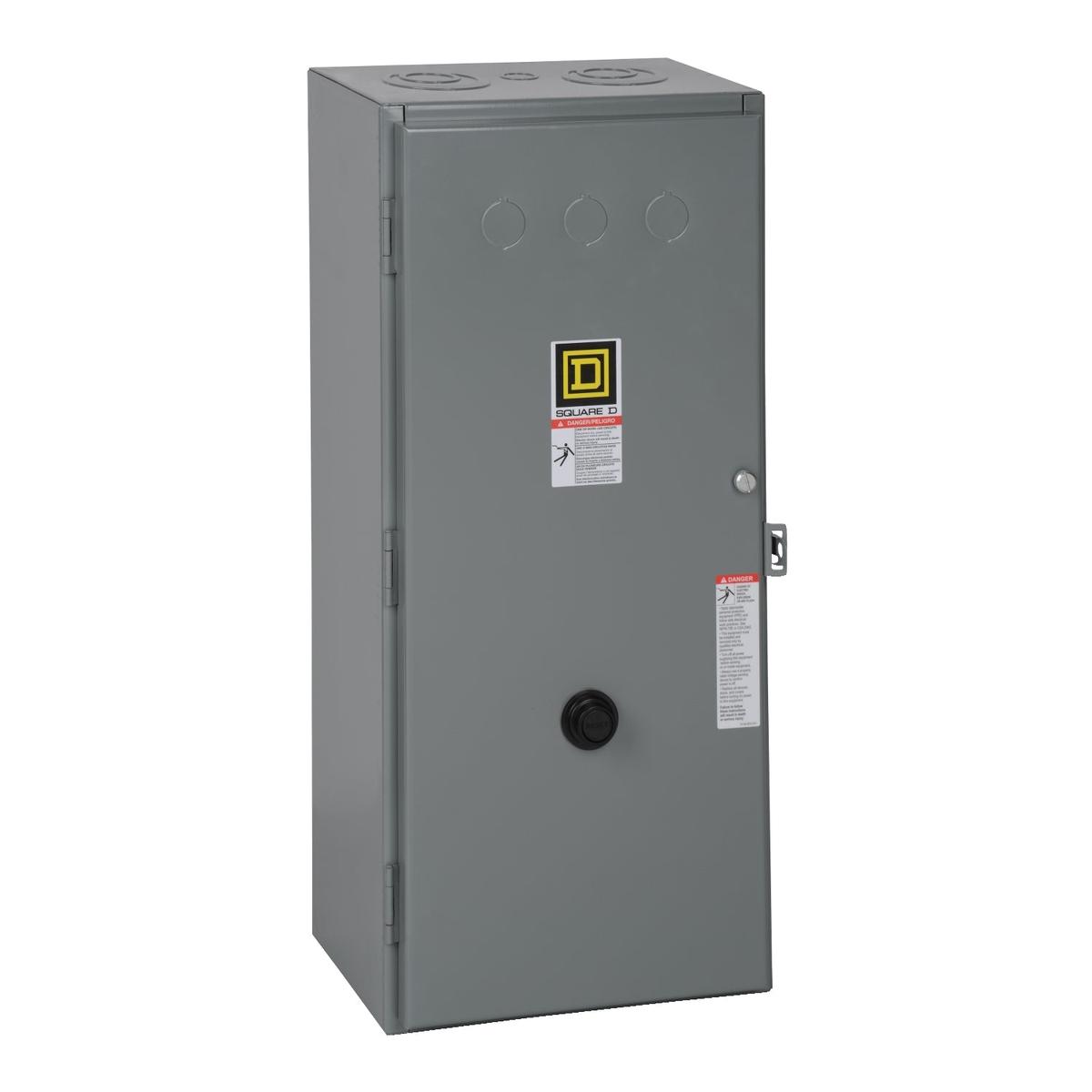

8536SFG1V06 – Square D 135A 3 Pole NEMA Size 4 Motor Starter 480V Coil Non-Reversing

8536SFG1V06

8536SFG1V06 is a Square D Class 8536 motor starter designed for 3 phase motor control applications with a 135 amp rating and 480V coil voltage.This non-reversing motor starter features a NEMA Size 4 frame and is rated for full voltage operation. It supports horsepower ratings of 40 HP at 208V, 50 HP at 240V, and 100 HP at 480V across three poles. The starter includes a 440V coil at 50Hz and 480V coil at 60Hz, suitable for industrial motor control circuits requiring reliable and robust performance.

Key Specifications
• Amperage: 135 Amps
• Voltage: 480V Coil Voltage
• Poles: 3 Pole
• Mounting Type: NEMA Size 4
• Interrupt Rating: 10,000 AIC (SCCR)
• Series/Frame: Class 8536, Size 4
• Trip Unit: Non-Reversing, Full Voltage
• Horsepower Ratings: 40 HP @ 208V, 50 HP @ 240V, 100 HP @ 480V
• Enclosure Rating: NEMA 1
• Phase: 3 Phase
• Coil Frequency: 50/60 Hz
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SFG1V06
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SFG
• Voltage : 6
• Amperage : 135
• Phase : 3
• Horse Power : HP @ 3 Phase – 208V 40 hp HP @ 3 Phase – 240V 50 hp HP @ 3 Phase – 480V 100 hp
• Configuration : Nonreversing
• Aux Contacts : No Auxiliary Contacts
• Coil Voltage Maximum : 480 VAC
• Coil Voltage Minimum : 440
• Nema Starter Size : 4

Product Data

• UPC : 785901832225
• GTIN : 00785901832225
• Country of Origin : Mexico
• Dimensions : 11.25 in x 25.16 in
• Weight : 19.9
• Certification : CSA, UL Listed
