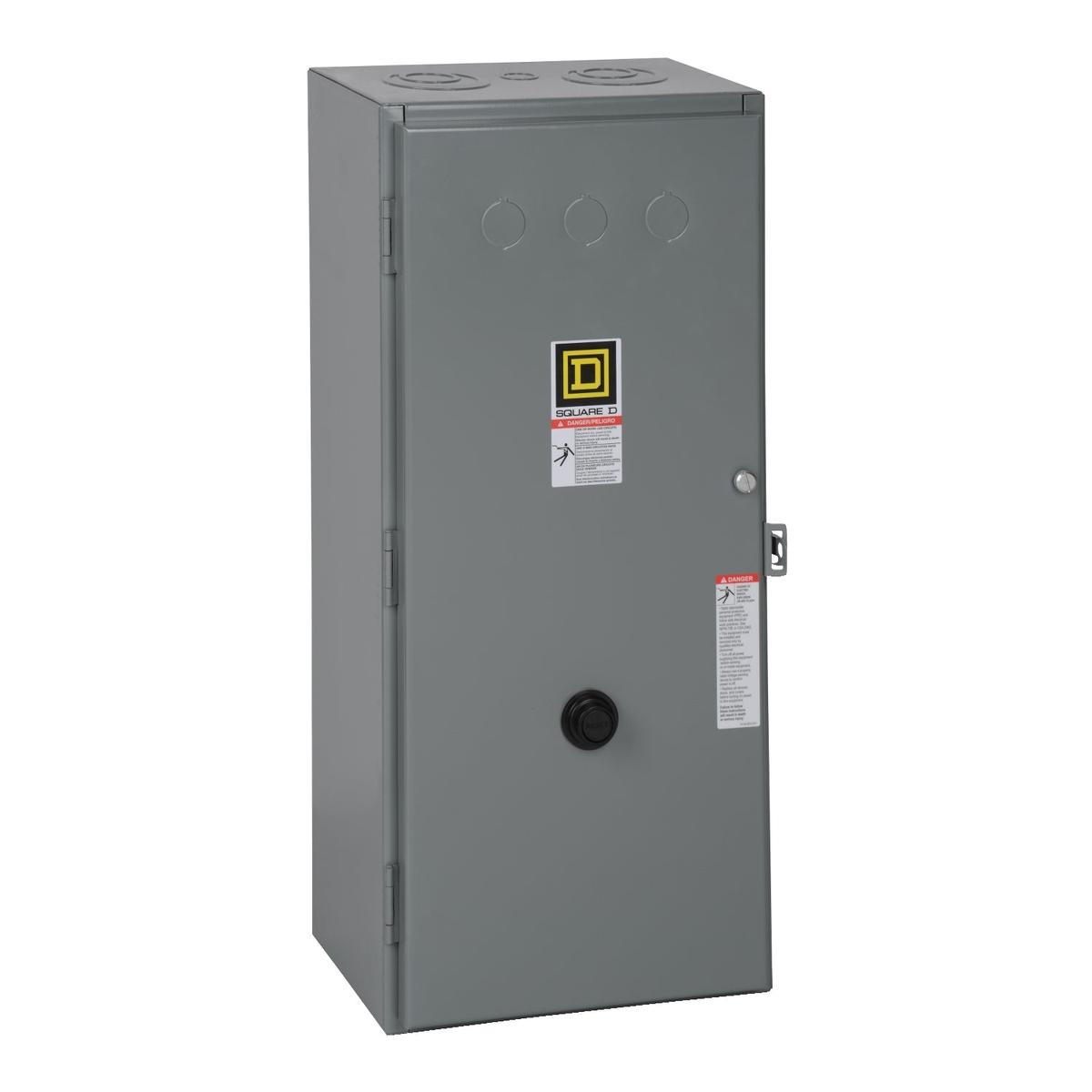

8536SFG1V03 – Square D Class 8536 135A 3 Pole 3 Phase Motor Starter NEMA 1

8536SFG1V03

8536SFG1V03 is a Square D Class 8536 motor starter designed for reliable 3 phase motor control applications. This non-reversing starter features a 135A rated current, 3 pole configuration, and a 220V coil for efficient operation. Engineered for industrial environments, the 8536SFG1V03 offers robust performance with a NEMA 1 enclosure and a 10 kA SCCR (Short Circuit Current Rating). It is suitable for full voltage starting and is compatible with a wide range of motor loads.

• Part Number: 8536SFG1V03
• Manufacturer: Square D
• Series/Frame: Class 8536
• Rated Current: 135A
• Number of Poles: 3
• Number of Phases: 3 Phase
• Maximum Voltage Rating: 600V AC
• Mounting Type: NEMA 1 Enclosure
• Interrupt Rating: 10 kA SCCR
• Starter Type: Non-reversing
• Coil Voltage: 220V
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SFG1V03
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Class 8536
• Type : SFG
• Voltage : 6
• Amperage : 135
• Phase : 3
• Poles : 3
• Configuration : Nonreversing
• Coil Voltage Maximum : 240
• Coil Voltage Minimum : 220

Product Data

• UPC : 785901832218
• GTIN : 00785901832218
• Dimensions : Width 11.25 in (285.75 mm) x Depth 9.00 in (228.60 mm)
• Weight : 20.02
