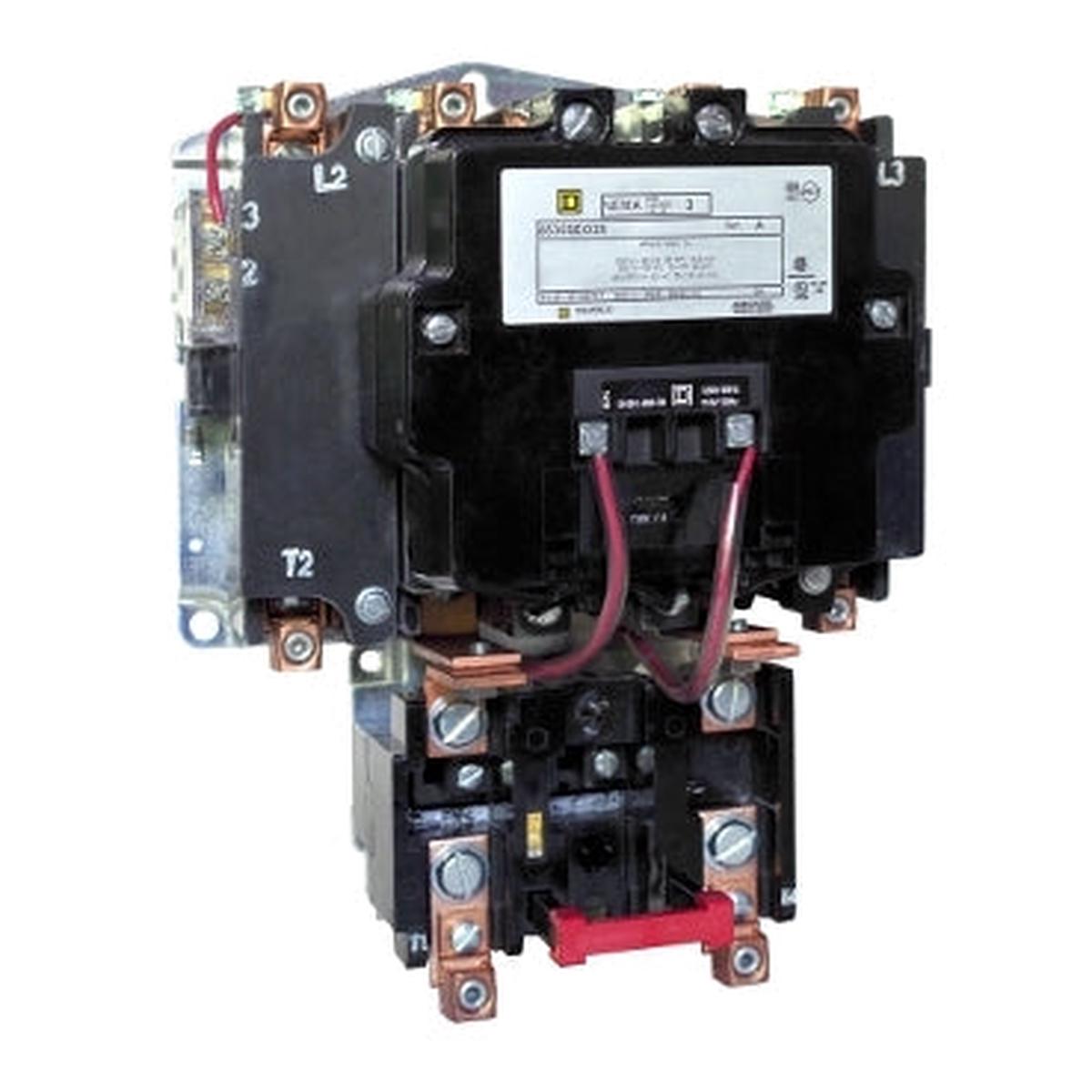

8536SEO6V02 – Schneider Electric NEMA Motor Starter Type S 90A 600VAC 1-Phase 2-Pole Melting Alloy Coil Open Frame

8536SEO6V02

8536SEO6V02 is a Schneider Electric NEMA Motor Starter, Type S, designed for nonreversing motor control applications with a 90 amp rating.This motor starter features a 1-phase, 2-pole configuration with a melting alloy overload type and is rated for 600 VAC operation. It supports 15 HP at 230 VAC and 7.5 HP at 115 VAC, with a 5 kA interrupt rating for circuit breakers and fuses. The coil voltage is 120 VAC, and the starter is open frame mounted.

Key Specifications
• Amperage: 90 A
• Voltage: 600 VAC maximum
• Poles: 2
• Phase: 1-phase
• Mounting Type: Open frame
• Interrupt Rating: 5 kA at 600 VAC
• Horsepower: 15 HP at 230 VAC, 7.5 HP at 115 VAC
• Overload Type: Melting alloy
• Coil Voltage: 120 VAC
• Series/Frame: Type S
• Nonreversing starter

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8536SEO6V02
• Manufacturer : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Starter
• Configuration : Nonreversing

Product Data

• Dimensions : Width 5.47 in (138.94 mm) x Depth 6.50 in (165.10 mm)
• Weight : 17
